LC-26AF3 M/H/X
LC-32AF3 M/H/X
LC-37AF3 M/H/X
28

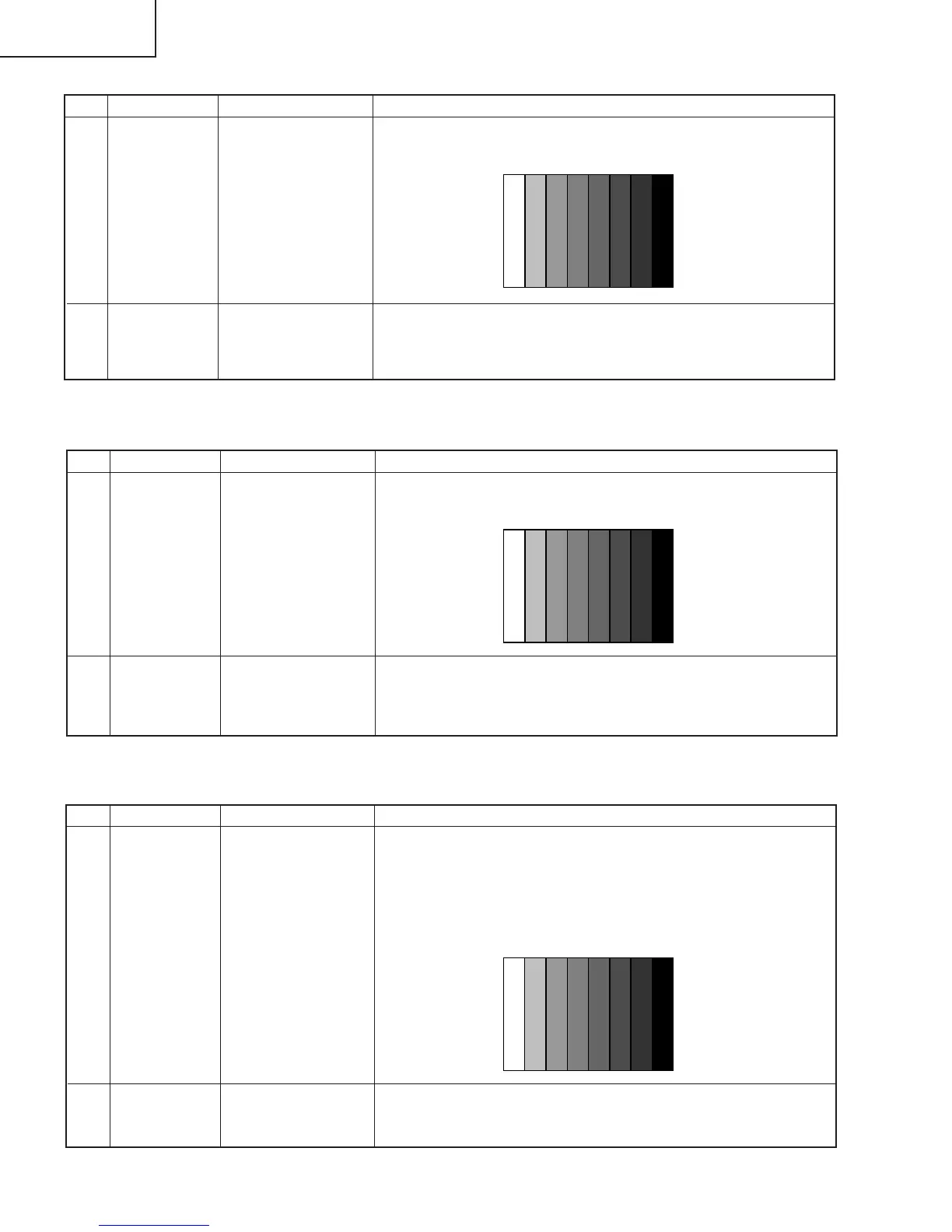

(7) ADC adjustment (Component 15K)
(8) ADC adjustment (Component 33K)
(9) HDMI signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
COMP_15K, 60Hz_
100%_Full-Field_Colour_
Bar signal
[Terminal]
INPUT-1 COMPONENT
IN
2 Auto adjustment Page 4/12
performance
» Feed the COMPPNENT 15K_100%_Full-field_Colour_bar signal (100%
colour saturation) to INPUT-1 COMPONENT IN.
Bring the cursor on [ËCOMP15K ADJ] and press [OK].
[ËCOMP15K ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
COMP_33K_
60Hz_100%_Full-
field_Colour_bar signal
[Terminal]
INPUT-1 COMPONENT
IN
2 Auto adjustment Page 5/12
performance
» Feed the COMPONENT 33K_100%_Full-field_Colour_bar signal
(100% colour saturation) to INPUT-1 COMPONENT IN.
Bring the cursor on [ËHDTV ADJ] and press [OK].
[ËHDTV ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment Recommended signal
generator:
Leader Electronics-
made LT448
[Terminal]
HDMI IN
2 Auto adjustment Page 6/12
» Set the output signal to 1080i/59.94(30sF) RGB digital output.
» Set the signal to the Full-Colour-bar (100% saturation).
» 8 bars including the rightmost black bar; Dynamic range: min 16/max
235
» Feed the signal to HDMI IN from the signal generator’s DVI terminal
through the DVI-HDMI conversion cable.
Bring the cursor on [ËHDMI ADJ] and press [OK].
[ËHDMI ADJ OK] appears when finished.
