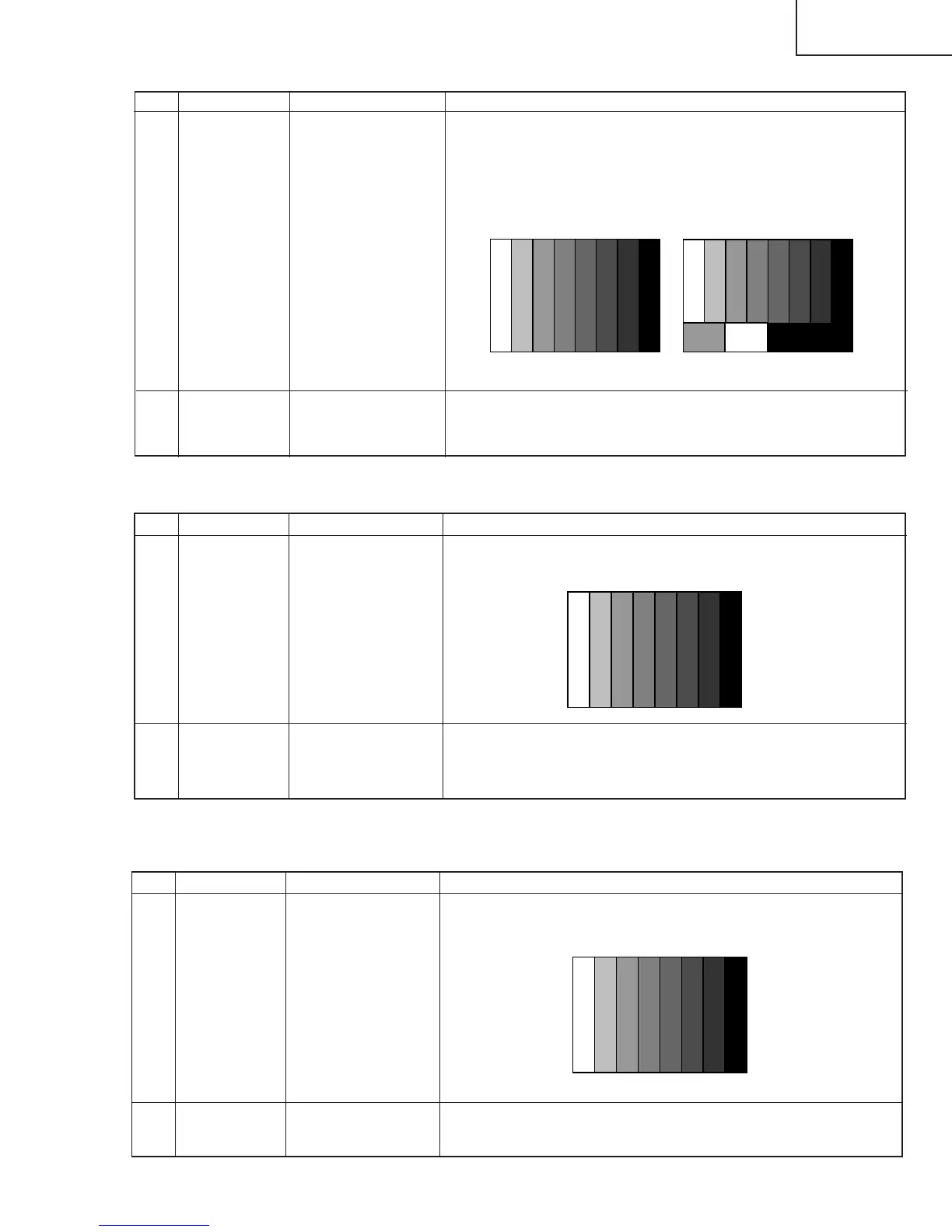

Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
» PAL_Full_Field_
Colour_Bar_RF signal
» PAL_Split_Colour_
Bar E-12ch, RF signal
[Terminal]
» INPUT-1
VIDEO IN
» TUNER_RF
2 Auto adjustment Page 3/12
performance
» Feed the PAL_Full-field_Colour_bar signal (75% colour saturation) to
INPUT-1 VIDEO IN.
» Feed the RF signal (E-12ch) to TUNER.
» Make sure the PAL_Colour-bar (E-12ch) has the sync level of 7:3 with
the picture level.
Bring the cursor on [ËPAL + TUNER ADJ] and press [OK].
[ËPAL + TUNER ADJ OK]
appears when finished.
(4) PAL signal & tuner adjustment
[E-12CH]
↑100% white
↑100% white
[VIDEO IN SIGNAL]
(5) SECAM signal adjustment
(6) N358 signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
» SECAM_Full-
field_Colour_bar signal
[Terminal]
INPUT-1
VIDEO IN
2 Auto adjustment Page 3/12
performance
» Feed the SECAM_Full-field_Colour_bar signal (75% colour saturation)
to INPUT-1 VIDEO IN.
Bring the cursor on [ËSECAM ADJ] and press [OK].
[ËSECAM ADJ OK] appears when finished.
100% white
↑
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
N358_
Full-Field_Colour_Bar
[Terminal]
INPUT-1
VIDEO IN
2 Auto adjustment Page 3/12
performance
» Feed the N358_Full-field_Colour_bar signal (75% colour saturation) to
INPUT-1 VIDEO IN.
Bring the cursor on [ËN358 ADJ] and press [OK].
[ËN358 ADJ OK] appears when finished.
100% white
↑
