16. Remove the 4 lock screws p from the 26" LCD Panel Unit, and detach the 26" LCD Panel Unit.
17. Detach the sheet spacer 1 and sheet spacer 2.
18. Detach the Diffusion and Reflection/Deflection Sheets and Diffusion Panel.
19. Remove the 6 lock screws a from the Lamp Holder (top), and detach the Lamp Holer (top).
20. Remove the Fluorescent Lamps.
20
21
21

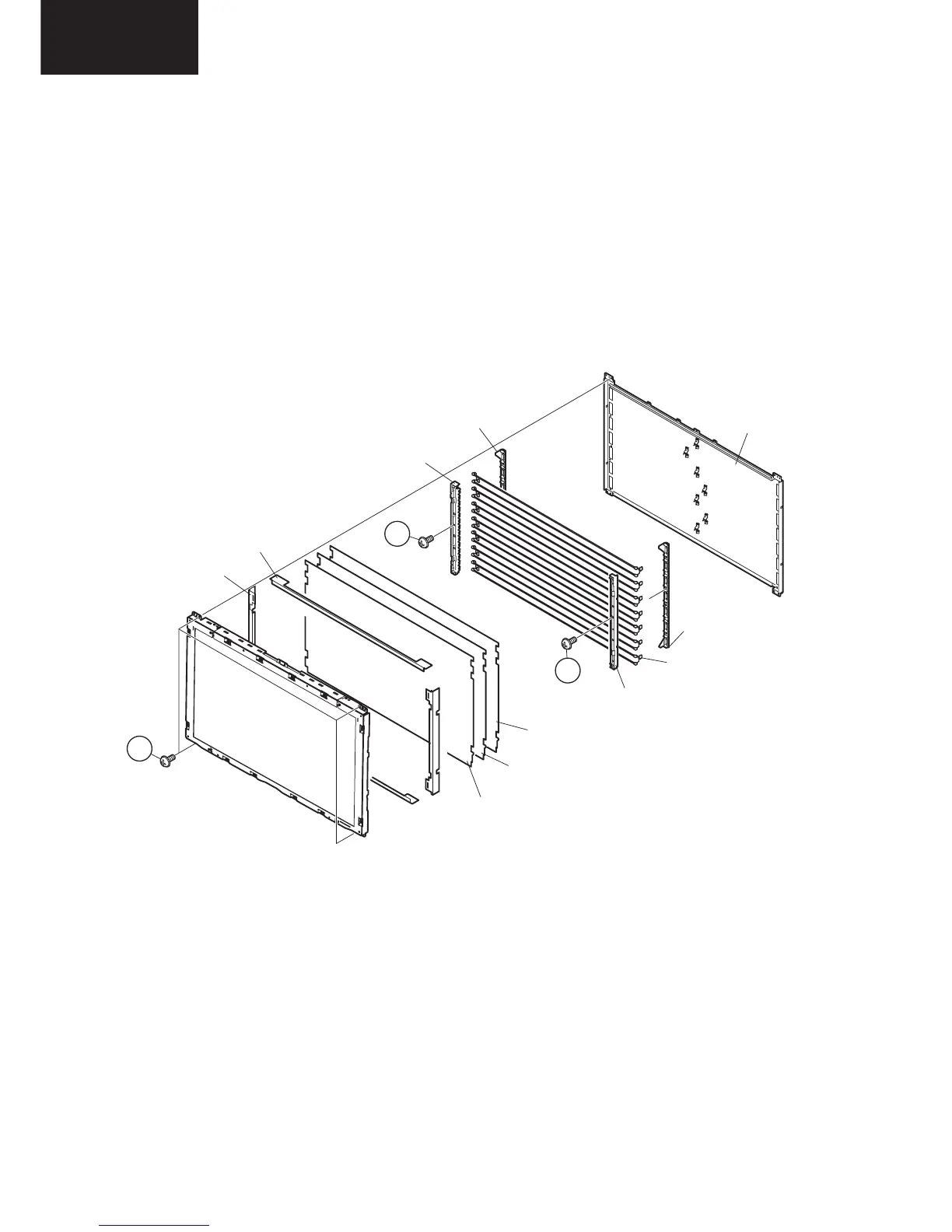

26" LCD Panel Unit
Sheet Spacer-B
(PSPAZA535WJZZ)
Sheet Spacer-S
(PSPAZA536WJZZ)
Diffusion Panel
(PCOVUA026WJZZ)
Reflection/Deflection Sheet
(PSHEPA236WJZZ)
Diffusion Sheet
(PSHEPA166WJZZ)
Lamp Holder (Top)
Lamp Holder (Bottom)
Lamp Holder (Top)
(LHLDZA443WJKZ)
Lamp Holder (Bottom)
(LHLDZA444WJKZ)
Back Shield
Fluorescent Lamp
(KLMP-A042WJZZ)
