16. Remove the 4 lock screws p from the 32" LCD Panel Unit, and detach the 32" LCD Panel Unit.
17. Detach the sheet spacer 1 and sheet spacer 2.
18. Detach the Diffusion and Reflection/Deflection Sheets and Diffusion Panel.
19. Remove the 6 lock screws a from the Lamp Holder (top) Ass'y, and detach the Lamp Holer (top) Ass'y.
20. Remove the Fluorescent Lamps.
20
21
21

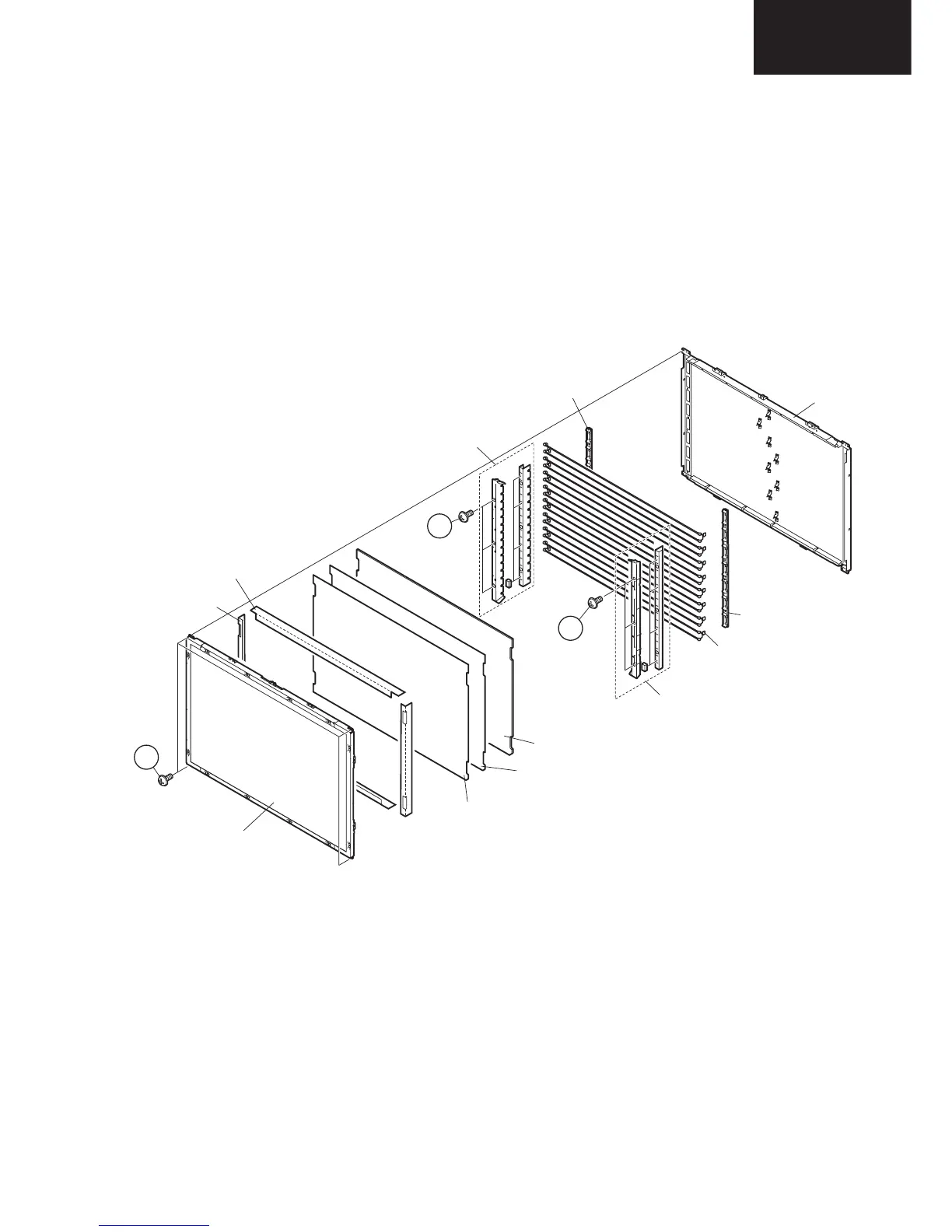

Sheet Spacer-S
(PSPAKA088WJZZ)
Sheet Spacer-L
(PSPAKA089WJZZ)
32" LCD Panel Unit
Diffusion Panel
(PCOVUA052WJZZ)
Reflection/Deflection Sheet
(PSHEPA244WJZZ)
Diffusion Sheet
(PSHEPA256WJZZ)
Lamp Holder(Top) Ass'y
(CHLDZA446WJ01)
Fluorescent Lamp
(KLMP-A040WJZZ)
Lamp Holder(Top) Ass'y
Lamp Holder (Bottom)
(LHLDZA309WJK0)
Lamp Holder (Bottom)
Back Shield
