27
LC-30HV4U
LC-30HV4D

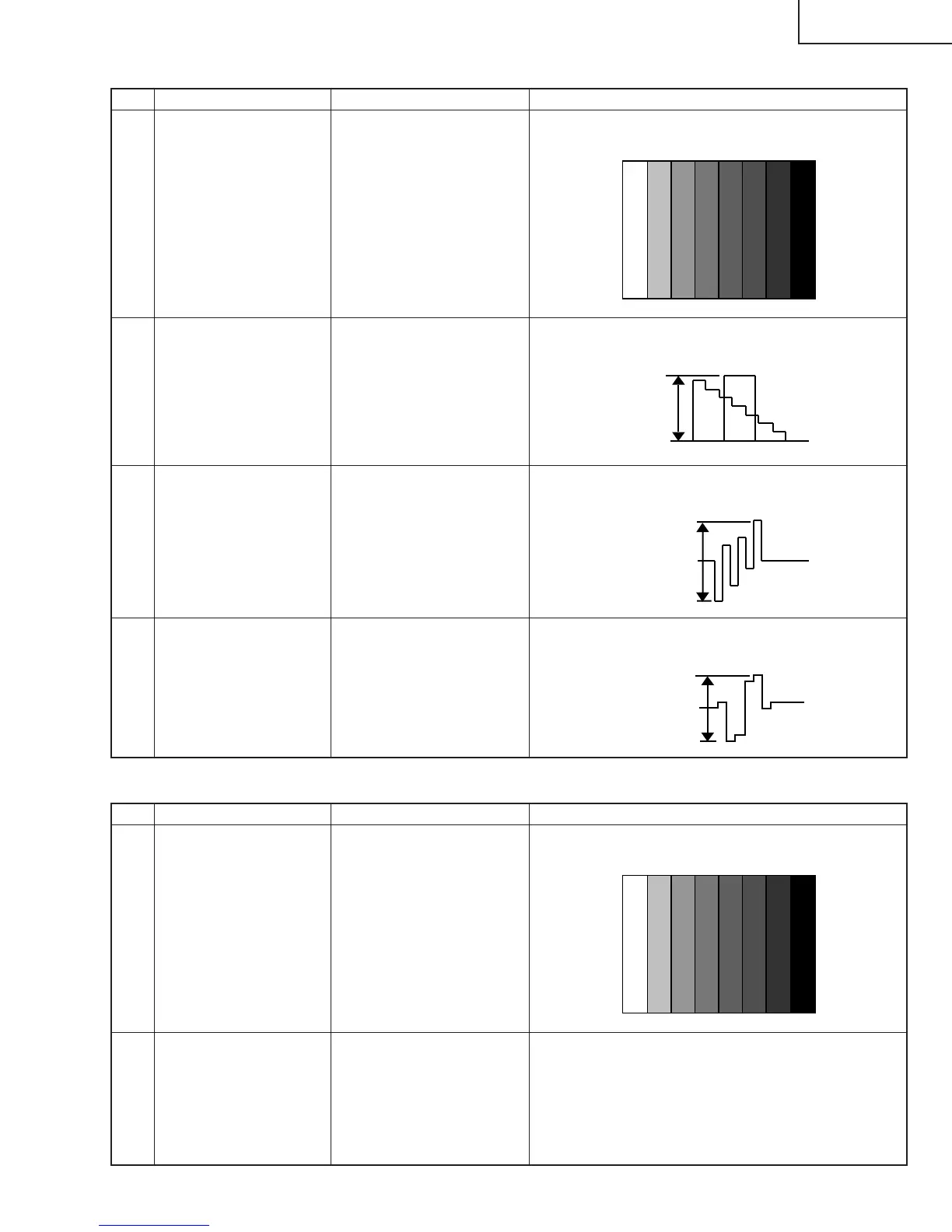

Item Adjusting conditions/points Adjusting procedure
1 Signal setting Signal: Provide the 100% color bar source of component 15k
N358 TINT Component 15k to the component input pin of video input 1.
100% color bar
Signal pin:
INPUT1 COMPONENT
2 MAIN COMPONENT Page: 5 Adjust "COMP 15K Y CONTRAST" so that
15 kHz Y CONTRAST Location: Pin (1) of P801 0.70 ± 0.01 Vp-p is achieved at pin (1) of P801.
Adjustment
(4) Component 15 kHz signal adjustment
3 MAIN COMPONENT Page: 5 Adjust "COMP 15K COLOR GAIN" so that the width
15 kHz COLOR GAIN Location: Pin (3) of P801 shown below is 0.70 ± 0.01 Vp-p at pin (3) of P801.
Adjustment
4 MAIN COMPONENT Page: 5 Adjust "COMP 15K CR GAIN" so that the width
15 kHz Cr GAIN Location: Pin (5) of P801 shown below is 0.70 ± 0.01 Vp-p at pin (5) of P801.
Adjustment
Item Adjusting conditions/points Adjusting procedure
1 Signal setting Signal: Provide the component HDTV source of the 100%
Component HDTV color bar to the component pin of video input 1.
100% color bar
Signal pin:
INPUT1 COMPONENT
2 MAIN COMPONENT Page: 6 Adjust "COMP HDTV" so that the difference between
HDTV CONTRAST Location: Pin (9) of P801 the black and while peaks is 0.95 ± 0.02 Vp-p at pin
Adjustment (9) of P801.
(5) Component HDTV signal adjustment
To Next Page
