Sharp LC-30HV4U User Manual

93
LC-30HV4U
LC-30HV4D

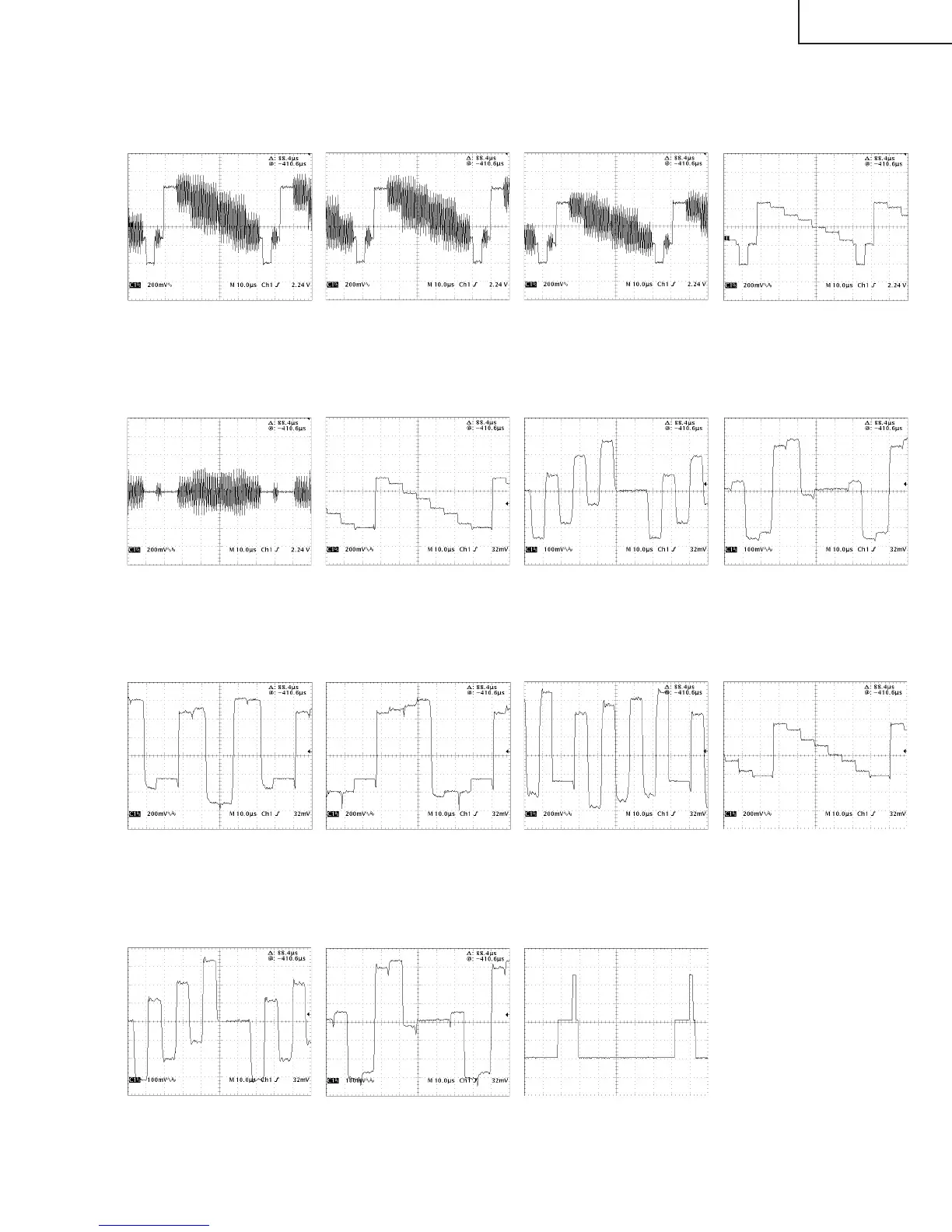

WAVEFORMS
1
TP1101 (Tuner-A Out)
V: 200mV/div H: 10µsec/div
2
TP1102 (Tuner-B Out)
V: 200mV/div H: 10µsec/div
3
TP7005 (3DYCIN)
V: 200mV/div H: 10µsec/div
4
TP7004 (3DYC Y-Out)
V: 200mV/div H: 10µsec/div
5
TP7003 (3DYC C-Out)
V: 200mV/div H: 10µsec/div
6
P801 (1) pin
(Chroma Y-Out)
V: 200mV/div H: 10µsec/div
7
P801 (3) pin
(Chroma Cb-Out)
V: 100mV/div H: 10µsec/div
8
P801 (5) pin
(Chroma Cr-Out)
V: 100mV/div H: 10µsec/div
9
TP816 (R-Out)
V: 200mV/div H: 10µsec/div
0
TP815 (G-Out)
V: 200mV/div H: 10µsec/div
q
TP814 (B-Out)
V: 200mV/div H: 10µsec/div
w
P801 (9) pin
(Sub Y-Out)
V: 200mV/div H: 10µsec/div
er
P801 (11) pin
V: 100mV/div H: 10µsec/div
P802 (23) pin
V: 100mV/div H: 10µsec/div
P803 (31) pin
V: 1V/div H: 10µsec/div
t
