18
LC-26GA5E
LC-32GA5E
LC-32GA8/LC-32BV8
LC-37GA8/LC-37BV8

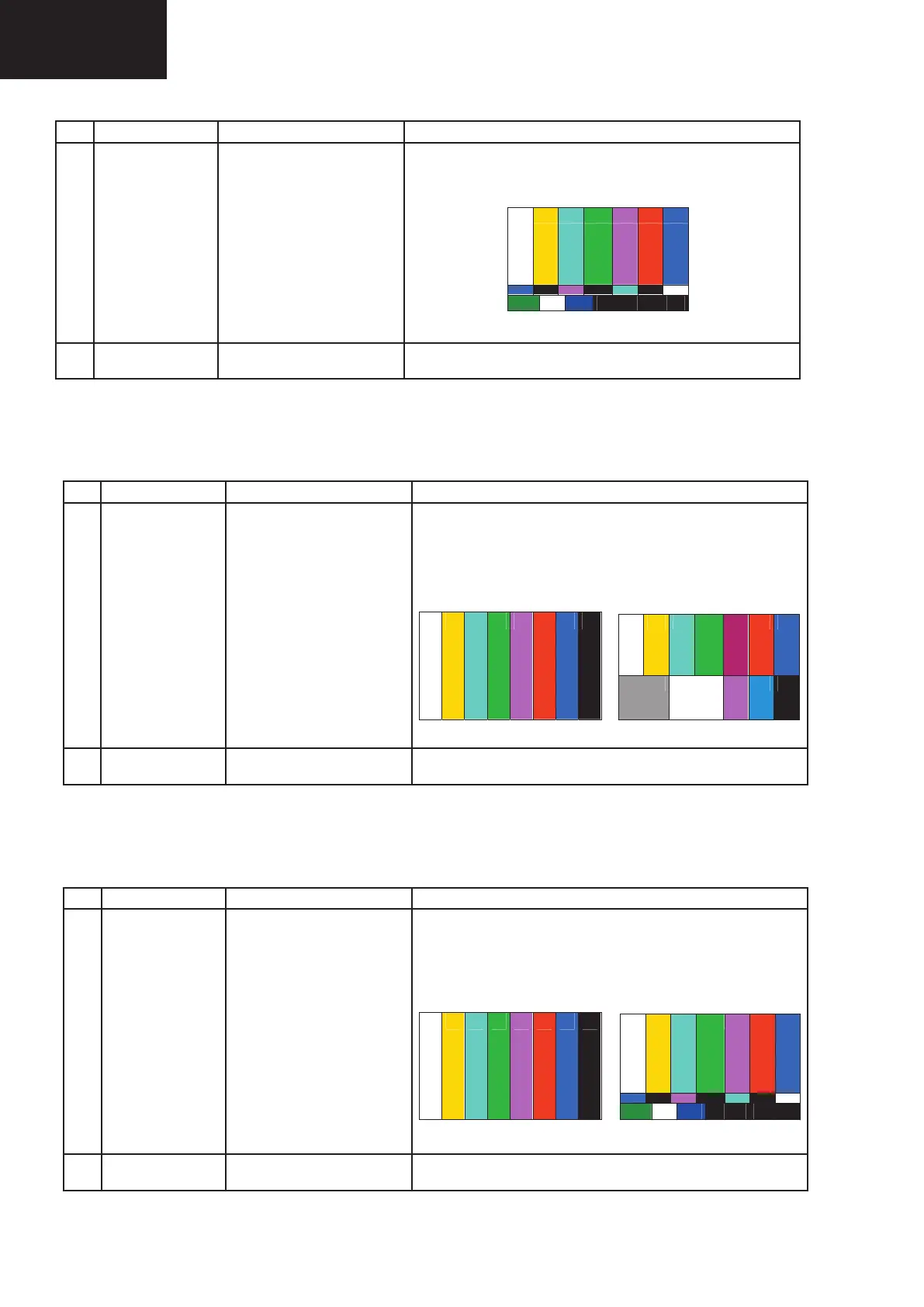

5.5. PAL Signal & Tuner Adjustment
5.4. RF AGC Adjustment (SMPTE RF SIGNAL- Alternative Method)
Adjustment Point Adjustment conditions Adjustment procedure
1 Setting [Signal]
PAL
SMPTE Field Color Bar
RF signal
[Terminal]
TUNER
• Feed the PAL SMPTE color bar signal (E-12ch) to TUNER.
Signal level:
50 ±1dB µV (75Ω LOAD)
2 Auto adjustment
performance
Adjustment process page 6. Bring the cursor on [▪RF AGC ADJ] and press [OK].
[▪RF AGC ADJ OK] appears when finished.
↑ 100% white
Adjustment Point Adjustment conditions Adjustment procedure
1 Setting [Signal]
PAL
FULL Field Color Bar
Composite or RF signal
[Terminal]
EXT3 VIDEO IN
TUNER
• Feed the PAL full field color bar signal (75% color saturation) to
EXT3 VIDEO IN.
• Feed the RF signal PAL color bar (E-12) to TUNER.
• Make sure the PAL color bar pattern (E-12) has the sync level of 7:3
with the picture level.
2 Auto adjustment
performance
Adjustment process page 3. Bring the cursor on [▪PAL +TUNER ADJ] and press [OK].
[▪PAL+ TUNER ADJ OK] appears when finished.
↑ 100% white
�����������������������������
↑ 100% white
5.6. PAL Signal & Tuner Adjustment (SMPTE RF SIGNAL-Alternative Method)
Adjustment Point Adjustment conditions Adjustment procedure
1 Setting [Signal]
PAL
FULL Field Color Bar
Composite or
RF SMPTE signal
[Terminal]
EXT3 VIDEO IN
TUNER
• Feed the PAL full field color bar signal (75% color saturation) to
EXT3 VIDEO IN.
• Feed the RF signal SMPTE color bar (E-12) to TUNER.
• Make sure the SMPTE color bar pattern (E-12) has the sync level of
7:3 with the picture level.
2 Auto adjustment
performance
Adjustment process page 6. Bring the cursor on [▪PAL +TUNER ADJ] and press [OK].
[▪PAL+ TUNER ADJ OK] appears when finished.
↑ 100% white
↑ 100% white
[EXT 3]
[TUNER]
[EXT 3]
[TUNER]
[TUNER]
To Next Page
