11. Remove the connectors,(P5703,P3103,P1105,P1801,P1802,P2501,P3805,P3101,P3201,P3202,P8801,P8901,
P9601,CN1,CN2,CN801,CN802,CN803,CN804,CN805,CN7502,CN7501,and CN7601) Remove the 1 Coaxial
Cable.

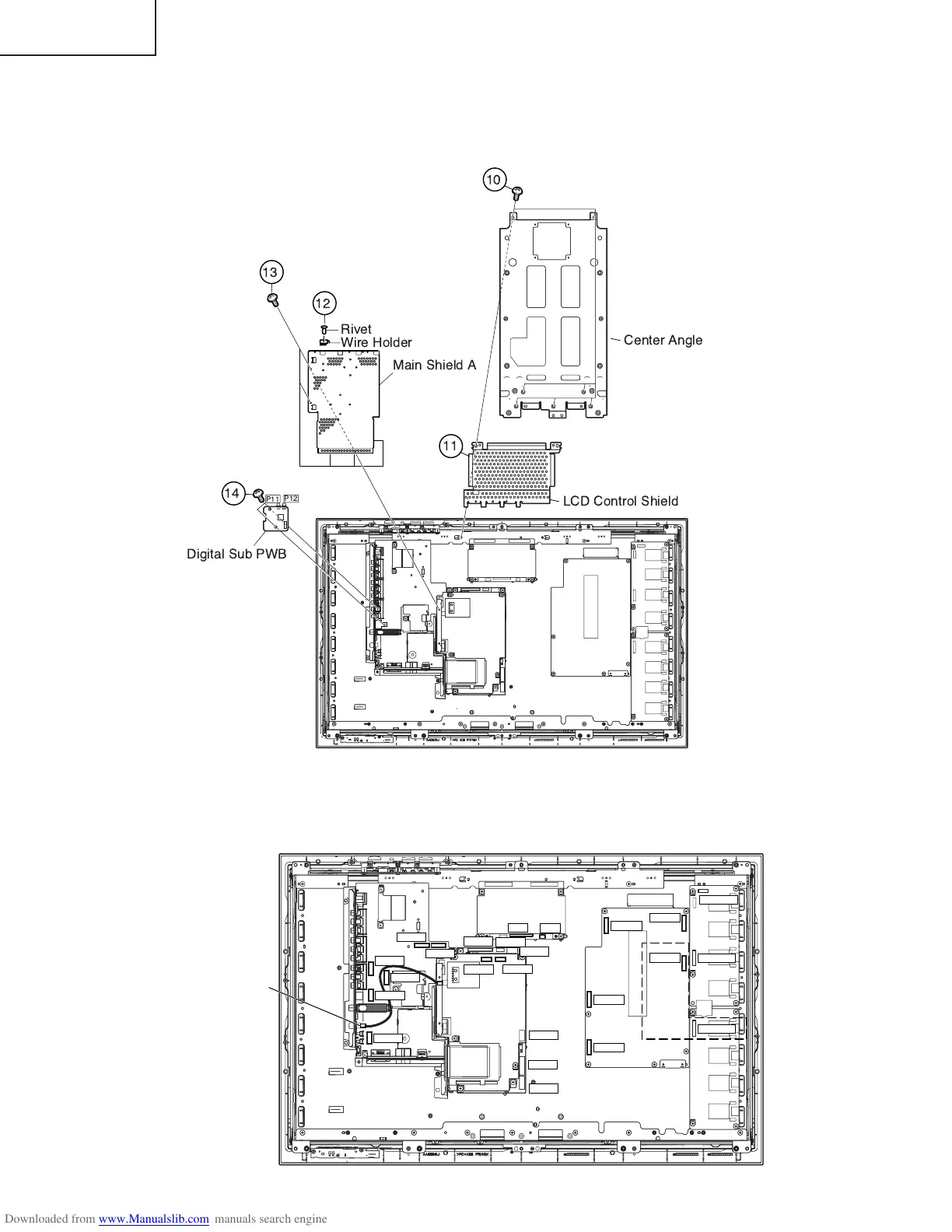

7. Remove the 7 lock screws 0 and detach the Center Angle.
8. Detach the LCD Control Shield q.
9. Remove the 1 Rivet w from the Main Shield A and detach the Wire Holder.
Remove the 5 lock screws e and detach the Main Shield A.
10. Remove the connectors,(P11/P12). Remove the 2 lock screws r and detach the Digital Sub PWB.
P3101
P1105
P5703
CN803
CN801
CN802
CN804
CN805
P3103
P8901
P8801
P3202
P3203
P9601
P3201
P1801
P1802
CN1
CN2
CN7501
CN7601
CN7502
P3805
Coaxial Cable
P2501
LCD Control Shield
Main Shield A
Rivet
Wire Holder
10
11
Center Angle
12
13
Digital Sub PWB
14
P11
P12
To Next Page
