15
LC-32HT1U

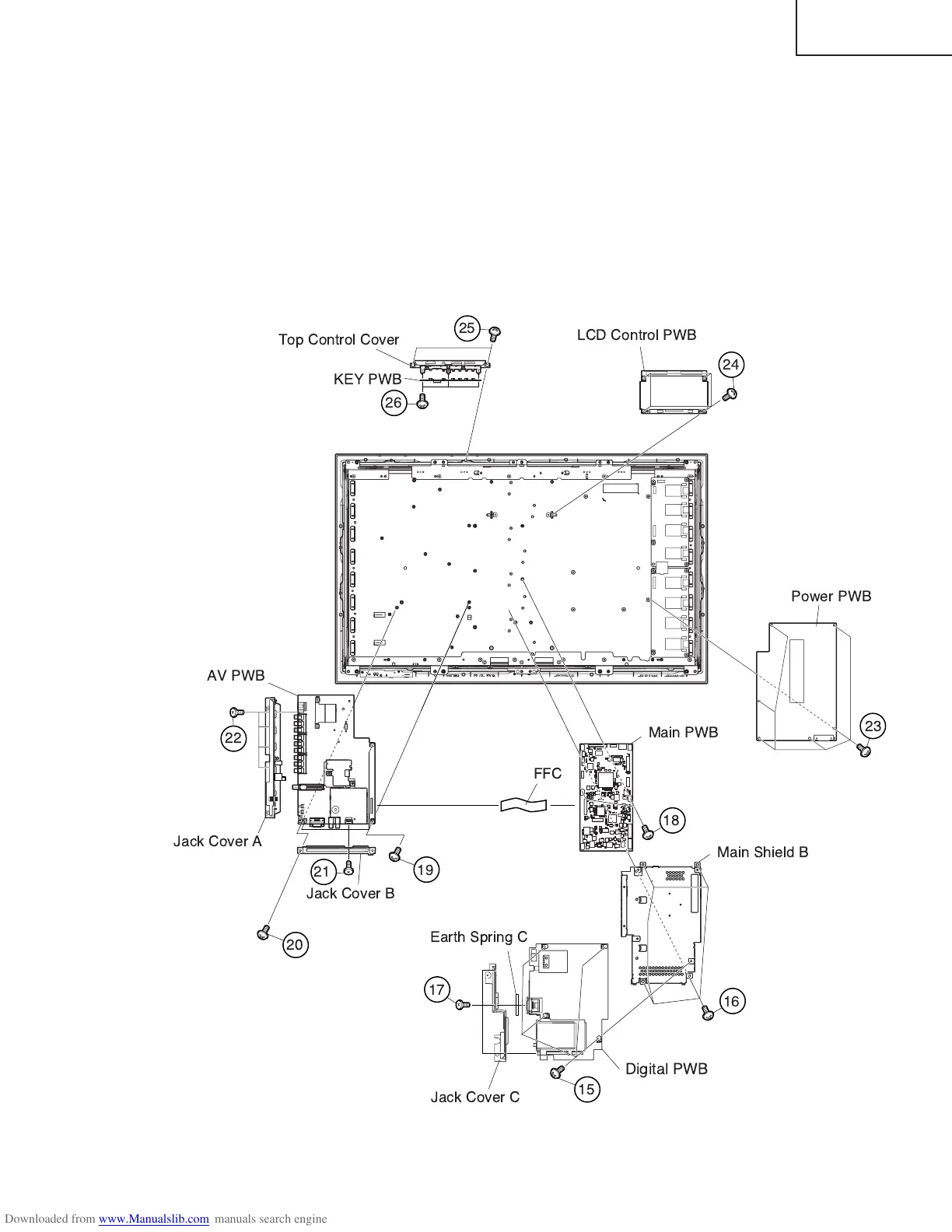

12. Remove the 4 lock screws t and detach the Digital PWB.
13. Remove the 4 lock screws y and FFC. Detach the Main Shield B.
14. Remove the 3 lock screws u and detach the Jack Cover C, and Earth Spring C.
15. Remove the 2 lock screws i and detach the Main PWB.
16. Remove the 3 lock screws o and the 1 lock screw p, and detach the AV PWB. Remove 1 lock screw a and
detach the Jack Cover B. Remove the 4 lock screws s and detach the Jack Cover A.
17. Remove the 6 lock screws d and detach the Power PWB.
18. Remove the 4 lock screws f and detach the LCD Control PWB.
19. Remove the KEY PWB.
19-1. Remove the 2 lock screws g from the Top Control Cover.
19-2. Remove the 3 lock screws h from the KEY PWB.
!
!
" #$
!
%
&
'"(
)# !
$
*
To Next Page
