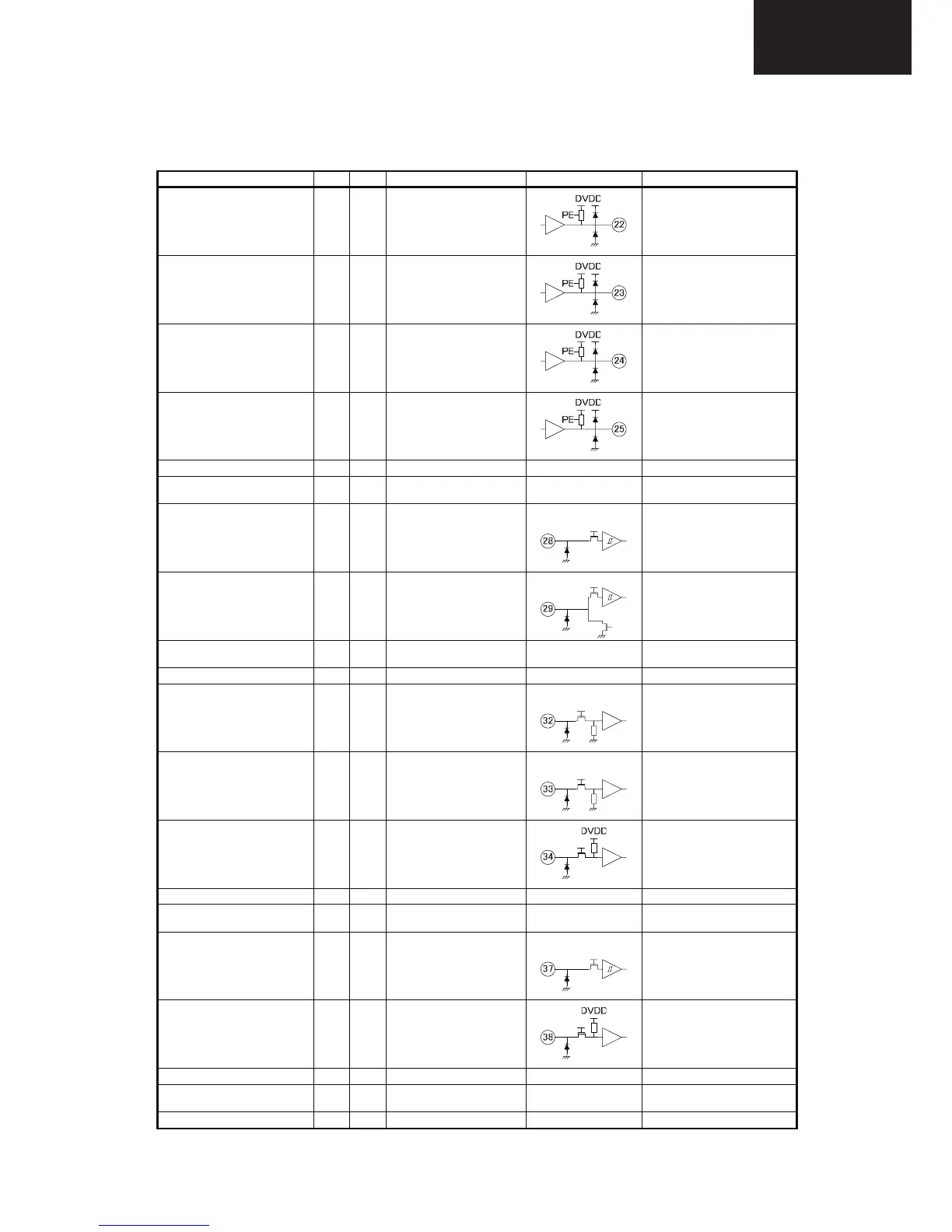

CXD2820R
Name No. I/O Function Equivalent Circuit Note
TSDATA4 22 O TS data output
Controllable pull-up
Selectable output current
TSDATA5 23 O TS data output
Controllable pull-up
Selectable output current
TSDATA6 24 O TS data output
Controllable pull-up
Selectable output current
TSDATA7 25 O TS data output
Controllable pull-up
Selectable output current
VSS 26
㧙
Digital Ground n/a
DVDD 27
㧙
3.3V digital power
supply
n/a
SCL 28 I I
2
C clock
5V tolerant
SDA 29 I/O I
2
C data
5V tolerant
CVDD 30
㧙
1.2V digital power
supply
n/a
VSS 31
㧙
Digital Ground n/a
TESTMODE 32 I Test mode setting
5V tolerant
1: Test mode
0: Normal mode
A0 33 I
I
2
C slave address
selection
5V tolerant
OSCENBN 34 I Oscillator enable
5V tolerant
1: Stop
0: Run
VSS 35
㧙
Digital Ground n/a
CVDD 36
㧙
1.2V digital power
supply
n/a
RESETN 37 I Hardware reset
5V tolerant
OSCMODE 38 I
3rd overtone crystal
selection
5V tolerant
1: fundamental
0: 3rd overtone
MVSS 39
㧙
Digital Ground n/a
MVDD 40
㧙
1.2V digital power
supply
n/a Supplies memory power
MVDD 41
㧙
1.2V digital power n/a Supplies memory power
57
LC-32LE340/343
LC-40LE340/343
