Sharp LC-32LE40E - Chapter 2. Removing of Major Parts [1] Assy;Panel Removal

LC-32LE40E-LC-42LE40E
12
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] ASSY/PANEL REMOVAL
LC-32LE40E
Note: Put the TV face down on a safe surface that is covered by a soft and smooth cloth to avoid damaging LCD Panel.

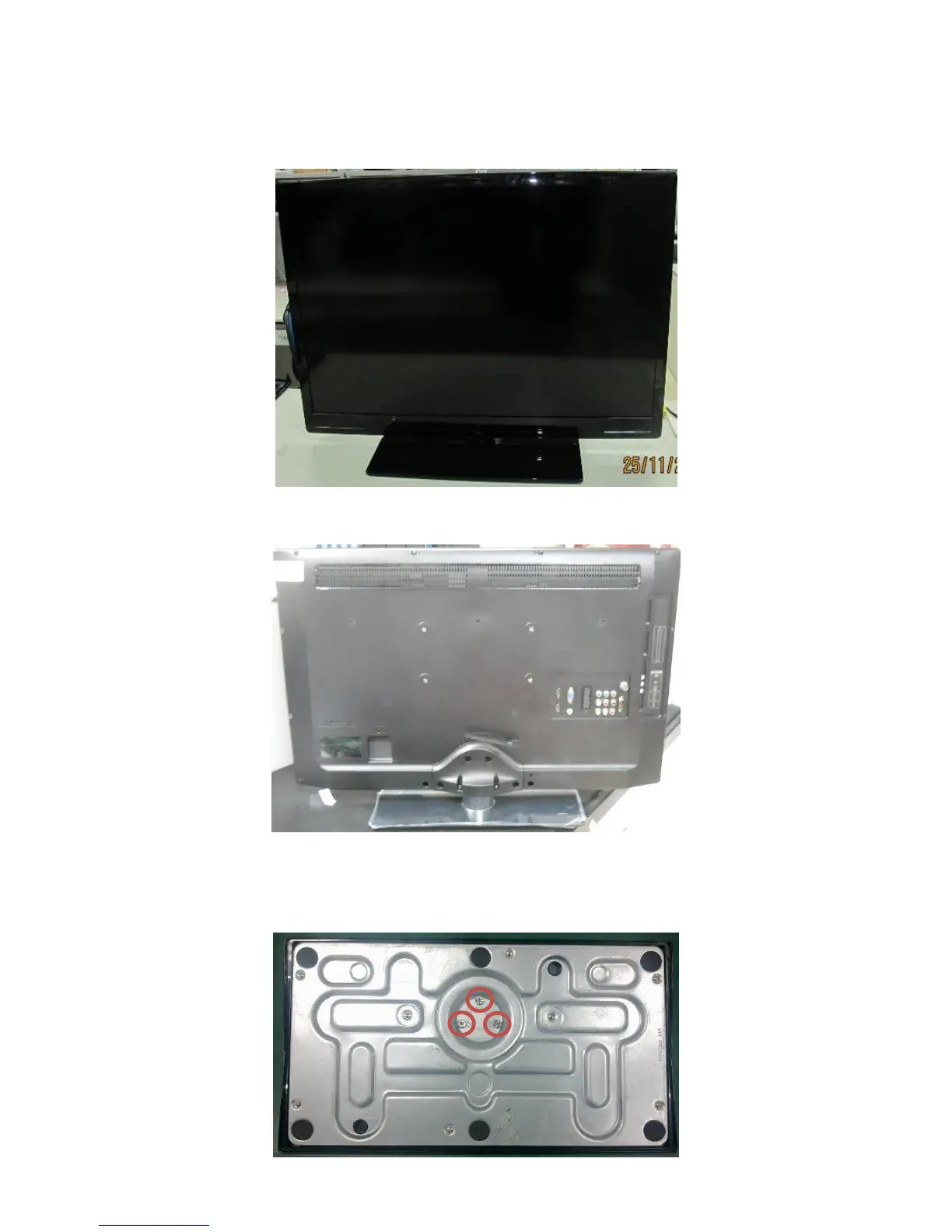

Front View
Fig 1
Back View
Fig 2
Step 1. Remove the base.
A. Remove 3 screws as fig 3 and put out the base.
Fig 3
