LC-32LE40E-LC-42LE40E
16

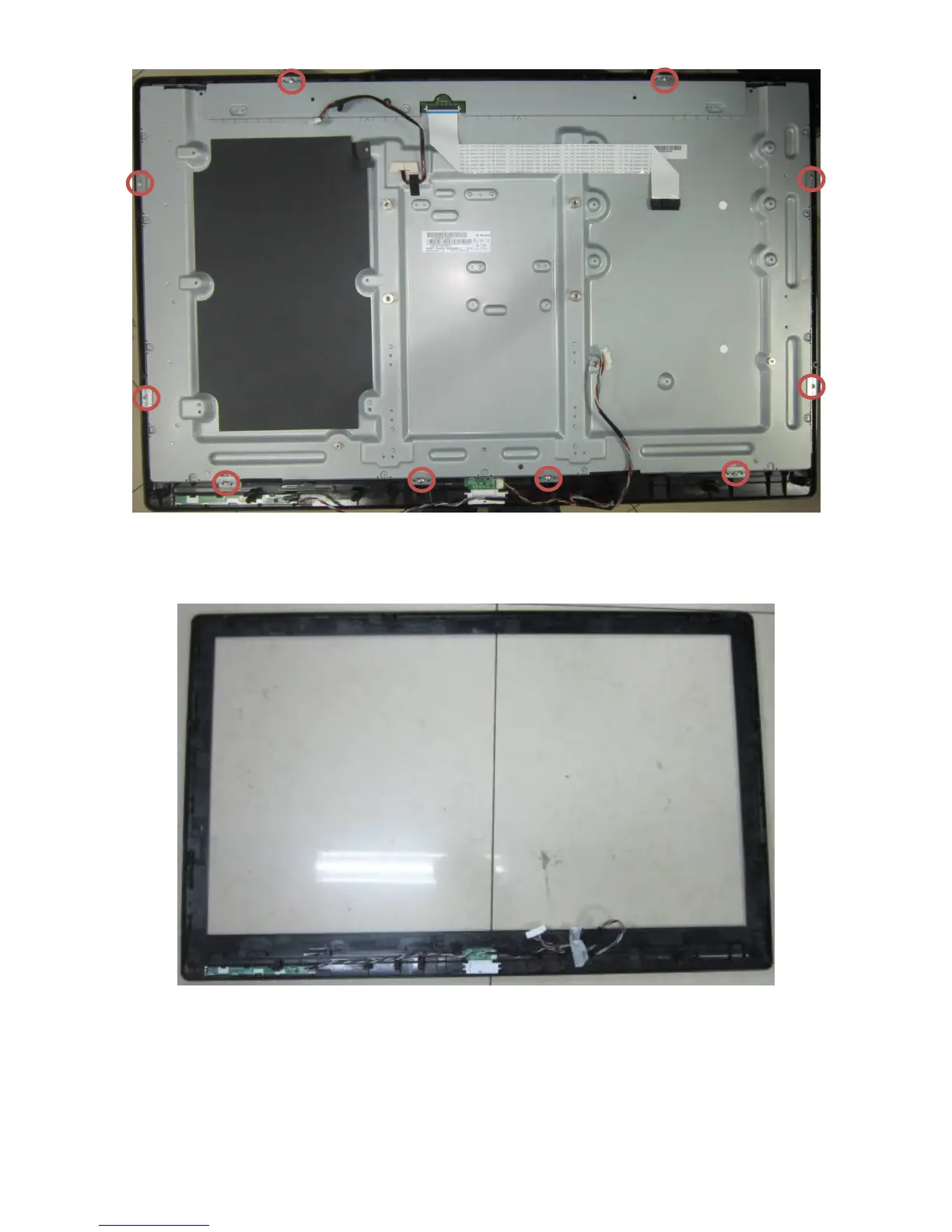

Step 7. Remove the bkt_panel and separate the panel and bezel.
Remove 10 screws as Fig 11
Fig 11
Step 8. Bezel assy.
The bezel assy as Fig 12
Fig 12
