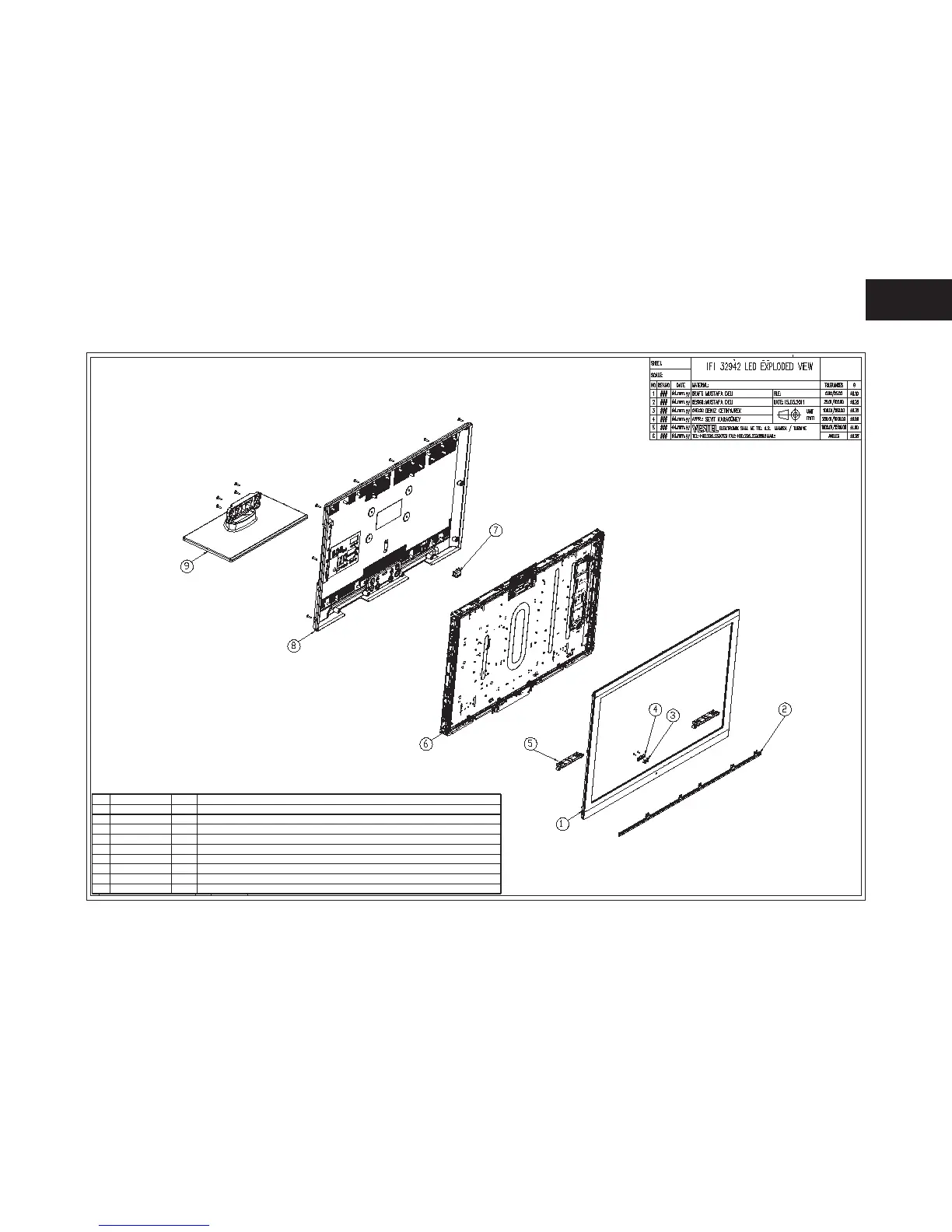

MECHANICAL PARTS LISTING LC-32LE510E
HS_0V(I/SBA-CP-MAETS(DEL 24923 TNORF
)0V(I-CP( DEL 24923 CITEMSOC SNEL
.6REV )YKLIM 3%( 658XX TFT SNEL RI DEL
RG/DER)PRAHS(53/52(08862-7-89DL71.YSA.DM
HS(LB(02X701X
03(06BM(DEL 03923.SA.KPS
LP 1VDS-NUE023CL GL DELE ZH05DHF23 TFT
AHS(0V)I(HC&LK/OW OR&06BM DEL 24923.CB
GKP(PRAHS_KCALB-YSSOLG(24923 YSSA TOOF
)PRAHS_24922_06BM(.SA.WS.COR
26056502
48464004
42434004
00456502
62817003
1712
6502
36056502
71496502
Nº VESTEL CODE QTY DESCRIPTION
1 20565062 1 FRONT 32942 LED(STEAM-PC-ABS/I(V0_SH) ( FRONT CABINET LC-32LE510)
2 40046484 1 LENS COSMETIC 32942 LED (PC-I(V0)
3 40043424 1 LED IR LENS TFT XX856 (%3 MILKY) VER6.
4 20565400 1 MD.ASY.17LD98-7-37-42880(25/35(SHARP)RED/GR) (I/R & Led Board with cable LC-32LE510)
5 20565121 2 SPK.AS.32930 LED(MB60(30X107X20(BL(SH) ( SPEAKERS )
6 30071826 1 TFT 32FHD50HZ ELED LG LC320EUN-SDV1 PL (PANEL LC-32LE510)
7 20569417 1 ROC.SW.AS.(MB60_22942_SHARP)(Rocker Swith Cable LC-32LE510)
8 20565063 1 BC.32942 LED MB60&RO WO/KL&CH(I)V0(SHA9 ( Back Cover LC-32LE510)
9 20562171 1 FOOT ASSY 32942(GLOSSY-BLACK_SHARP) (STAND FOOT(DETACHABLE))
