LC-32LE510

LC-40LE510

9. CI INTERFACE

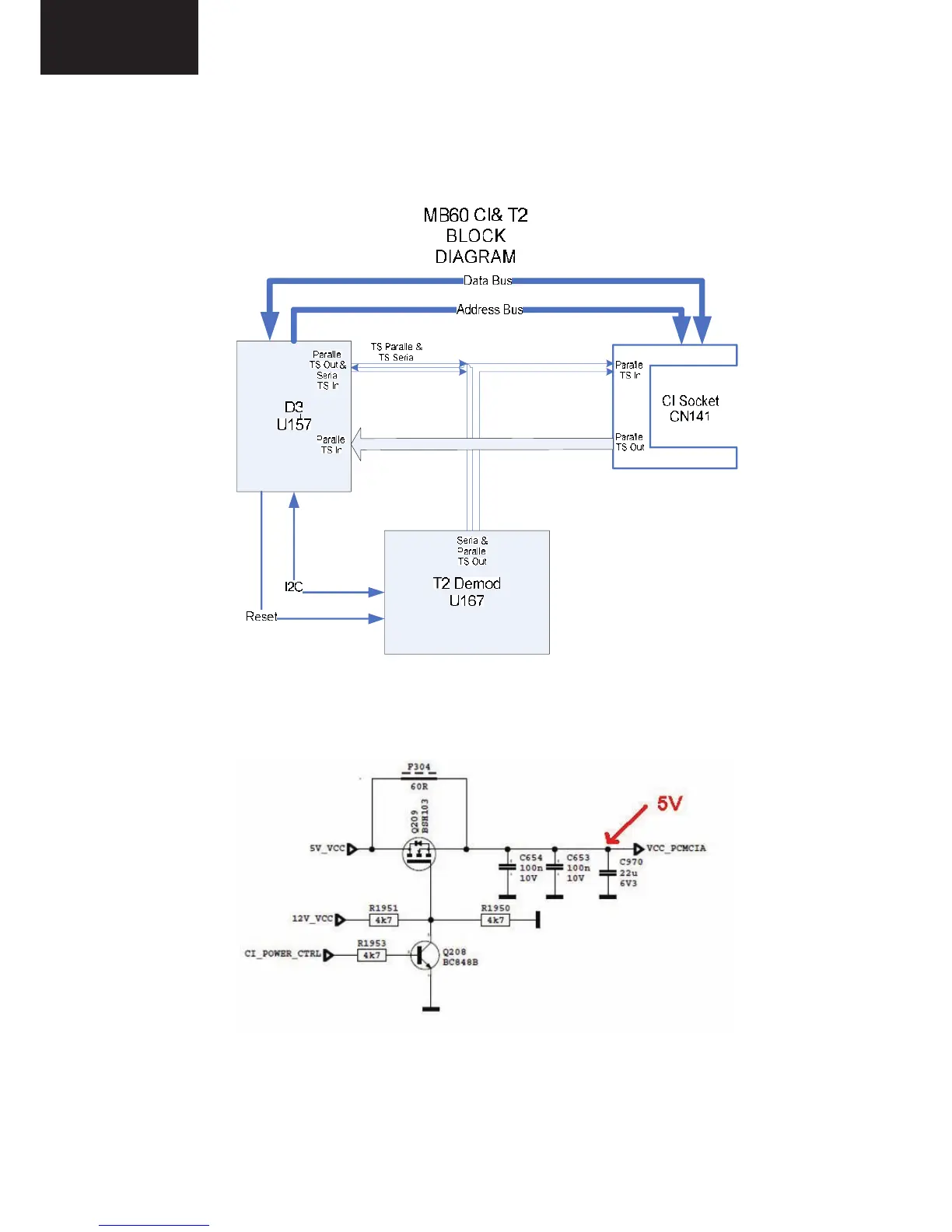

9.1 Block Diagram

9.2 CI Interface Power Switch

It is used for CI module supply, when Module is inserted (it means CI detect is low) This circuit is opened or

closed by CI_POWER_CTRL port of main μController

Default Chapter2
