LC-32LE510

LC-40LE510

24. SERVICE MENU SETTINGS

In order to reach service menu, First Press “MENU” Then press the remote control code two times,

which is “4725”.

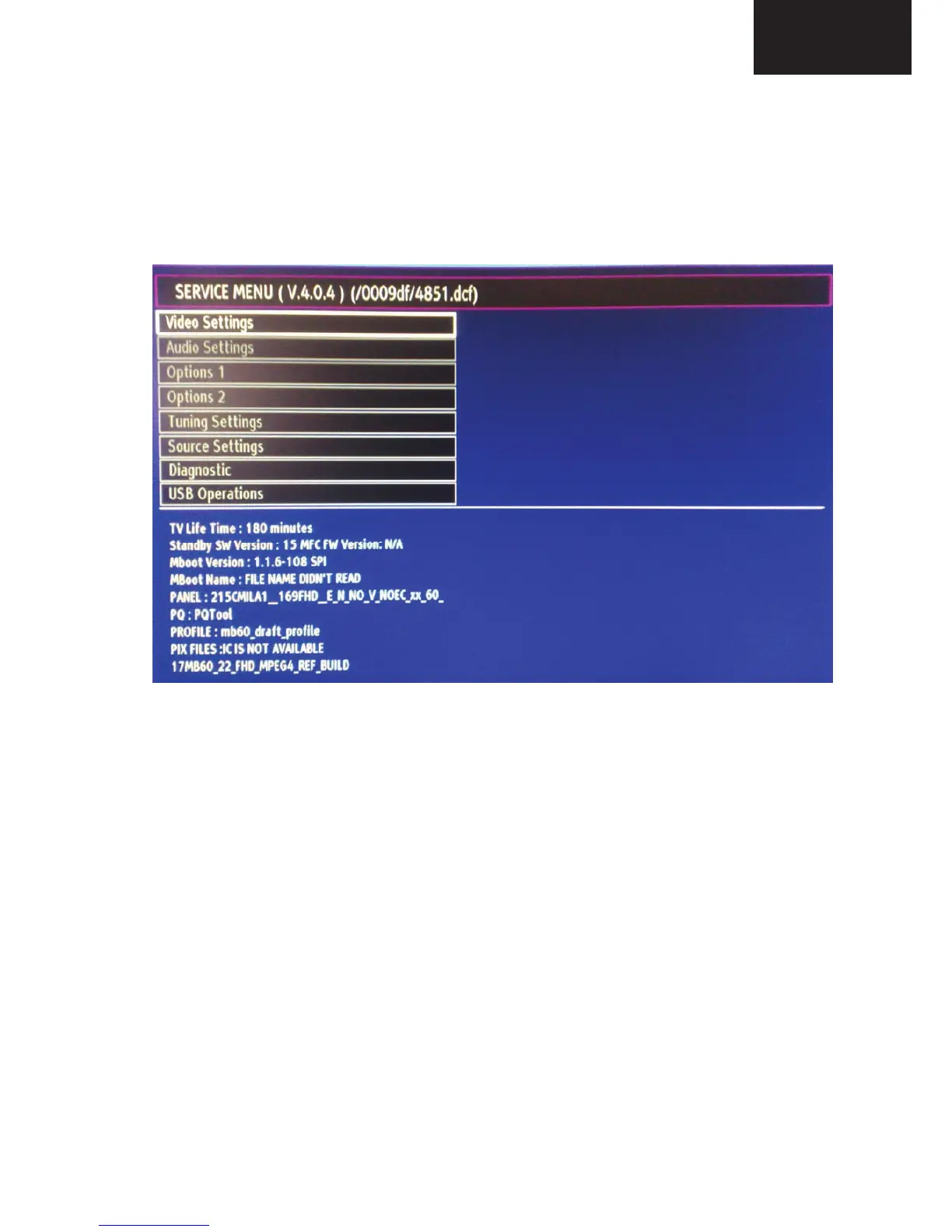

In first screen following items can be seen:

23.

SERVICE MENU SETTINGS

Default Chapter2
- Table of Contents2
- Electrical Specifications6
- Specifications6
- Important Service Safety Precaution8
  - End of Life Disposal10
  - Remote Control Buttons11
- Operation Manual11
- Dimensions17
1 Introduction19
- General Block Diagram20
- MB60 Placement of Blocks21
2 Tuner(Tu102)22
- Circuit Descriptions22
- Features of DTOS403LH122X23
- General Description of Samsung DTOS403LH122X23
- Pinning24
3 SAW FILTER - Audio - Epcos K9656M(Z101)25
- Standard25
- Features25
- Pin Configuration25
- Frequency Response26
4 SAW FILTER - Video - Epcos K3958M(Z102)27
- Standard27
- Features27
- Pin Configuration27
- Frequency Response28
5 Audio Amplifier Stage with Azad2102(U163, U164)29
- General Description29
- Features29
- Absolute Ratings30
- Electrical Characteristics30
- Operating Specifications31
- Pinning32
6 Audio Amplifier Stage with Tpa3113(U168)33
- General Description33
- Features33
- Absolute Ratings33
- Electrical Characteristics33
- Operating Specifications34
- Pinning34
7 Power Stage35
- Short CCT Protection Circuit37
- Power Management38
8 Microcontroller - Mstar(U157)40
- General Description40
- General Features40
- MSTAR Block Diagram45
- Reset Circuit45
101 CI Interface46
- Block Diagram46
- CI Interface Power Switch46
10 Usb Interface47
11 Ddr2 Sdram 8M × 4 Banks × 16 Bit (W9751G6Jb) (U154, U155)48
- General Description48
- Features48
- Electrical Characteristics48
- Pinning49
12 Scaler and Lvds Sockets51
- LVDS Sockets Block Diagram51
- Panel Supply Switch Circuit51
13 Nand Flash Memory - Mx25L1005 (U158)53
- General Description53
- Features53
- Absolute Maximum Ratings53
- Pinning53
14 Nand Flash Memory - Nand512Xxa2C (U162)54
- General Description54
- Features54
- Pinning55
15 USB2.0 to Fast Ethernet - ASIX AX88X72A (U171)56
- General Description56
- Features56
- Block Diagram57
- Pinning57
16 Lm1117(U175, U180, U181)58
- General Description58
- Features58
- Applications58
- Absolute Maximum Ratings58
- Pinning58
17 Mp2012 (U176)59
- General Description59
- Features59
- Pinning59
18 Rta8283A (U23, U173)60
- General Description60
- Features60
- Pinning61
19 Mp1583 (U174)62
- General Description62
- Features62
- Pinning62
20 Fdc64263
- General Description63
- Features63
- Pinning63
21 Fdc604P64
- General Description64
- Features64
- Pinning64
22 Connectors65
- Scart (Sc1)65
- Hdmi (Cn707,Cn708)65
- Vga (Cn132)66
23 Service Menu Settings67
- Video Settings68
- Audio Settings68
- Options69
- Tuning Settings70
- Source Settings70
- Diagnostic71
- USB Operations71
24 Software Update72
25 Troubleshooting73
- No Backlight Problem73
- CI Module Problem75
- Led Blinking Problem76
- IR Problem77
- Keypad Touchpad Problems78
- USB Problems79
- No Sound Problem80
- No Sound Problem at Headphone80
- Standby On/Off Problem80
- No Signal Problem81
26 Overal Wiring Board83
- Overall Wiring Diagram83
27 Schematic Diagrams85
- Peripherals Diagram86
- Power Supply Diagram94
28 Printed Wiring Board95
29 Replacement Part List97
30 Cabinet and Mechanical Parts Listing118
- Sharp Corporation122
