26.1. No Backlight Problem
Problem: If TV is working, led is normal and there is no picture and backlight on the panel.
Possible causes: Backlight pin, dimming pin, backlight supply, stby on/off pin

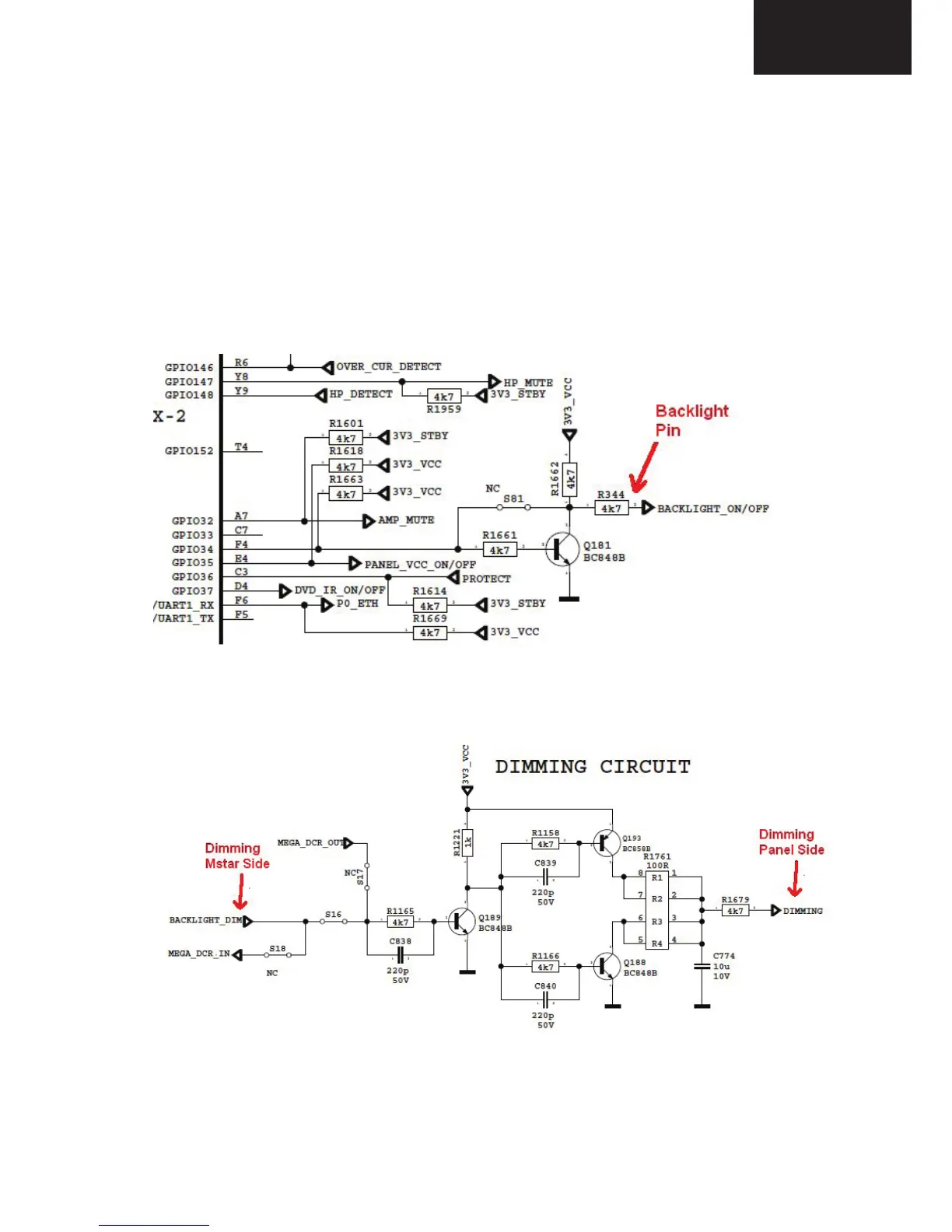

Backlight pin should be high in open position. If it is low, please check Q181 and panel cables.
Dimming pin should be high or square wave in open position. If it is low, please check S16 for Mstar side
and panel or power cables, connectors.
Backlight power supply should be in panel specs. Please check CN705 for MB60, related connectors for
power supply cards.
