CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

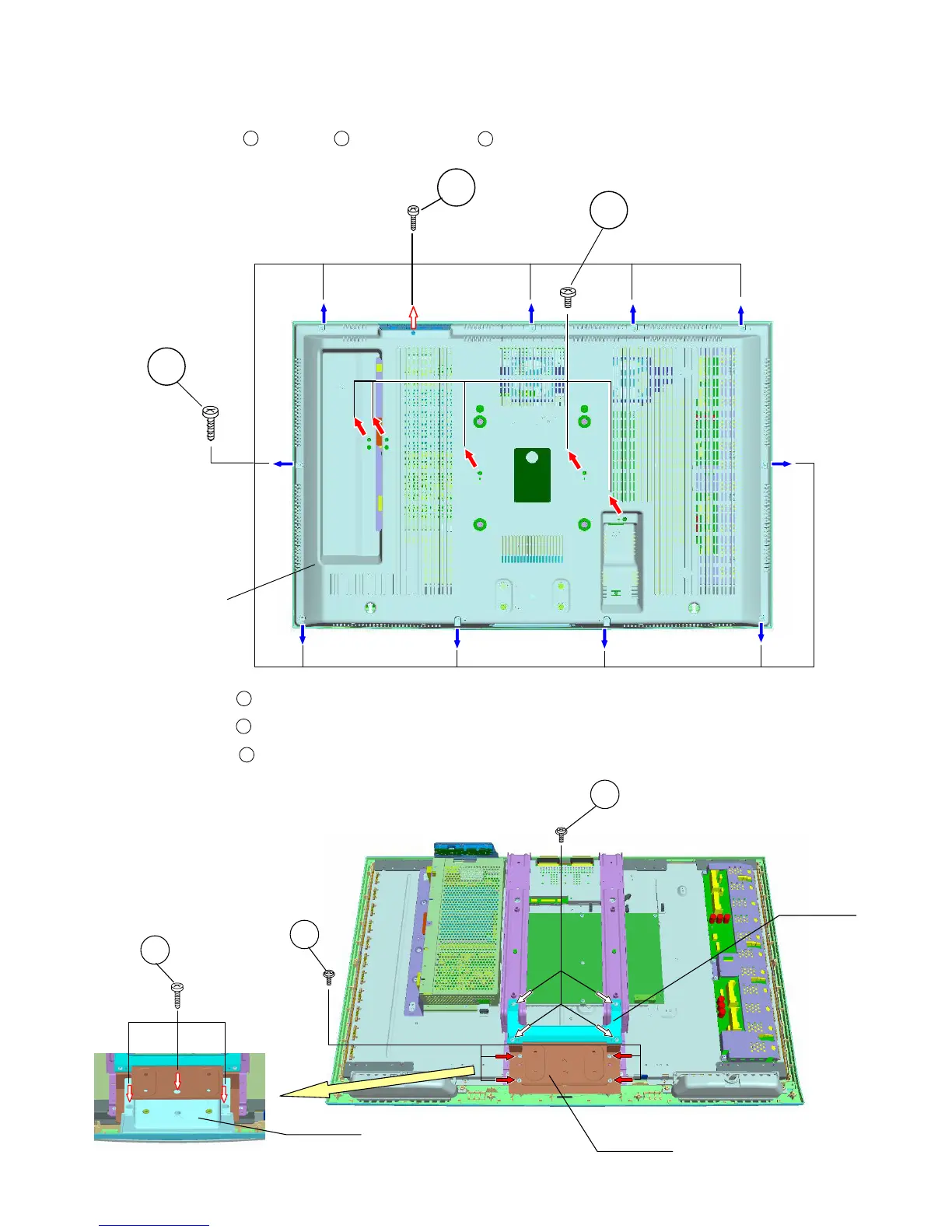

1. Remove the 10 lock screws , lock screw and the 5 lock screws . Detach the Rear Cabinet.
2. Remove the 4 lock screws and detach the Stand Angel
3. Remove the 4 lock screws and detach the Support Angle.
4. Remove the 3 lock screws and detach the Bottom Cover.
1
2
3
Rear Cabinet
2
3
1
4
5
6
Bottom Cover
Stand Angel
Support Angel
6
4
5
