CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

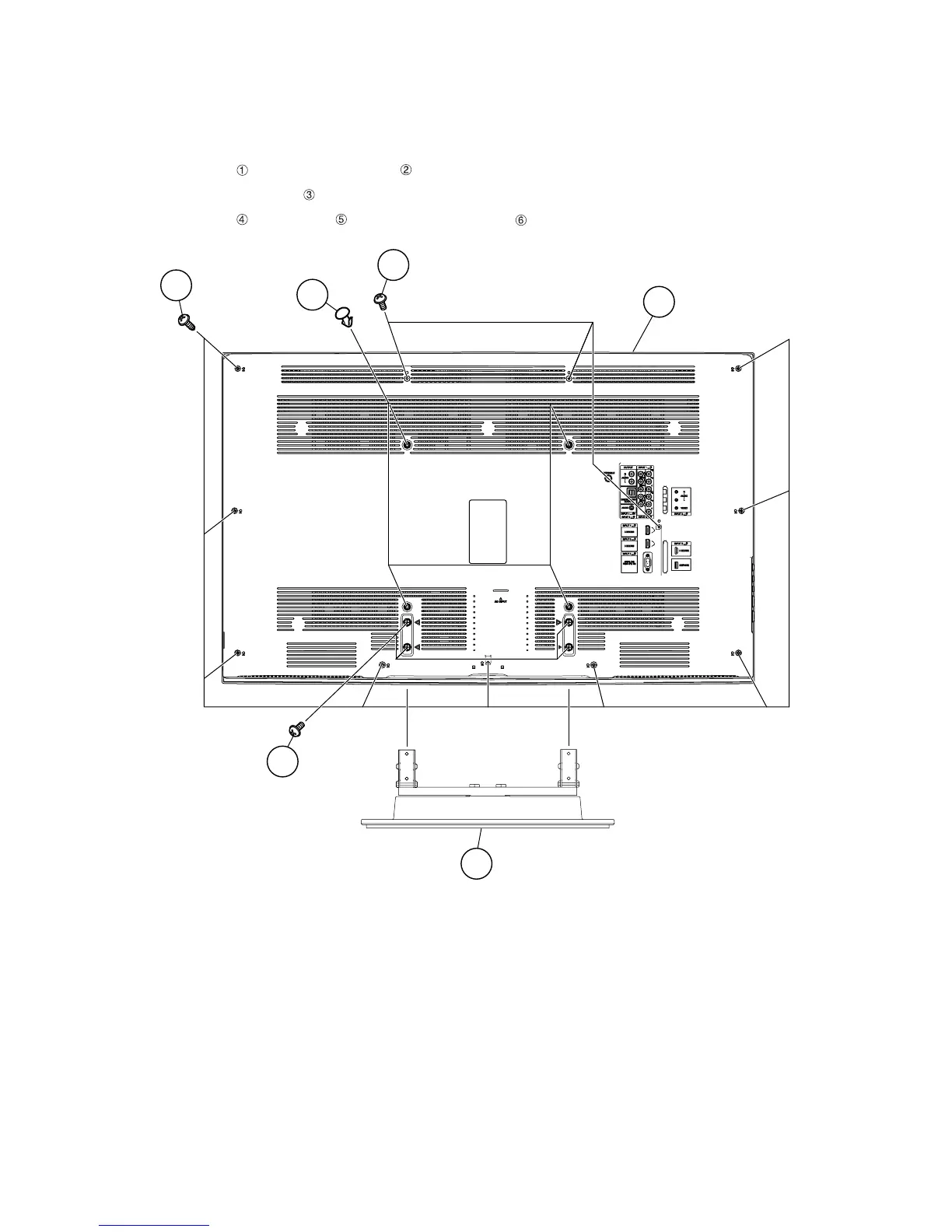

1. Removing of Stand Unit and Rear Cabinet.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Detach the 4 pieces VESA Hole Cover .
3. Remove the 3 lock screws , 9 lock screws and detach the Rear Cabinet .
5
3
4
6 Rear Cabinet
1
2
Stand Unit
