Sharp LC-40D68UT - Inverter Unit

LC-40D68UT
4 – 3

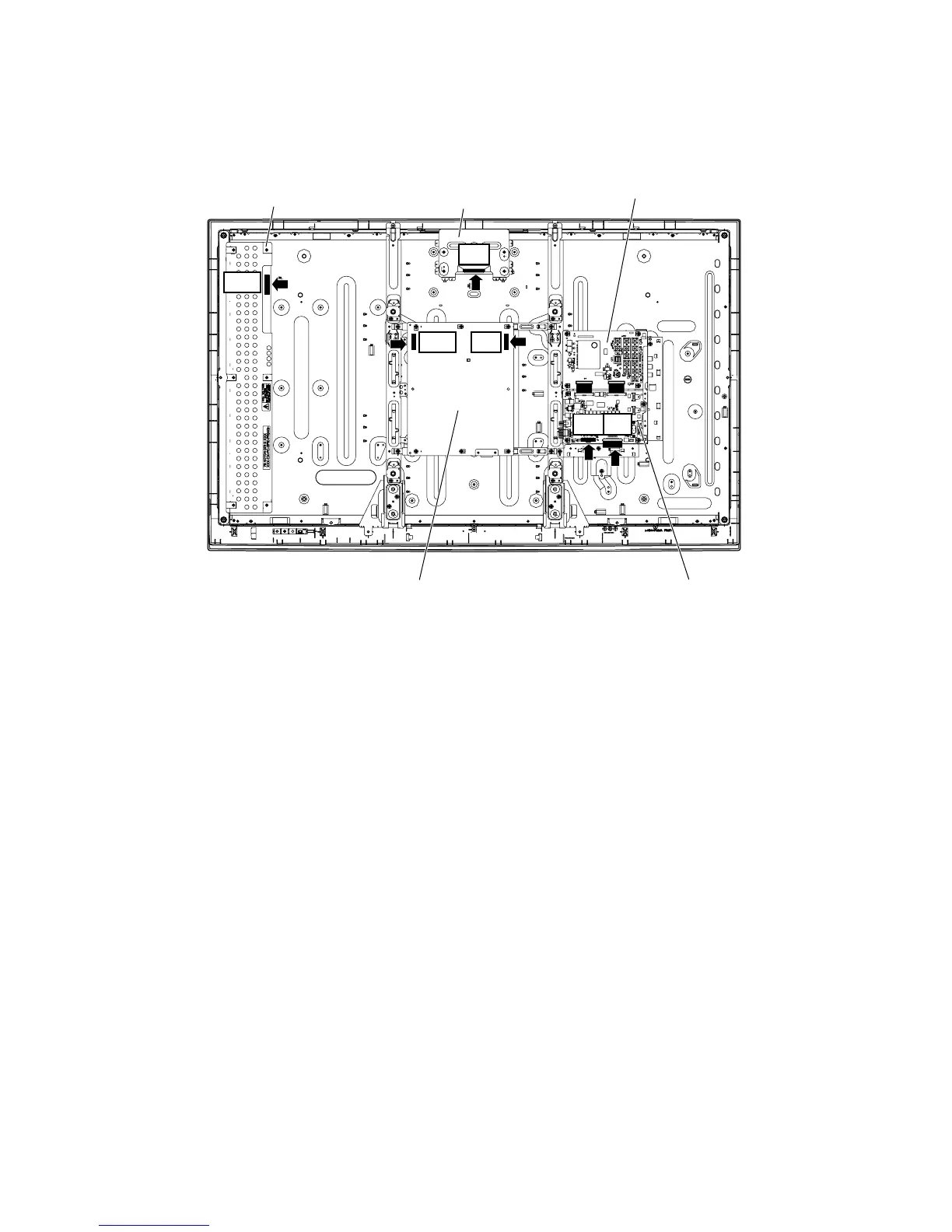

3. Removing of Connectors.
1. Disconnect the following connectors from MAIN Unit. (PD, LW)
2. Disconnect the following connectors from POWER Unit. (PD, LB2)
3. Disconnect the following connectors from LCD CONTROL Unit. (LW)
4. Disconnect the following connectors from INVERTER Unit. (LB2)
TERMINAL Unit
INVERTER Unit LCD CONTROL Unit
LW
LB2
PD
LW
PD
POWER Unit
MAIN Unit
LB2
