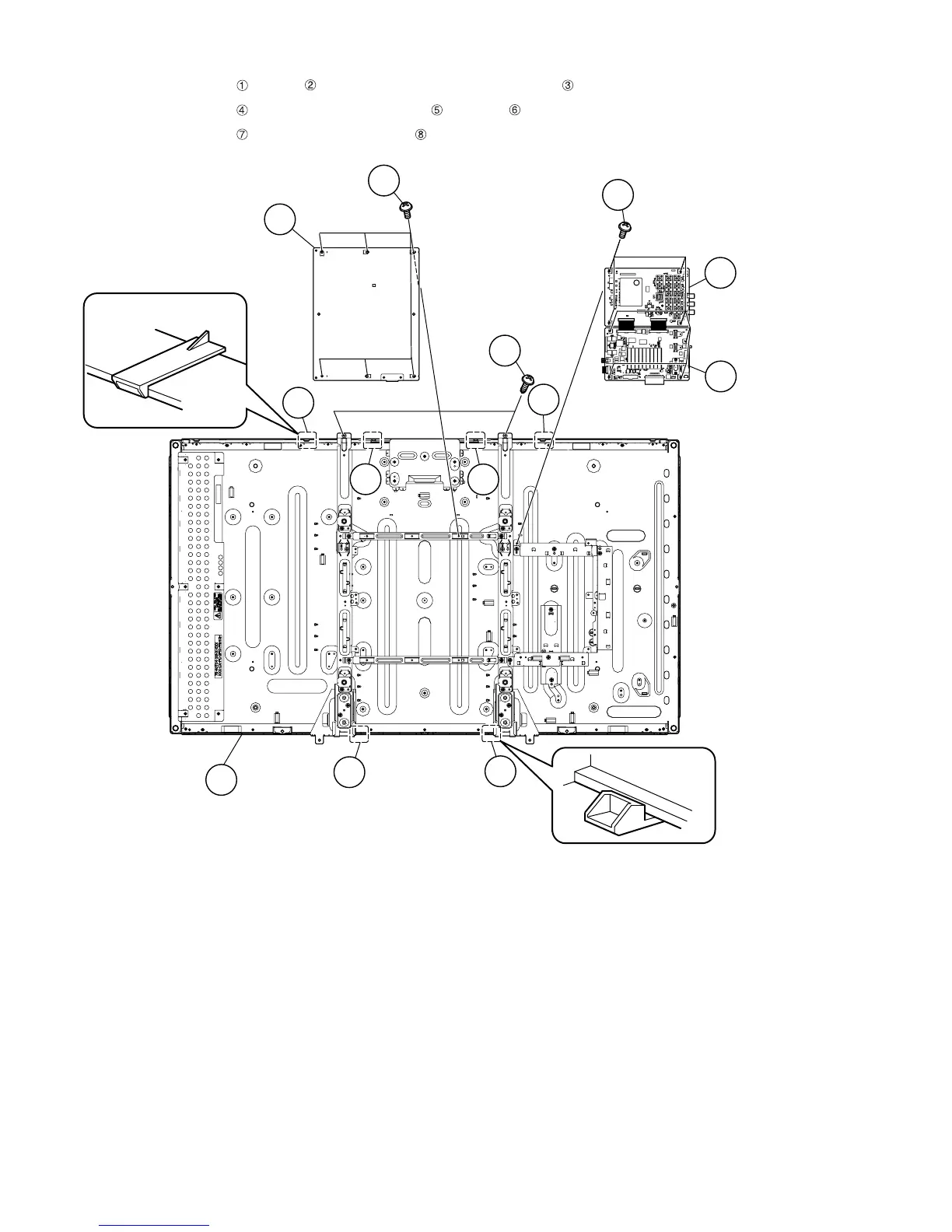

4. Removing of 40” LCD Panel Module Unit, TERMINAL Unit, MAIN Unit and POWER Unit.
1. Remove the 2 lock screws , 6 hooks and detach the 40” LCD Panel Module Unit .
2. Remove the 8 lock screws and detach the TERMINAL Unit /MAIN Unit .
3. Remove the 6 lock screws and detach the POWER Unit .
40" LCD Panel
Module Unit
1
4
5
6
2
22
2
2
3
2
TERMINAL Unit
MAIN Unit
7
8
POWER Unit
