LC-40D68UT
4 – 5

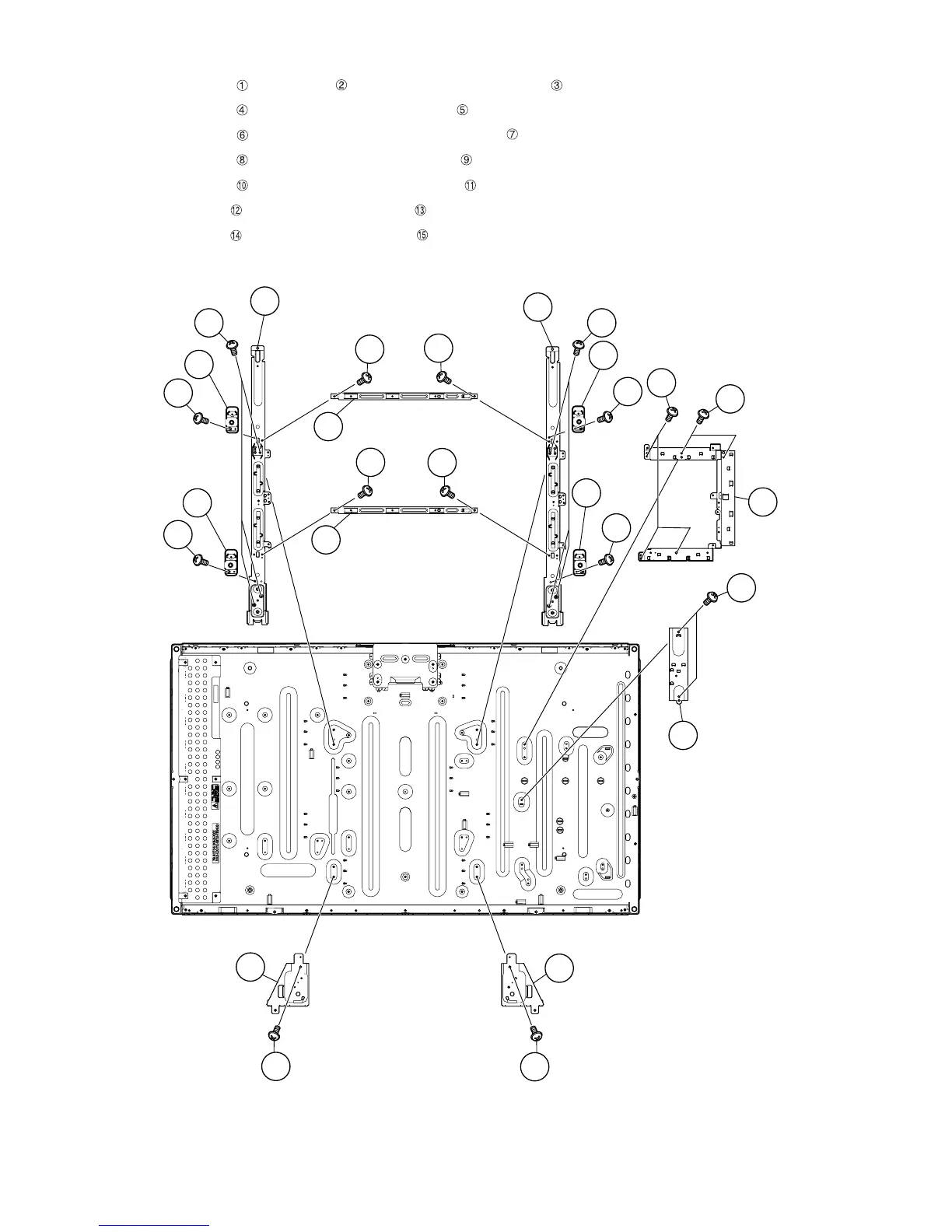

5. Removing of MAIN PWB Angle-L/W, POWER PWB Angle, VESA Angle, Center Angle and Panel Angle-L/R.
1. Remove the 2 lock screws , 3 lock screws and detach the MAIN PWB Angle-L .
2. Remove the 2 lock screws and detach the MAIN PWB Angle-W .
3. Remove the 4 lock screws and detach the 2 pieces POWER PWB Angle .
4. Remove the 4 lock screws and detach the 4 pieces VESA Angle .
5. Remove the 6 lock screws and detach the 2 pieces Center Angle .
6. Remove the 1 lock screw and detach the Panel Angle-L .
7. Remove the 1 lock screw and detach the Panel Angle-R .
1
3
4
5
2
6
7
6
6
6
MAIN PWB
Angle-L
MAIN PWB
Angle-W
POWER PWB Angle
7
POWER PWB Angle
8
8
9
9
VESA Angle
VESA
Angle
8
8
9
9
10
10
11
11
VESA Angle
VESA Angle
Center Angle
Center Angle
12
13
14
15
Panel Angle-L
Panel Angle-R
To Next Page
