Sharp LC-40D68UT - Key Button; Key Unit; Bottom Cover

LC-40D68UT
4 – 2

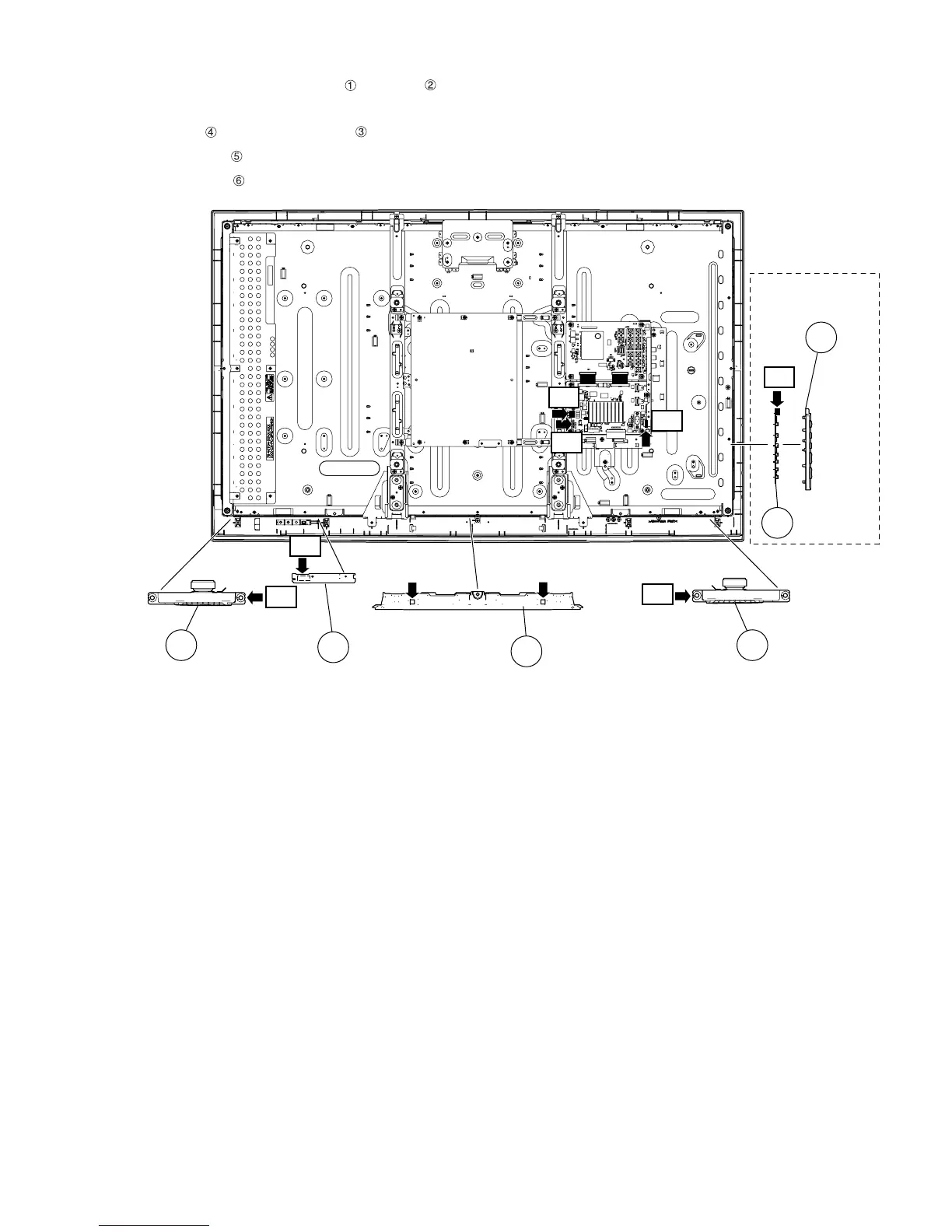

2. Removing of Speaker-L/R, KEY Unit Ass’y, Bottom Cover and R/C, LED Unit.
1. Disconnect SP wire and detach the Speaker-L /Speaker-R .
2. Detach the KEY Button Cover Ass’y.
3. Detach the KEY Unit from KEY Button Cover and disconnect KM wire.
4. Detach the Bottom Cover .
5. Detach the R/C, LED Unit and disconnect RA wire.
KM
SP
2
6
5
4
1
3
Speaker-R
RA
SP
R/C, LED Unit
Bottom Cover
Speaker-L
KEY Button
Cover Ass'y
KEY Button
Cover
KEY Unit
KM
RA
SP
