LC-40/46LE812E, LC-40/46LX812E, LC-40/46/52LE822E, LC-40/46LU822E (1st Edition)
2 – 1
LC-40LE812E
Service Manual
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL

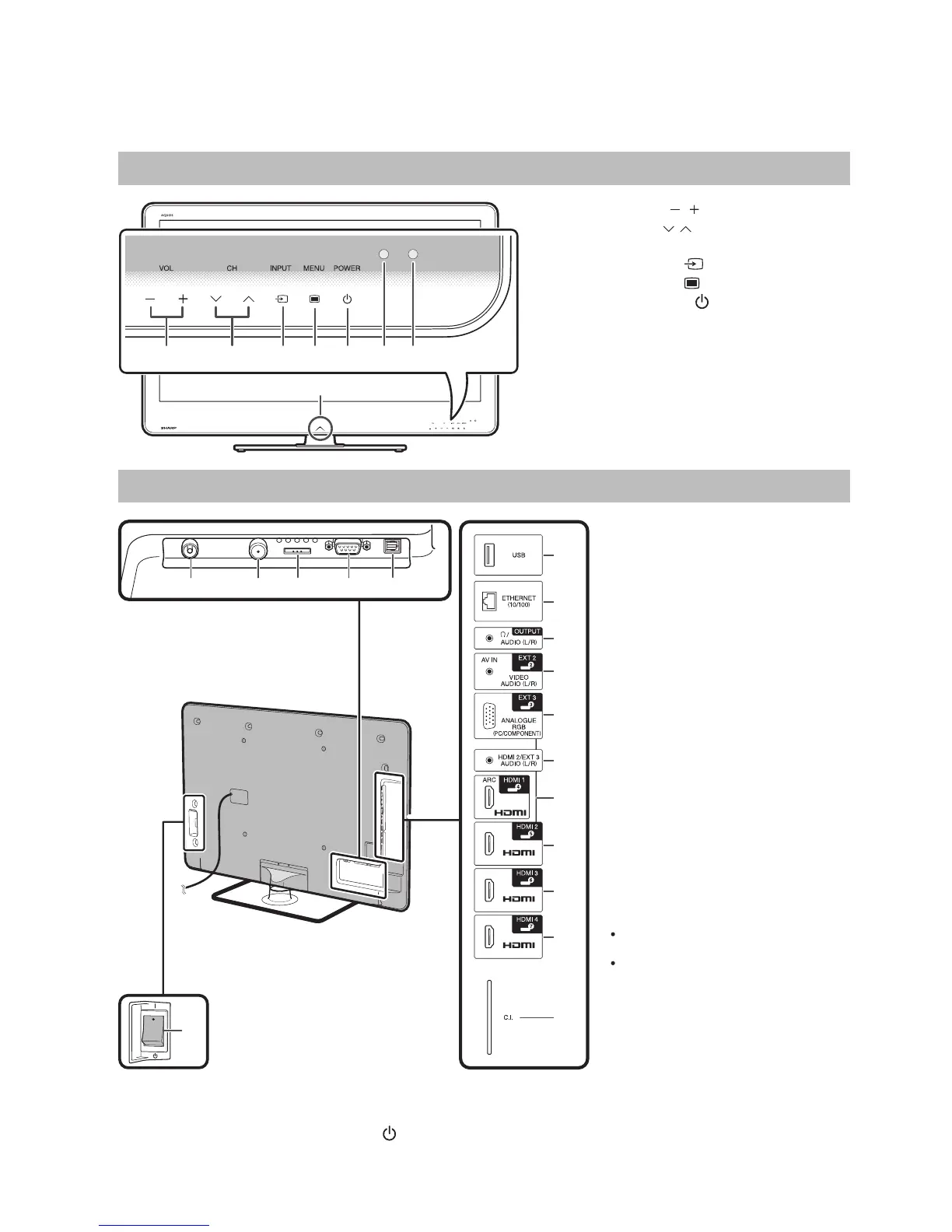

TV (front view)
1 3 45
8
672
VOL / (Volume buttons)
CH / (Programme [channel]
buttons)
INPUT (Input source button)
MANU (Menu button)
POWER (Power button)
OPC sensor
Remote control sensor
Illumination LED
1
2
3
4
5
6
7
8
TV (rear view)
17
*3
11
*2
*1
7
6
8
9
10
12
13
14
15
16
1
2
3 4 5
Antenna terminal
Satellite antenna terminal
EXT 1 (RGB) terminal
RS-232C terminal
DIGITAL AUDIO OUTPUT
terminal
USB terminal
ETHERNET (10/100) terminal
OUTPUT (Headphones/AUDIO
(L/R)) terminal
EXT 2 (AV IN/VIDEO/AUDIO (L/R))
terminal
EXT 3 (ANALOGUE RGB (PC/
COMPONENT)) terminal
HDMI 2/EXT 3 AUDIO (L/R) jack
HDMI 1 (HDMI/ARC) terminal
HDMI 2 (HDMI) terminal
HDMI 3 (HDMI) terminal
HDMI 4 (HDMI) terminal
C.I. (COMMON INTERFACE) slot
MAIN POWER switch
WARNING
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Do not set the volume at a high level.
Hearing experts advise against extended
listening at high volume levels.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
This terminal is not available for the 812 model series.
The HDMI 2 and EXT 3 terminals can both use the same audio input terminal (HDMI 2/EXT 3 AUDIO (L/R)). However, the proper item
must be selected in the Audio select menu.
When the MAIN POWER switch is turned off ( ), the amount of electric power consumed will be reduced to 0.01 W or less. However,
unlike when unplugging the AC cord, the power is not completely disconnected.
*1
*2
*3
