LC-40/46LE830E, RU/831E, S
4 – 3

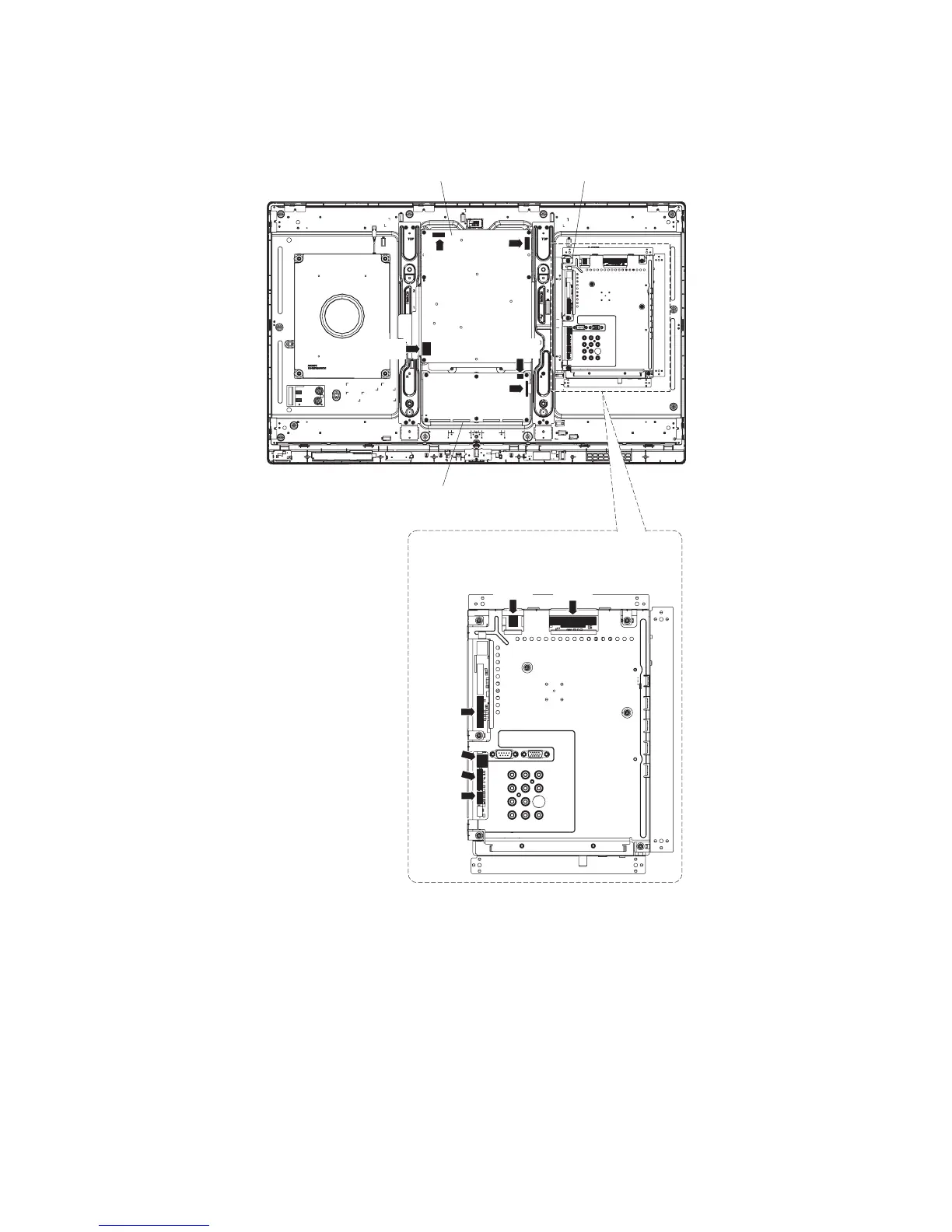

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, PD, LW, PL, RC, Cl)
2. Disconnect the following connectors from the POWER Unit. (PD, L1, AS)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)
LCD CONTROL Unit
MAIN UnitPOWER Unit
[LW]
[AS]
[PD]
[L1]
[PL]
MAIN Unit
[SB]
[PD]
[CI]
[RC]
[PL]
[LW]
