LC-42/46/52D85X
4 – 5

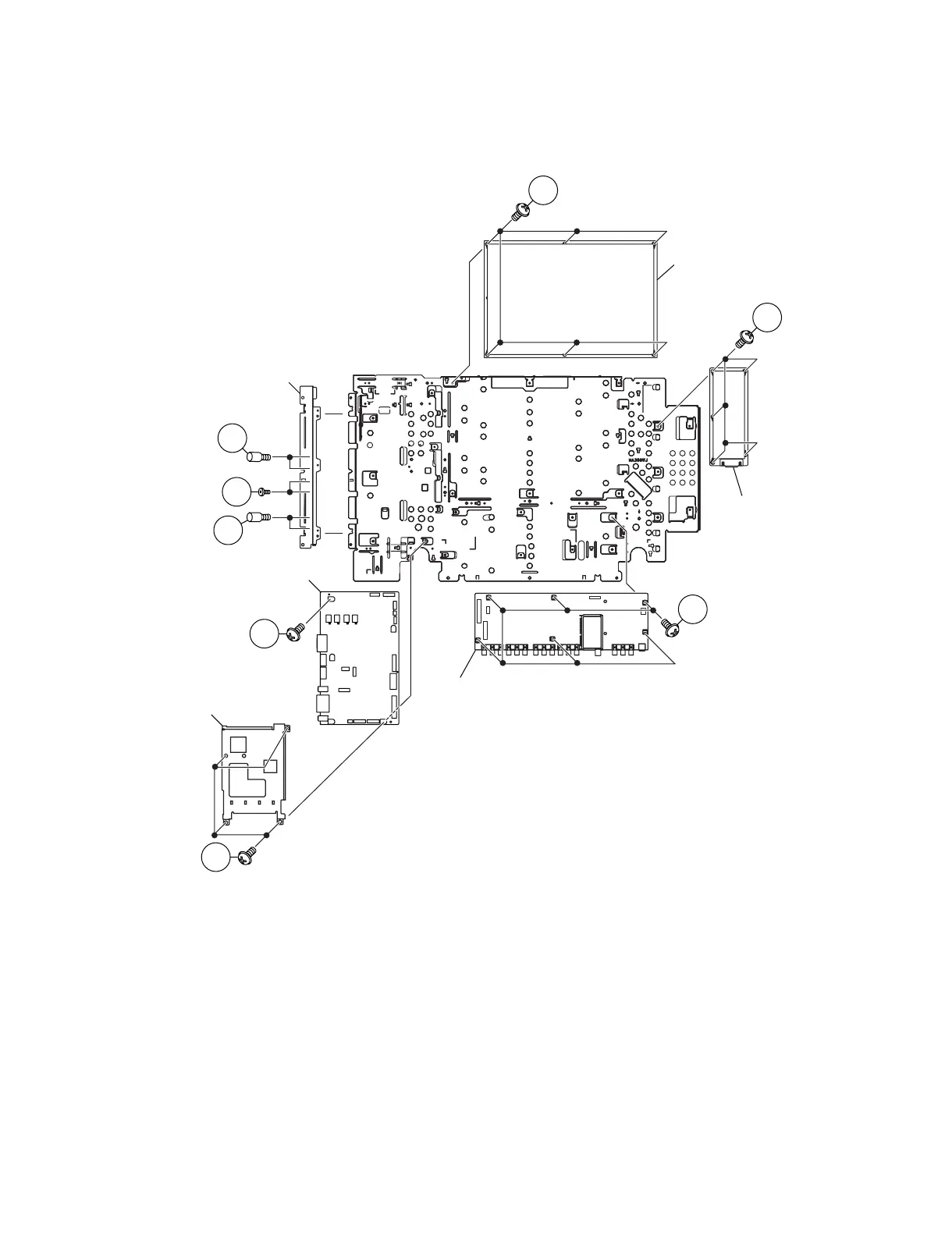

14.Remove the 4 lock Shafts [17], 2 lock screws [18] and detach the Terminal Angle Side.
15.Remove the 5 lock screws [19] and detach the Main PWB Radiator, MAIN Unit.
16.Remove the 6 lock screws [20] and detach the SUB Unit.
17.Remove the 5 lock screws [21] and detach the AC INLET Unit.
18.Remove the 6 lock screws [22] and detach the POWER Unit.
19
20
21
22
17
17
18
Terminal Angle Side
POWER Unit
MAIN Unit
AC INLET Unit
SUB Unit
19
Main PWB Radiator
