Sharp LC-42D85X - Page 16

LC-42/46/52D85X
4 – 6

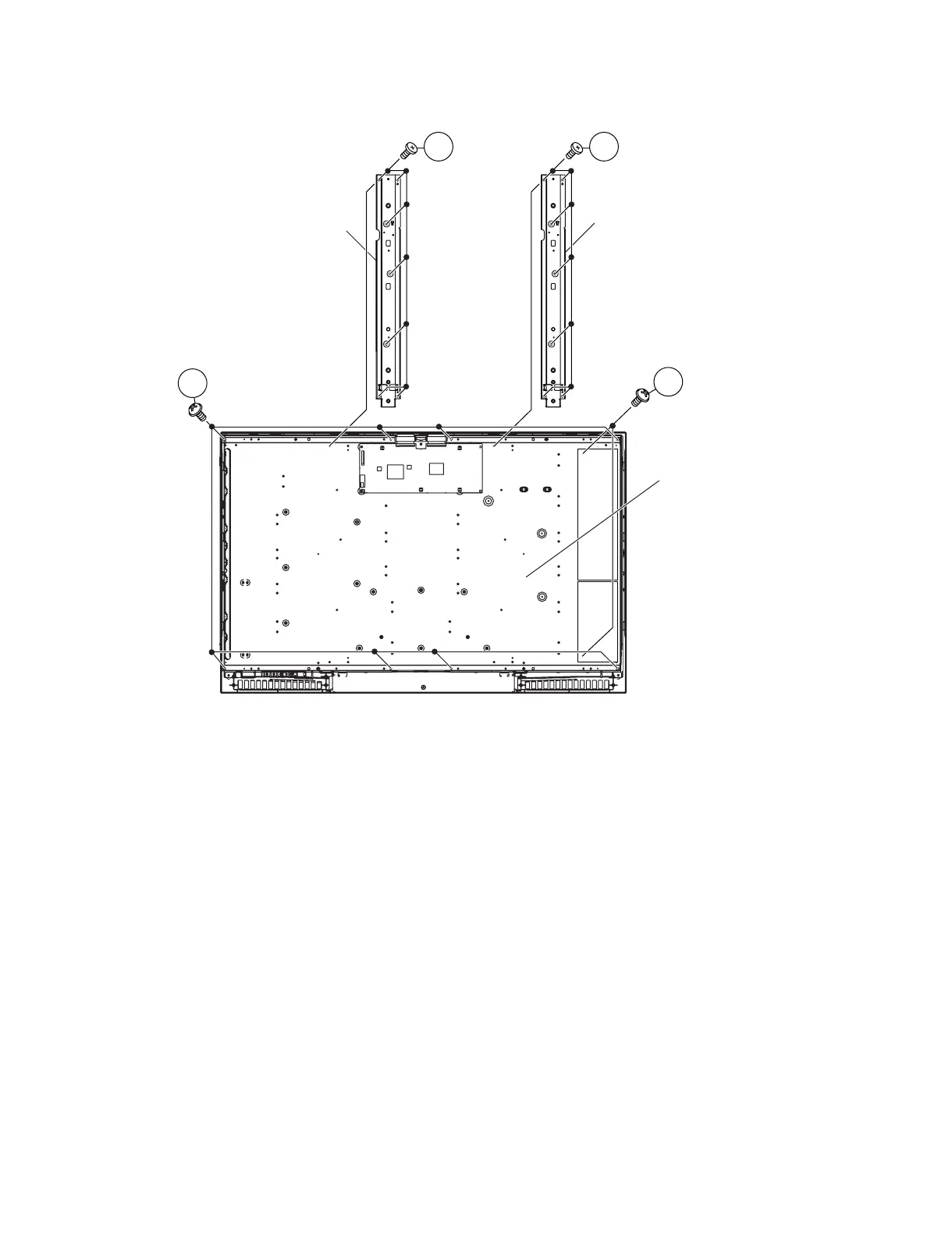

19.Remove the 14 lock screws [23] and detach the Panel Support Angle.
20.Remove the 2 lock screws [24].
21.Remove the 8 lock screws [25] and detach the LCD Panel Module.
Panel Support Angle
Panel Support Angle
23 23
24
25
LCD Panel Module
