LC-42/46/52D85X
5 – 17
6. ADC adjustment (Component 15K)
7. ADC adjustment (Component 33K)
8. DVI-I adjustment (ANALOG D-sub15PIN)
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
COMP15K, 50Hz (576i)

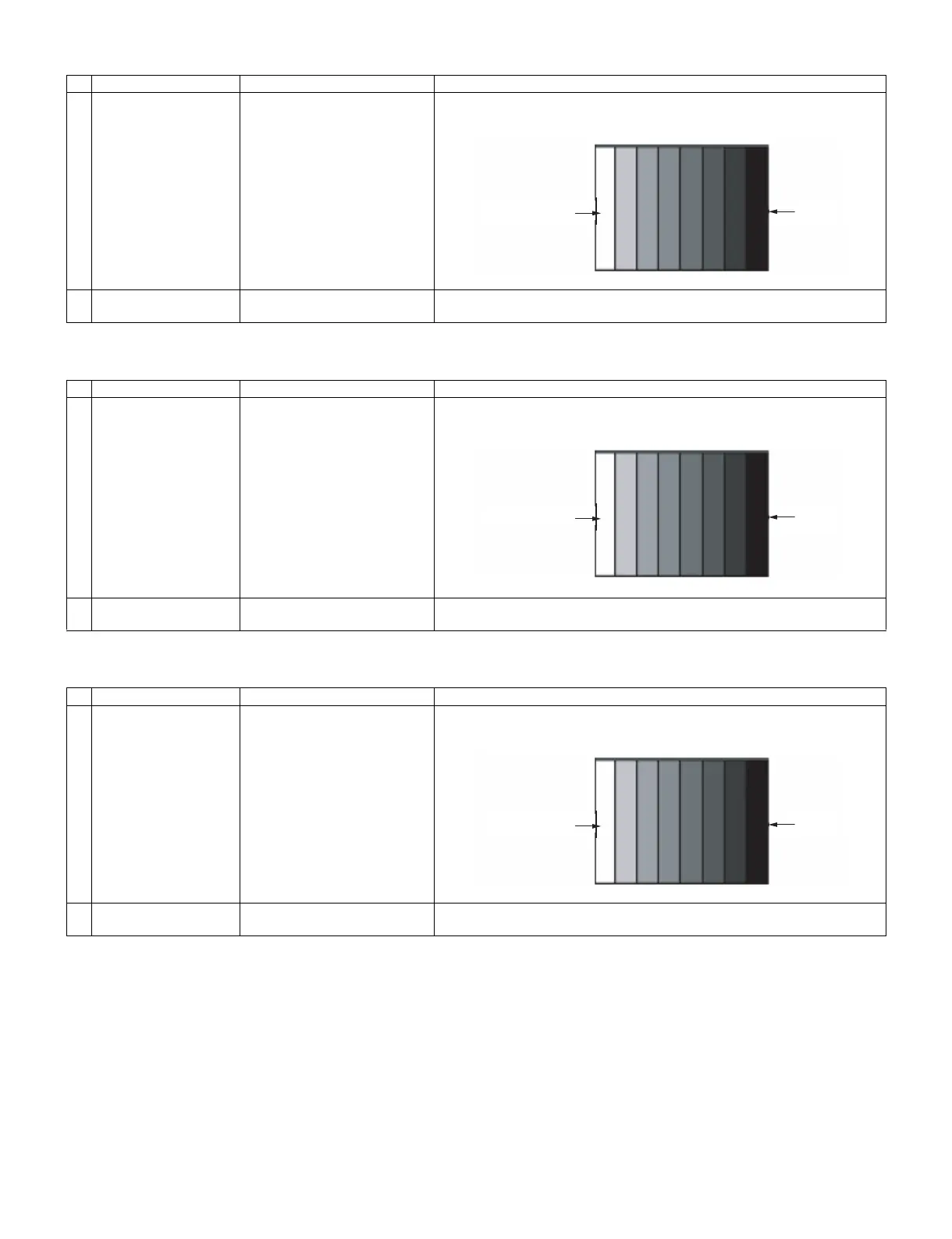

100% Full Field Colour Bar sig-
nal
[Terminal]
INPUT1 COMPONENT INPUT
• Feed the COMPONENT 15K (576i) 100% full field colour bar signal (100%
colour saturation) to INPUT1 COMPONENT INPUT.
2 Auto adjustment
performance
Page 6/32 Bring the cursor on [COMP15k ALL ADJ] and press [ENTER] [COMP15k ALL
ADJ OK] appears when finished.
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
COMP33K, 50Hz (1080i)
100% Full Field Colour Bar sig-
nal
[Terminal]
INPUT1 COMPONENT INPUT
• Feed the COMPONENT 33K 100% (1080i) full field colour bar signal (100%
colour saturation) to INPUT1 COMPONENT INPUT.
2 Auto adjustment
performance
Page 7/32 Bring the cursor on [HDTV ADJ] and press [ENTER] [HDTV ADJ OK] appears
when finished.
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
XGA 60Hz
100% Full Field Colour Bar sig-
nal
[Terminal]
INPUT7 PC IN
• Feed the XGA 60Hz 100% full field colour bar signal (100% colour satura-
tion) to INPUT7 PC IN.
2 Auto adjustment
performance
Page 8/32 Bring the cursor on [DVI ANALOG PC ADJ] and press [ENTER] [DVI ANALOG
PC ADJ OK] appears when finished.
100% white
Black
100% white
Black
100% white
Black
