LC-42/46/52D85X
5 – 16

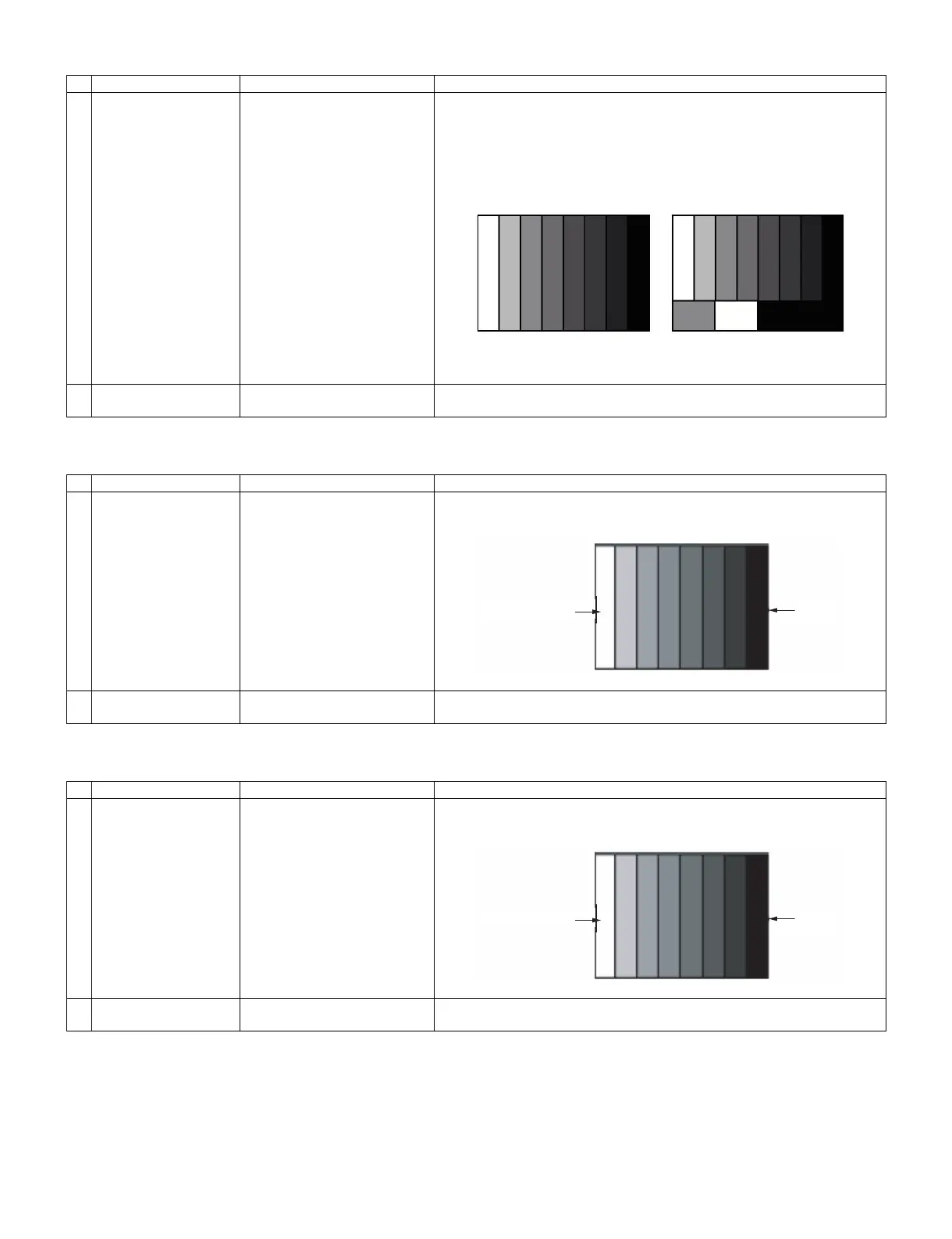

3. PAL signal & tuner adjustment
4. SECAM adjustment
5. N358 adjustment
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
PAL
Full Field Colour Bar Composite
or RF signal
[Terminal]
INPUT1 VIDEO INPUT
TUNER
• Feed the PAL full field colour bar signal (75% colour saturation) to INPUT1
VIDEO INPUT.
• Feed the RF signal (PAL colour bar) to TUNER.
• Make sure the PAL colour bar pattern has the sync level of 7:3 with the pic-
ture level.
2 Auto adjustment
performance
Page 3/32 Bring the cursor on [PAL+TUNER ADJ] and press [ENTER] [PAL+TUNER ADJ
OK] appears when finished.
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
SECAM
Full Field Colour Bar signal
[Terminal]
INPUT1 VIDEO IN
• Feed the SECAM full field colour bar signal (75% colour saturation) to
INPUT1 VIDEO INPUT.
2 Auto adjustment
performance
Page 4/32 Bring the cursor on [SECAM ADJ] and press [ENTER] [SECAM ADJ OK]
appears when finished.
Adjustment point Adjustment Conditions Adjustment procedure
1 Setting [Signal]
N358
Full Field Colour Bar signal
[Terminal]
INPUT1 VIDEO IN
• Feed the N358 full field colour bar signal (75% colour saturation) to INPUT1
VIDEO INPUT.
2 Auto adjustment
performance
Page 4/32 Bring the cursor on [N358 ADJ] and press [ENTER] [N358 ADJ OK] appears
when finished.
㸡100% white
㪲VIDEO IN SIGNAL]
㸡100% white
[RF Signal]
100% white
Black
100% white
Black
