55
Successfully installed
C Connection Mode

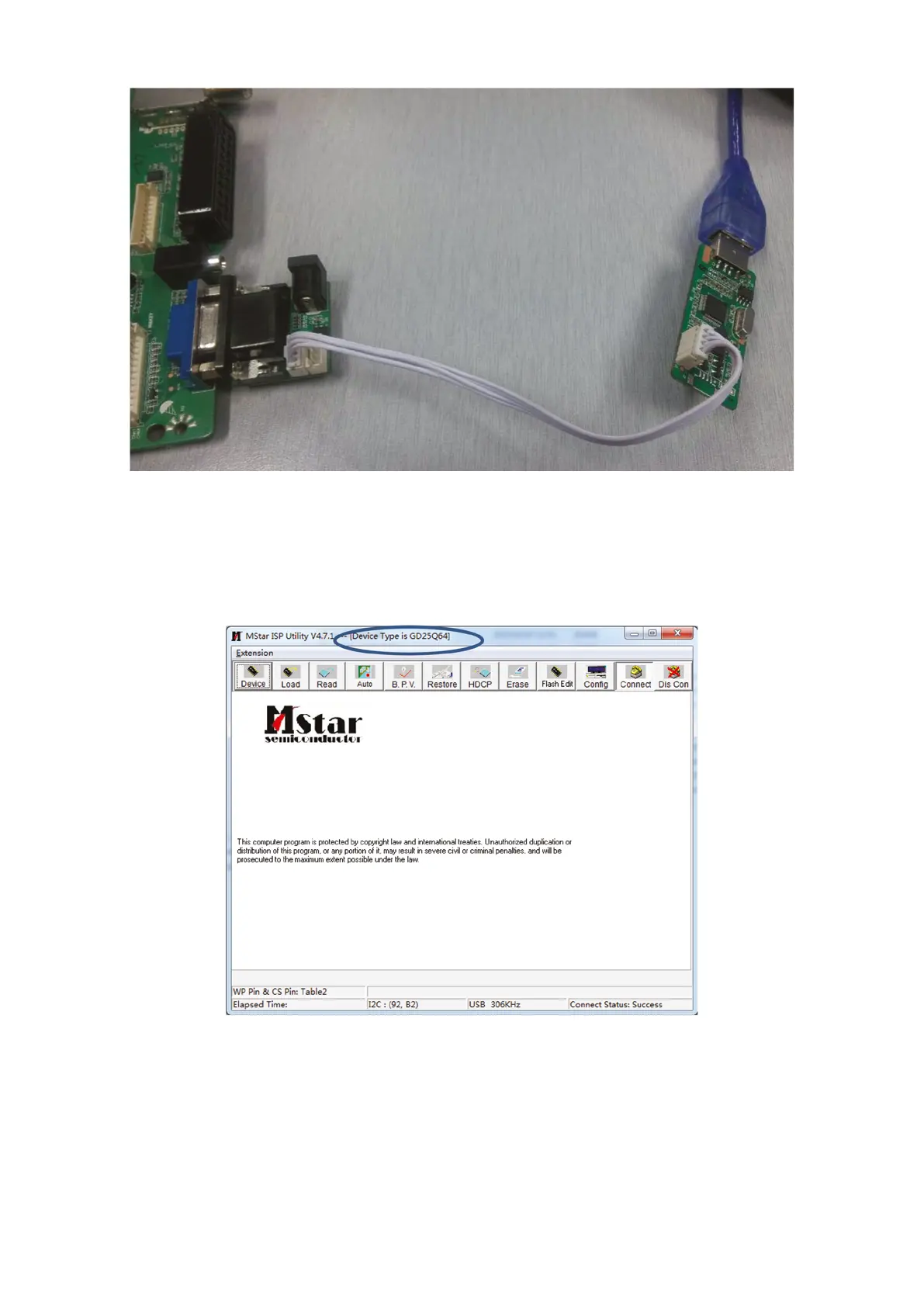

Connect main board VGA port and PC USB port with serial port cable.
The picture is for reference only
Note: The middle two lines of 4pin cable should be crossed, or connection will fail.
D Upgrade Process
Run ISP_Tool.exe. Click Connect to enter ISP Mode. It’ll show the ‘Device Type’ if the connection is
correct.
