Sharp LC-48CFE4042E - Picture Adjustment Procedures; White Balance Calibration

62
8. PICTURE ADJUSTMENT
8.1 White Balance
• Load 80% White pattern from signal generator
• Enter Factory Menu by pressing MENU + 1147

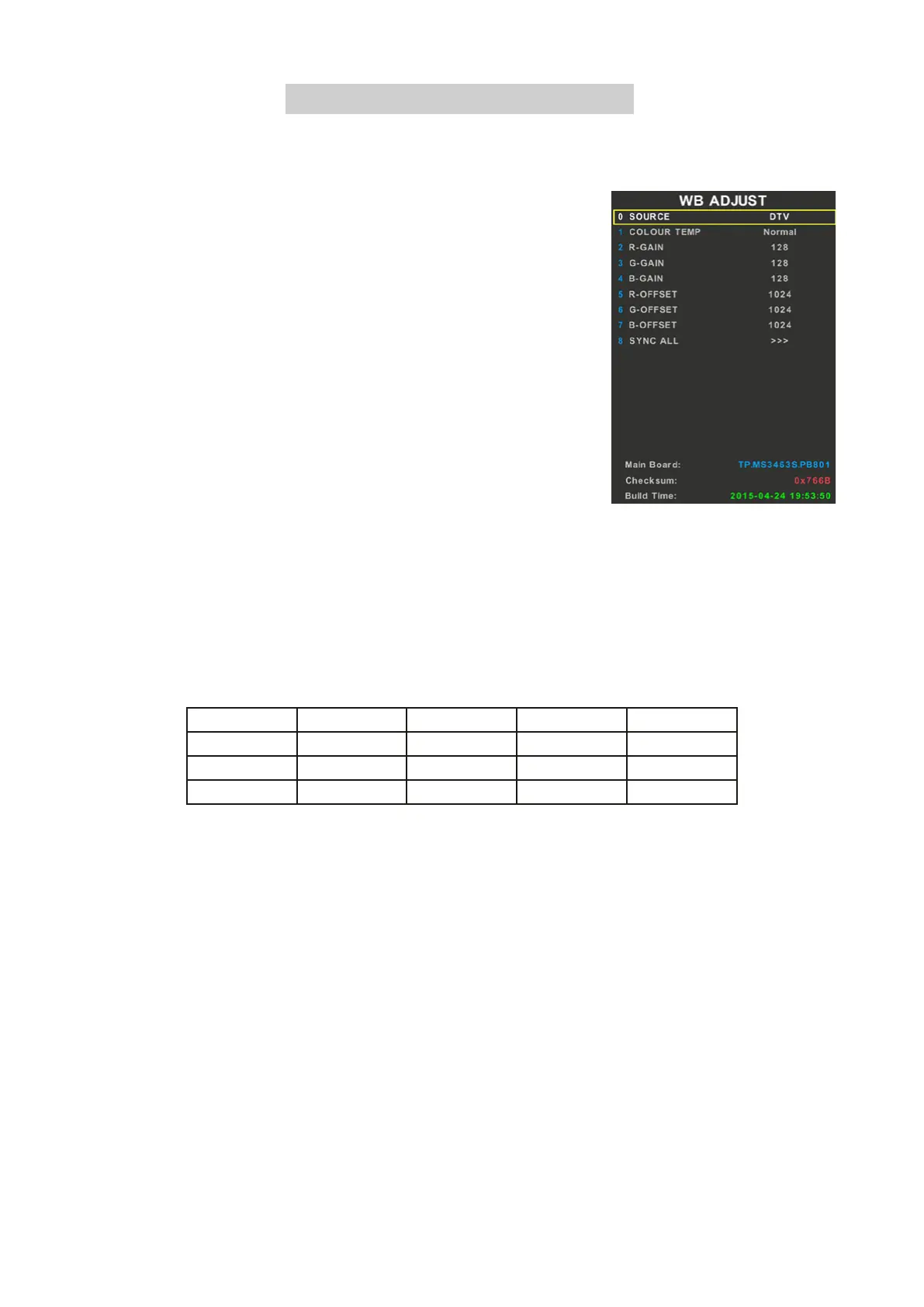

• Choose 3 PICTURE SETTING
• Choose 3 WB ADJUST
• Change 0 SOURCE to HDMI
• In 1 COLOUR TEMP choose Warm/Normal/Cold
• Change R-GAIN/G-GAIN/B-GAIN to meet specication
Color Temperature specication:
x y °K Deviation
Cold 0,2718 0,2776 12000 ±0.003
Normal 0,2848 0,2932 9300 ±0.003
Warm 0,3135 0,3236 6500 ±0.003
