REMOVING OF MAJOR PARTS
1. Removing of major Parts 39”
1.1. Remove the 4 lock screws  and detach the Stand.
1.2. Remove the 14 lock screws , 1 lock screw , 1 lock screw  and detach the AC cord cover and Rear Cabinet
LC-39LE650
1 / 5
LC32D44E-BK
Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

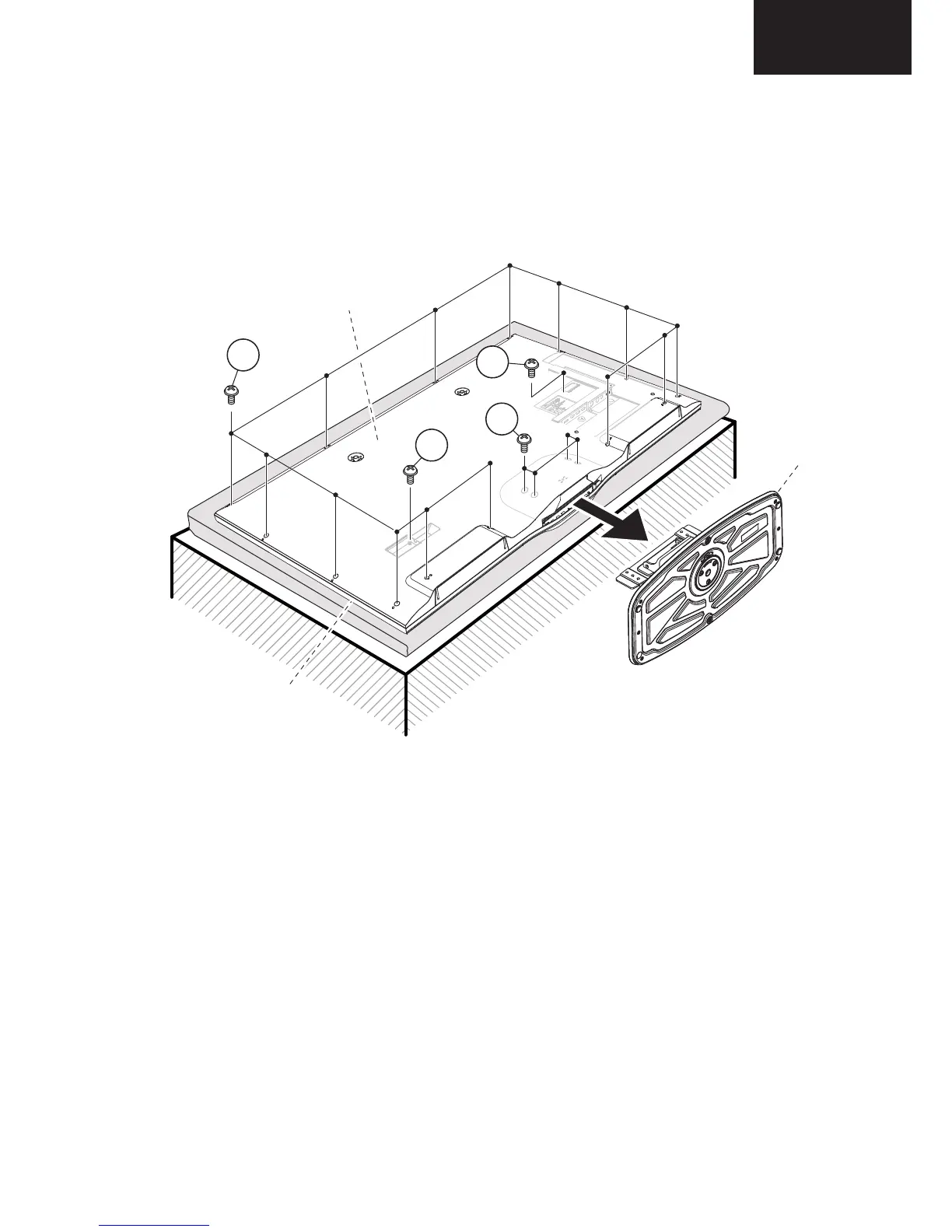

1. Remove the 4 lock screws and detach the Stand.
2. Remove the 14 lock screws , 1 lock screw , 1 lock screw and detach the AC cord cover and the Rear Cabinet.
2
1
3
4
2
front
CABINET
rear
CABINET
1
3
4
1 / 5
STAND
