LC-52LE920UN/LC-60LE920UN

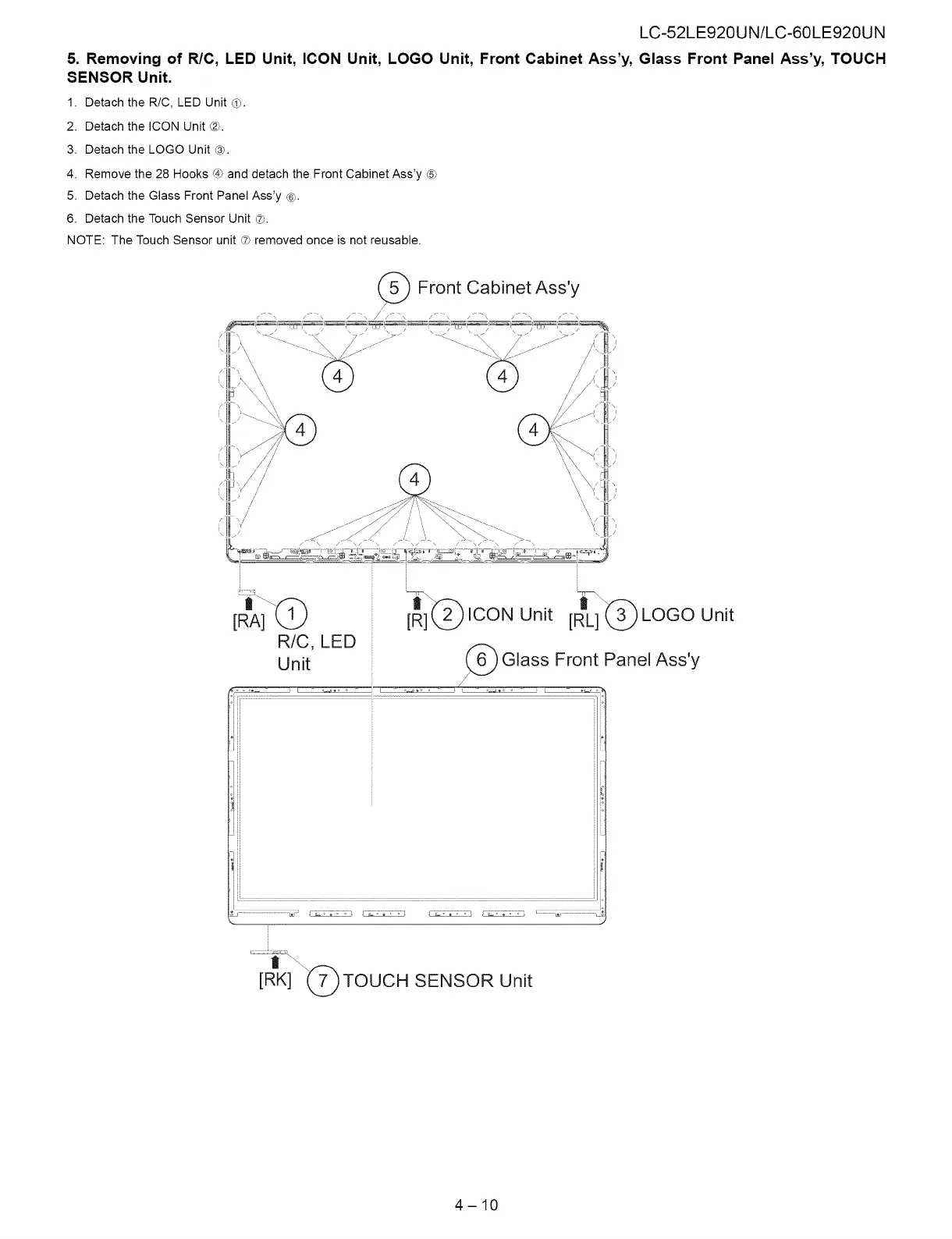

5. Removing of R/C, LED Unit, ICON Unit, LOGO Unit, Front Cabinet Ass’y, Glass Front Panel Ass’y, TOUCH
SENSOR Unit.
1. Detach the R/C, LED Unit @.
Detach the ICON Unit @.
Detach the LOGO Unit ©.
Remove the 28 Hooks @ and detach the Front Cabinet Ass’y ©
Detach the Glass Front Panel Ass’y ©.
oa
F
WN
Detach the Touch Sensor Unit @.
NOTE: The Touch Sensor unit @ removed once is not reusable.
& —— N TT
Ray 1) RJ(2)ICON Unit Aly (3) LOGO Unit
RIC, LED
Unit
®
Glass
Front
Panel
Ass'y
;
|
(aa REIS
-_
[RK] (@)TOUCH SENSOR Unit
4-10
