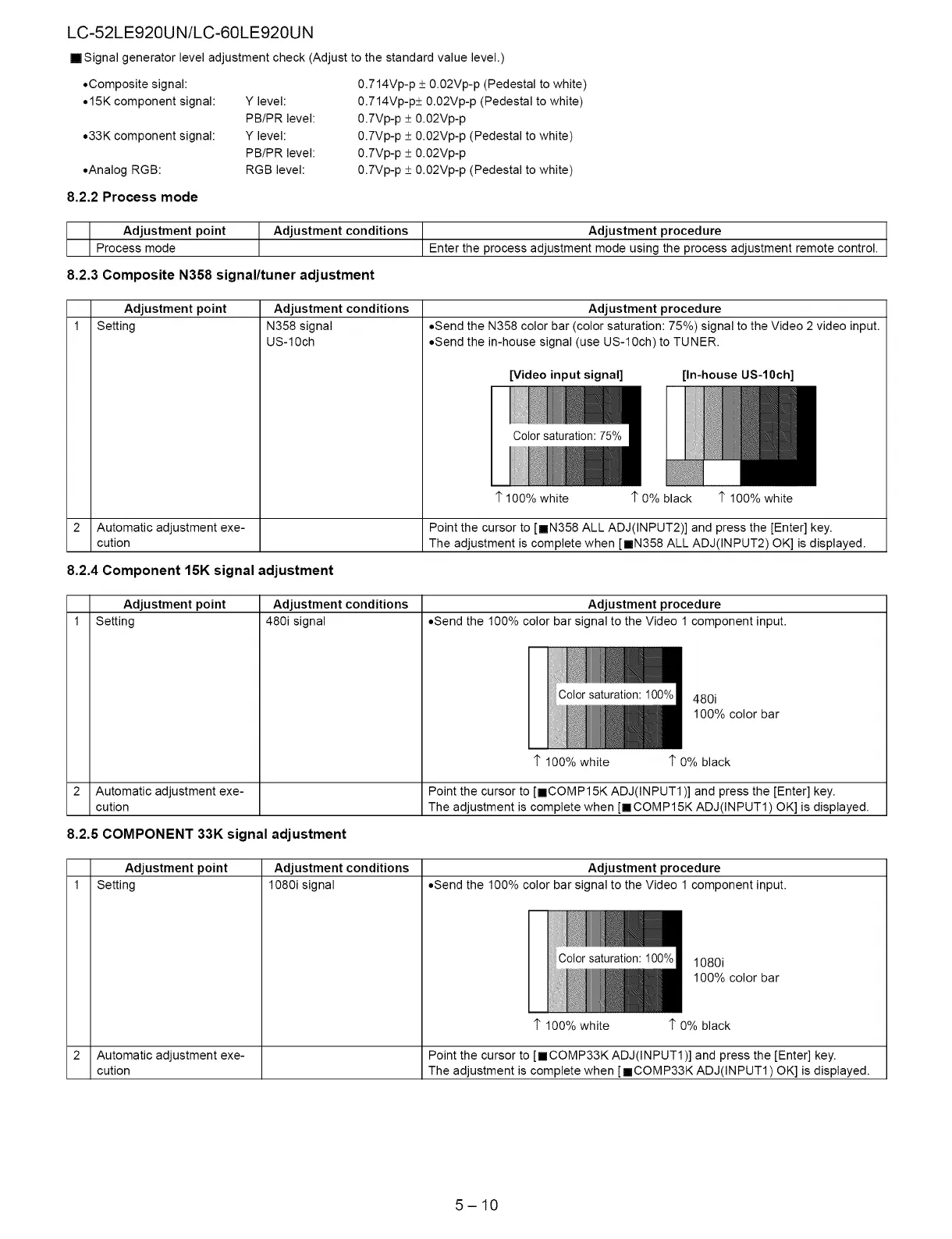

LC-52LE920UN/LC-60LE920UN
M@ Signal generator level adjustment check (Adjust to the standard value level.)
eComposite signal:
e15K component signal:
33K component signal:
eAnalog RGB:
8.2.2 Process mode
Y level:
PB/PR level:
Y level:
PB/PR level:
RGB level:
0.714Vp-p + 0.02Vp-p (Pedestal to white)
0.714Vp-p+ 0.02Vp-p (Pedestal to white)
0.7Vp-p = 0.02Vp-p
0.7Vp-p = 0.02Vp-p (Pedestal to white)
0.7Vp-p = 0.02Vp-p
0.7Vp-p = 0.02Vp-p (Pedestal to white)
Adjustment point Adjustment conditions Adjustment procedure
Process mode Enter the process adjustment mode using the process adjustment remote control.
8.2.3 Composite N358 signal/tuner adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 | Setting N358 signal
US-10ch
eSend the N358 color bar (color saturation: 75%) signal to the Video 2 video input.
eSend the in-house signal (use US-10ch) to TUNER.
[Video input signal] [In-house US-10ch]
Color saturation: 75%
T 100% white T 0% black T 100% white
2 | Automatic adjustment exe-
cution
Point the cursor to [gyN358 ALL ADJ(INPUT2)] and press the [Enter] key.
The adjustment is complete when [miN358 ALL ADJ(INPUT2) OK] is displayed.
8.2.4 Component 15K signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 | Setting 480i signal eSend the 100% color bar signal to the Video 1 component input.
480i
100% color bar
T 0% black
2 | Automatic adjustment exe-
cution
Point the cursor to [gg COMP15K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [mf COMP15K ADJ(INPUT1) OK] is displayed.
8.2.5 COMPONENT 33K signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 | Setting 1080i signal eSend the 100% color bar signal to the Video 1 component input.
{080i
100% color bar
? 100% white T 0% black
2 | Automatic adjustment exe-
cution
Point the cursor to [my COMP33K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ giCOMP33K ADJ(INPUT1) OK] is displayed.
5-10
