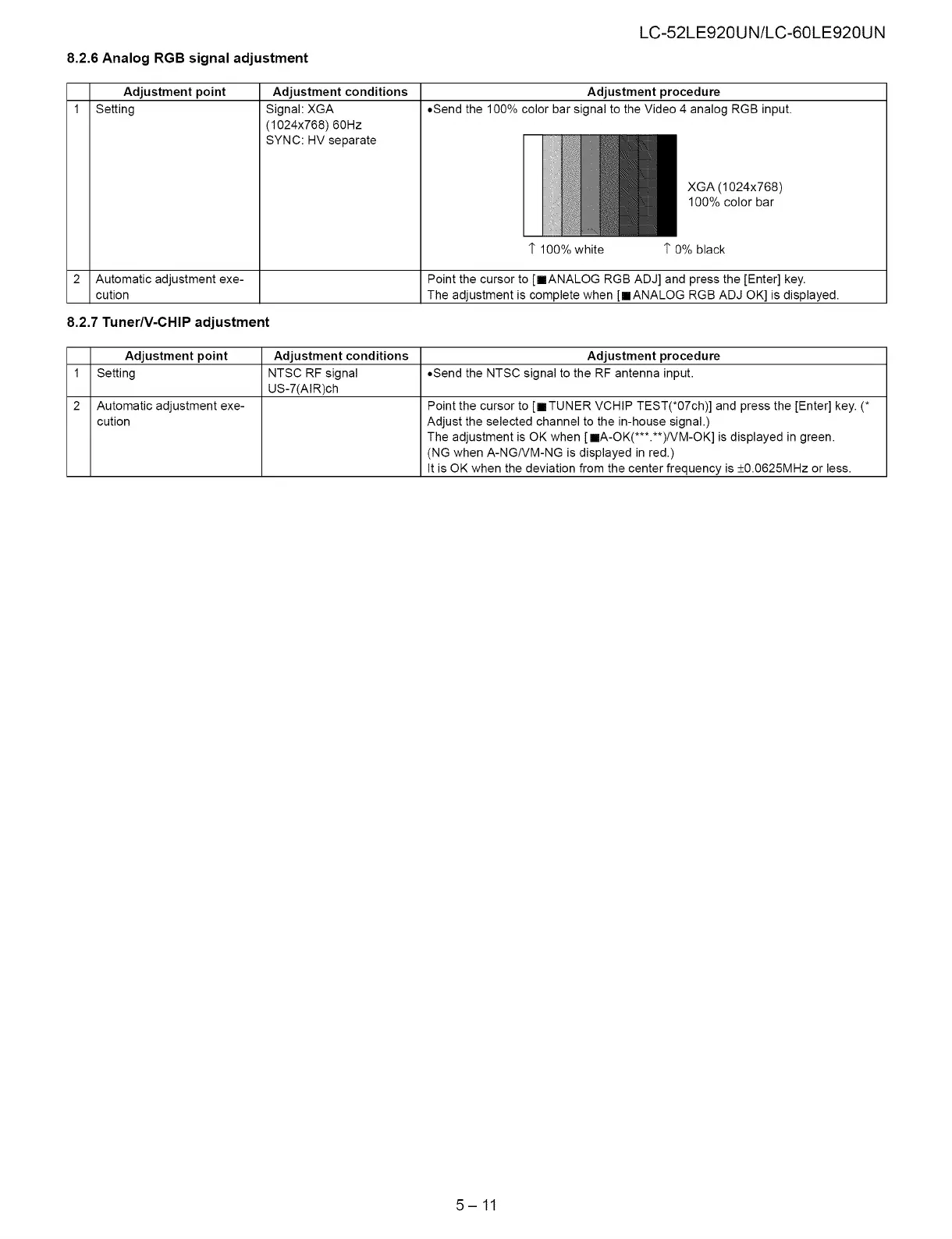

8.2.6 Analog RGB signal adjustment
LC-52LE920UN/LC-60LE920UN
Adjustment point Adjustment conditions Adjustment procedure
Setting Signal: XGA
(1024x768) 60Hz
SYNC: HV separate
eSend the 100% color bar signal to the Video 4 analog RGB input.
XGA (1024x768)
100% color bar
T 100% white T 0% black
2 | Automatic adjustment exe- Point the cursor to [mi ANALOG RGB ADJ] and press the [Enter] key.
cution The adjustment is complete when [mi ANALOG RGB ADJ OK] is displayed.
8.2.7 Tuner/V-CHIP adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 | Setting NTSC RF signal eSend the NTSC signal to the RF antenna input.
US-7(AIR)ch
2 | Automatic adjustment exe- Point the cursor to [mi TUNER VCHIP TEST(*07ch)] and press the [Enter] key. (*
cution Adjust the selected channel to the in-house signal.)
The adjustment is OK when [mA-OK(***.**)/VM-OK] is displayed in green.
(NG when A-NG/VM-NG is displayed in red.)
It is OK when the deviation from the center frequency is +0.0625MHz or less.
5-11
