Sharp LC-52SB57U User Manual

LC-46SB57U/LC-52SB57U
23
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[10] SUPPLIED ACCESSORIES
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[9] LCD MODULE Assembly (LC-52SB57U)
1 R1LK520D3LW80Z EY X 52" LCD Panel Module Unit (LK520D3LW80Z2)
2 Not Available - - Bezel Ass'y
3 Not Available - - BL Chassis Ass'y
4 LHLDZA963WJKZ AB J Holder, x4
5 QSOCFA008WJZZ AD J Socket, x18
6 RLMPLA033WJN1 AR J Lamp, x18
7 CHLDZB353WJ01 AV J Lamp Holder Unit
8 CHLDZB354WJ01 AV J Lamp Holder Unit
9 PCOVUA158WJZZ BD J Diffusion Plate
10 PSHEPA874WJZZ BB J Lens Sheet
11 RUNTKA528WJN1 BF J Inverter Unit-1
12 RUNTKA529WJN1 BF J Inverter Unit-2
13 RUNTKA530WJZZ AP J GND-PWB (INVERTER GND Unit-1)
14 RUNTKA531WJZZ AP J GND-PWB (INVERTER GND Unit-2)
15 PCOVWA061WJKZ AK J Cover
16 PCOVWA062WJKZ AH J Cover
17 QPWBM0566TPZZ AG J CS-FPC
18 QPWBM0574TPZZ AG J CS-FPC
19 CPWBX4023TPXZ BW J C-PWB (LCD Control Unit)
20 RCORFA061WJZZ AG J Ferrite Core, x2
21 XHPS830P06WS0 AA J Screw, x10 (for Inverter Unit x4, for Cover x6)
22 LX-HZA039WJF7 AB J Screw, x16 (for BL Chassis Ass'y)
23 LX-HZA047WJF7 AB J Screw, x2 (for BL Chassis Ass'y)
24 LX-HZA046WJF7 AB J Screw, x4 (for GND-PWB)
25 LX-HZA045WJF7 AB J Screw, x6 (for C-PWB)
26 LHLDZB067WJKZ J Inverter Spacer
[10] SUPPLIED ACCESSORIES
X1 LHLDWA173WJKZ AE J Cable Clamp
!
X2 QACCDA066WJPZ AP X AC Cord
X3 RRMCGA667WJSA AN X Remote Control Unit
X4 TCADEA243WJZZ AD X Enquete Card
X5 TCAUZA396WJZZ AC N X Transition Note
X6 TiNS-E178WJZZ AN N X Operation Manual (English)
X7 TiNS-E179WJZZ AN N X Operation Manual (French)
X8 TiNS-E180WJZZ AN N X Operation Manual (Spanish)
X9 Not Available - - "AAA" Size Battery
X10 CDAi-A502WJ01 BM X Stand Unit
X10-1 CDAI-A502WJ02 N X Stand Base
X10-2 LANGKB757WJZZ N X Supporting Post, x2
X10-3 CX-BZA194WJ05 N X Screws Ass'y
X10-4 UKOGLA012WJZZ X Tool for Stand

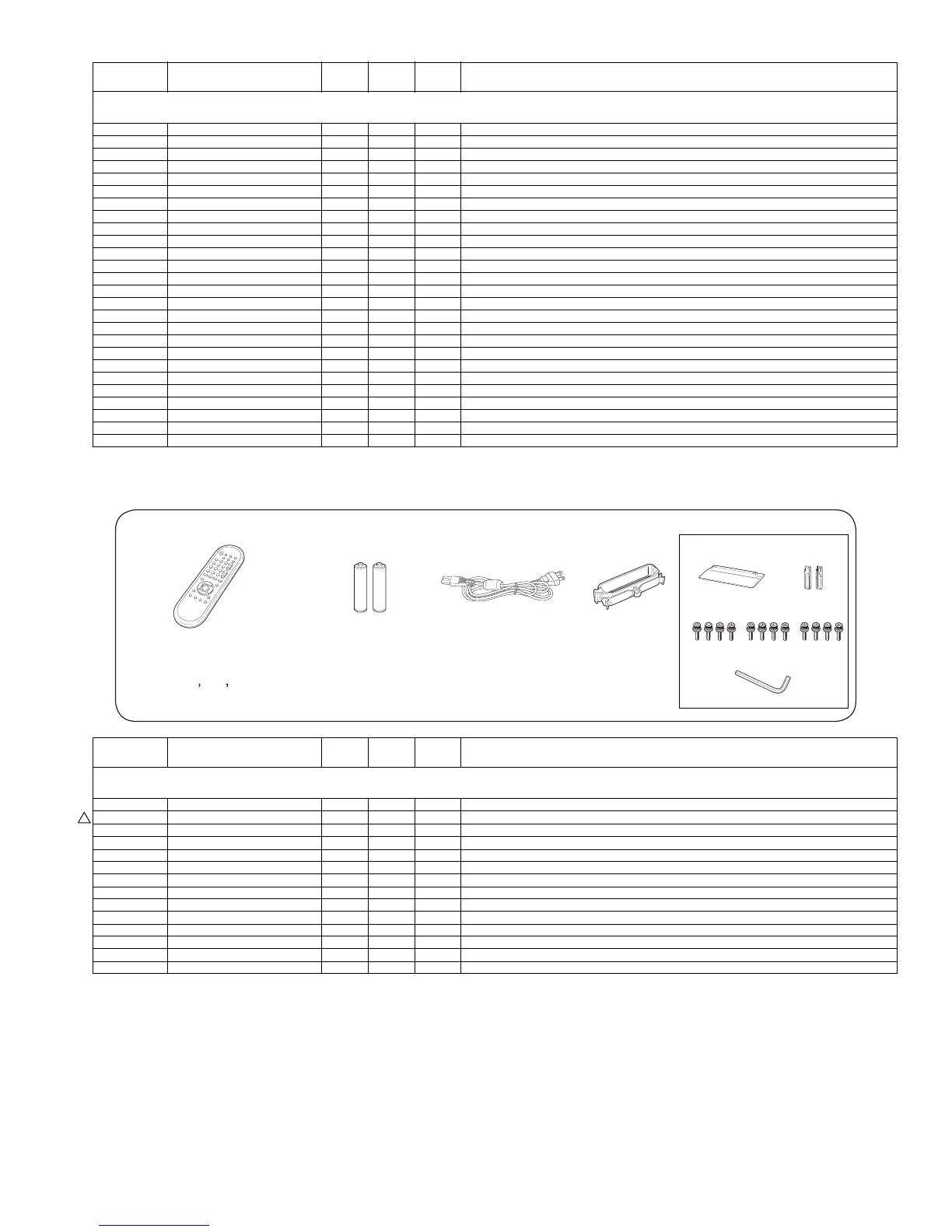

Remote control unit “AA” size battery AC cord
Stand unit
Cable clamp
Operation manual Enquete Card
X1X2
X3
X9
X6 X7 X8 X4
Transition Note
X5
X10
X10-1 X10-2
X10-3
X10-4
