LC-46SB57U/LC-52SB57U
4 – 2

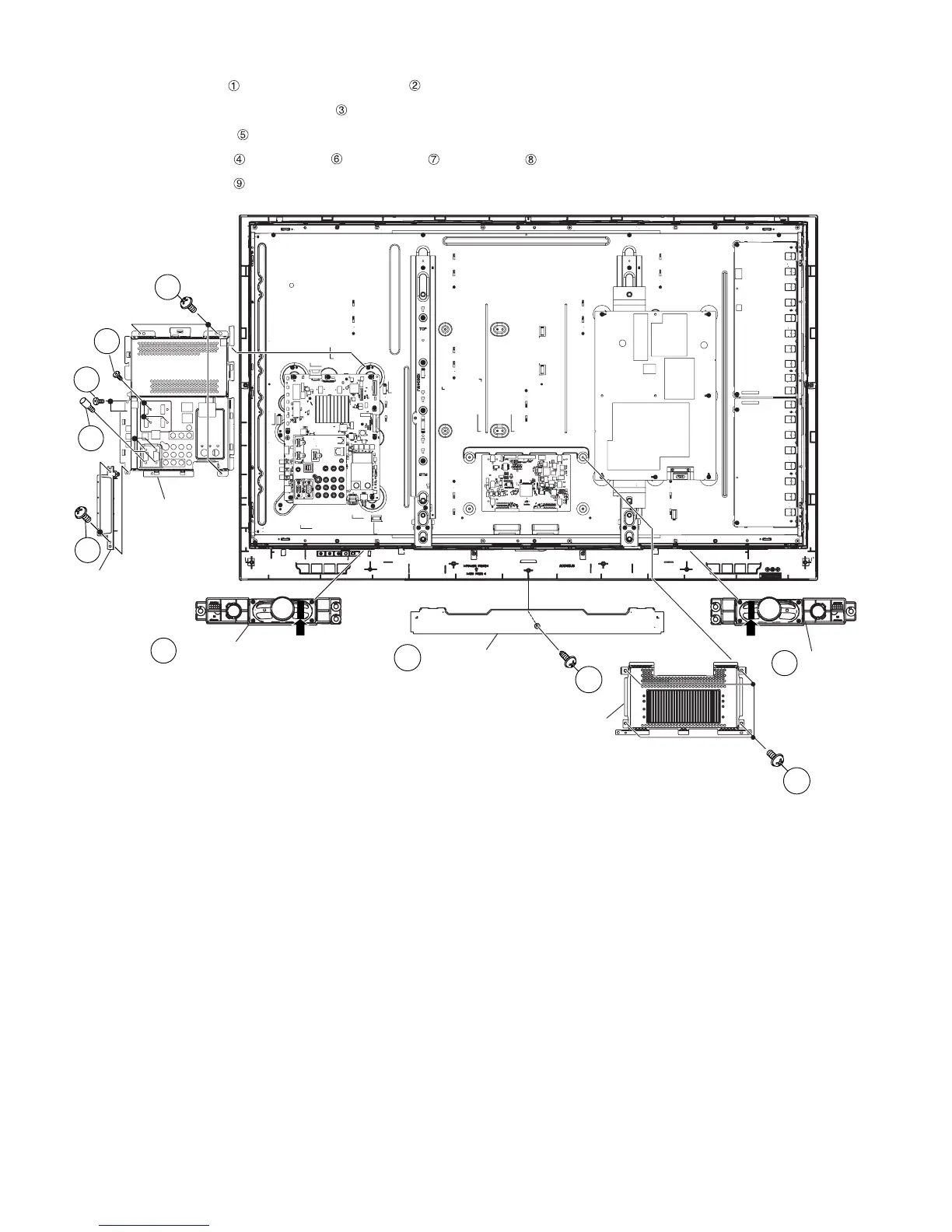

2. Removing of Bottom Cover, Speaker-L/R, Side AV Cover, Main PWB Shield and Control Shield.
1. Remove the 1 lock screw and detach the Bottom Cover .
2. Disconnect SP wire. Detach the Speaker-L/R .
3. Remove the 2 lock screws and detach the Side AV Cover Ass’y.
4. Remove the 2 lock screws , 3 lock screws , 4 lock screws , 3 lock screws and detach the Main PWB Shield.
5. Remove the 4 lock screws , and detach the Control Shield Ass’y.
Main PWB
Shield
Side AV Cover Ass'y
5
7
4
6
3
3
Control Shield Ass'y
9
8
Speaker-R
SP
Speaker-L
SP
Bottom Cover
1
2
