Sharp LC-52SB57U - Removing of Connector

LC-46SB57U/LC-52SB57U
4 – 9

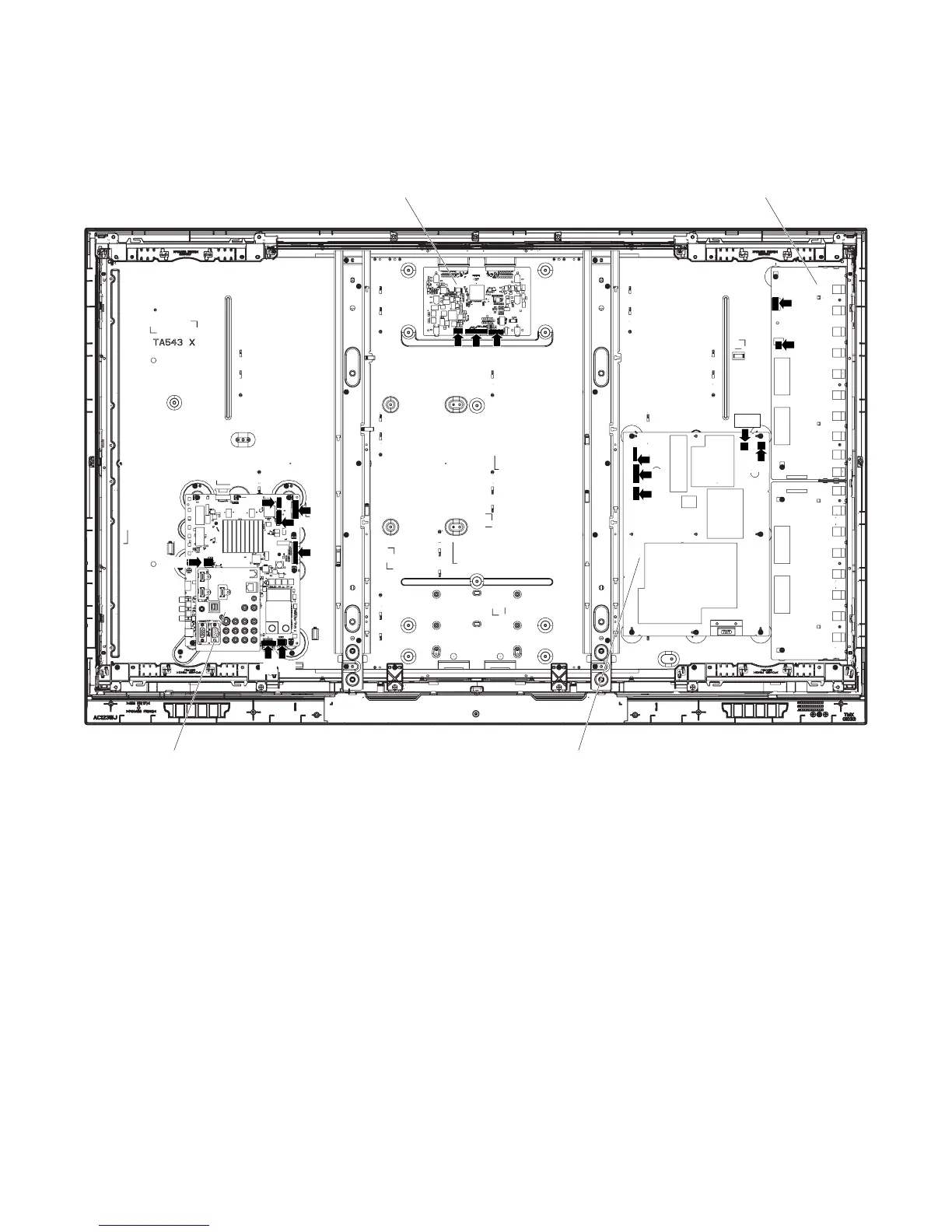

3. Removing of Connectors.
1. Disconnect the following connectors from MAIN Unit. (LB1 , LP, PD, LW, RA, KM, SP)
2. Disconnect the following connectors from POWER Unit. (LB1, PD, PL, LB2, LA)
3. Disconnect the following connectors from INVERTER-1 Unit. (LB2, LA)
4. Disconnect the following connectors from LCD Control Unit. (LP, LW, PL)
LW
PL
LP
RA
LW
PD
PD
KM
LB1
PL
SP
LP
LB1
LB2
LA
LB2
LA
MAIN Unit
LCD Control Unit
POWER Unit
INVERTER-1 Unit
