LC-46SB57U/LC-52SB57U
4 – 1
LC-46SB57U
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-46SB57U)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws and detach the Stand Unit.
2. Remove the 4 VESA Hole Covers .
3. Remove the 1 lock screw , 4 lock screws , 9 lock screws and detach the Rear Cabinet Ass’y.

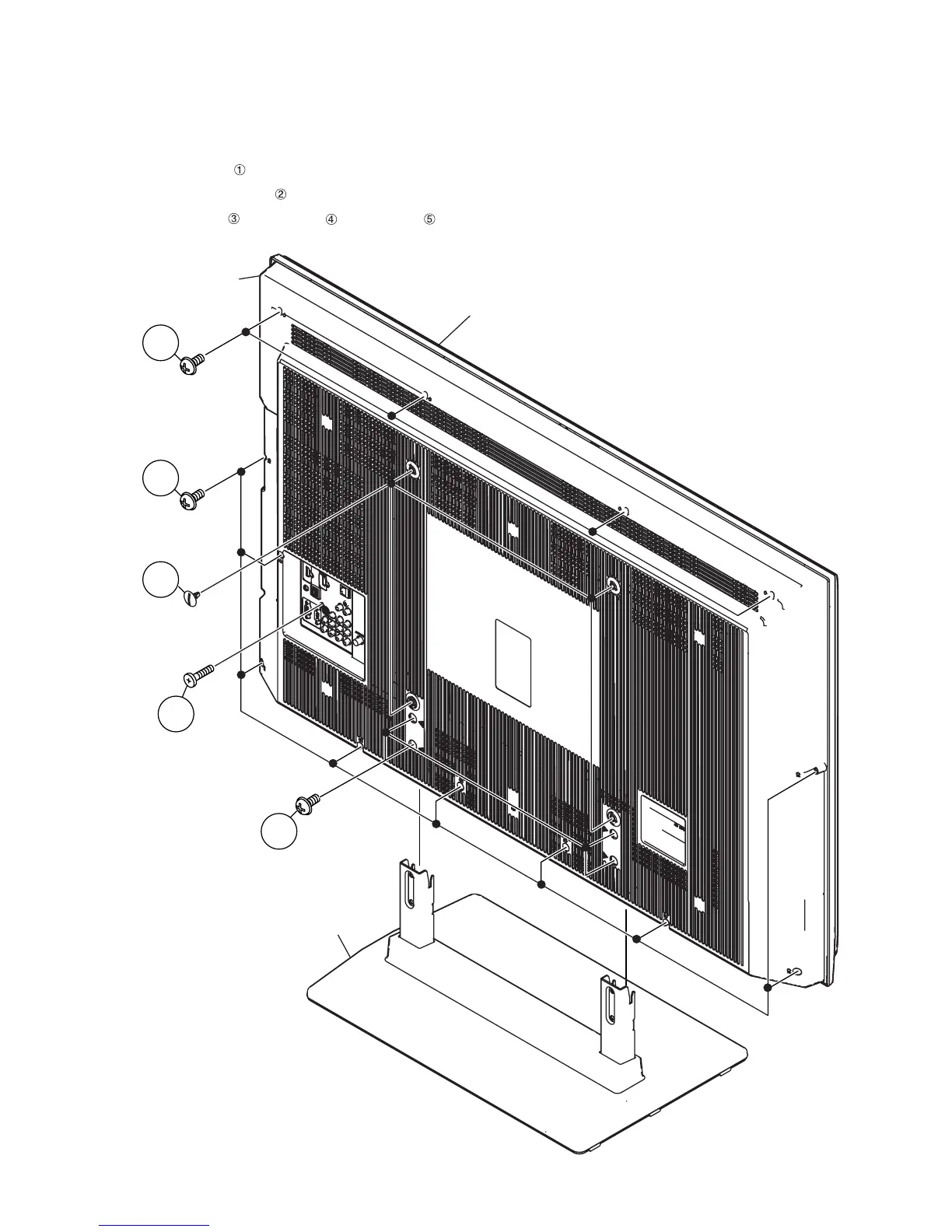

Front Cabinet Ass'y
Rear
Cabinet Ass'y
4
5
3
2
1
Stand Unit
