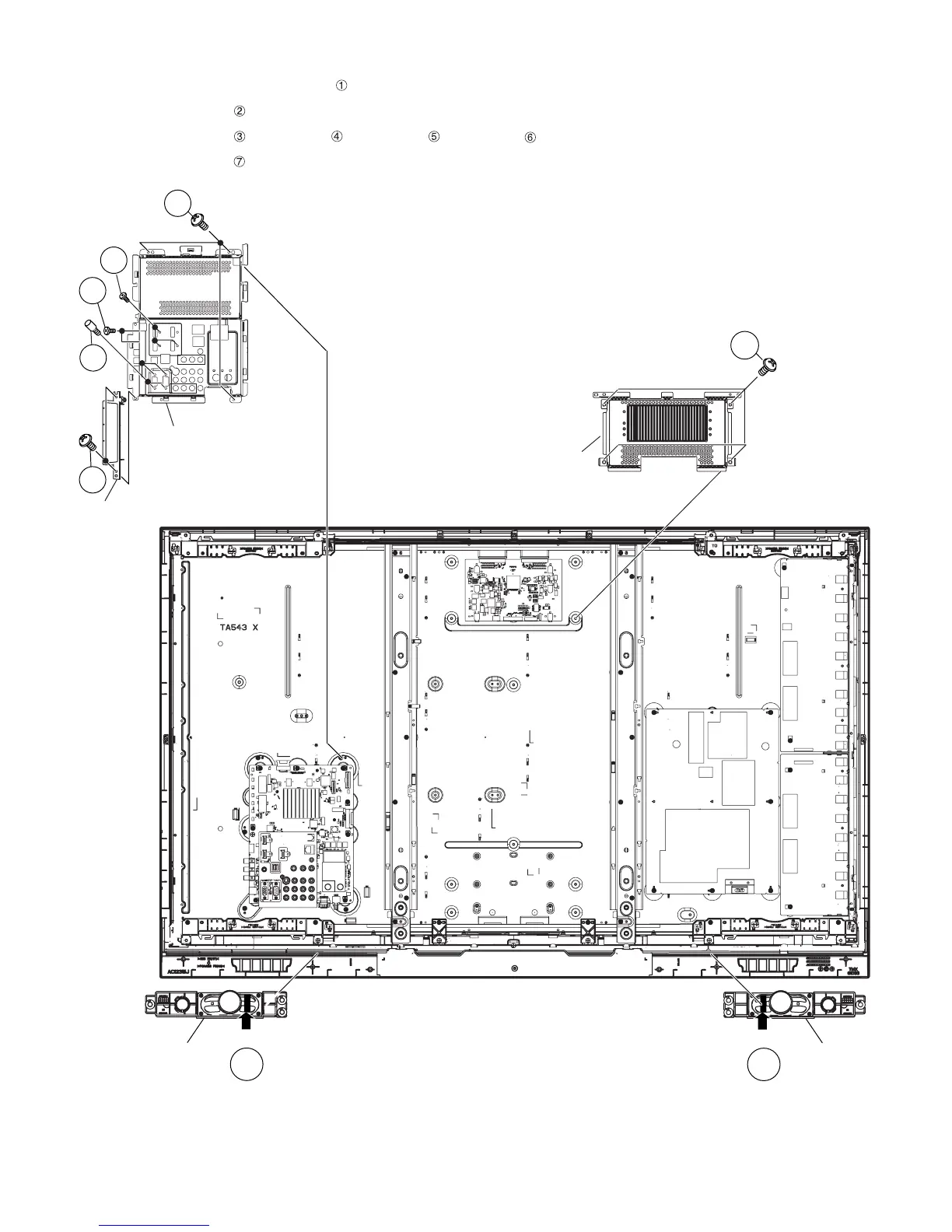

2. Removing of Speaker-L/R, Side AV Cover, Main PWB Shield and Control Shield.
1. Disconnect SP wire. Detach the Speaker-L/R .
2. Remove the 2 lock screws and detach the Side AV Cover Ass’y.
3. Remove the 3 lock screws , 4 lock screws , 2 lock screws , 3 lock screws and detach the Main PWB Shield.
4. Remove the 4 lock screws and detach the Control Shield Ass’y.
4
3
6
Main PWB
Shield
Side AV Cover Ass'y
2
5
Control Shield Ass'y
7
SP
SP
Speaker-R
Speaker-L
1
1
