LC-46SB57U/LC-52SB57U
4 – 5

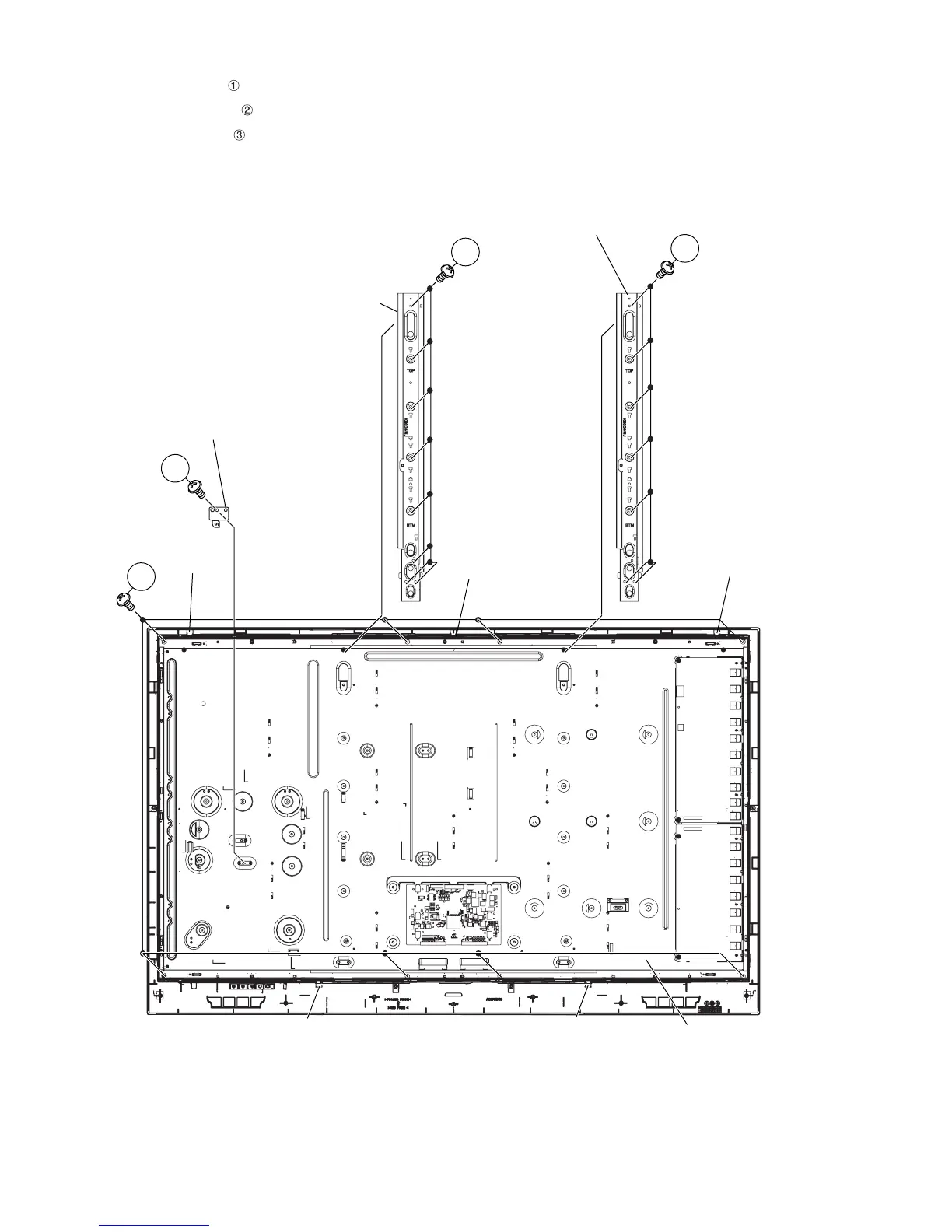

5. Removing of Main PWB Angle, Panel Support Angle and LCD Panel Module Unit.
1. Remove the 1 lock screw and detach the Main PWB Angle.
2. Remove the 16 lock screws and detach the Panel Support Angle.
3. Remove the 8 lock screws , 5 hooks and detach the LCD Panel Module Unit.
3
2
2
Panel Support Angle
LCD Panel Module Unit
Panel Support Angle
1
Main PWB Angle
Hook
Hook
Hook
Hook
Hook
