LC-46SB57U/LC-52SB57U
4 – 12

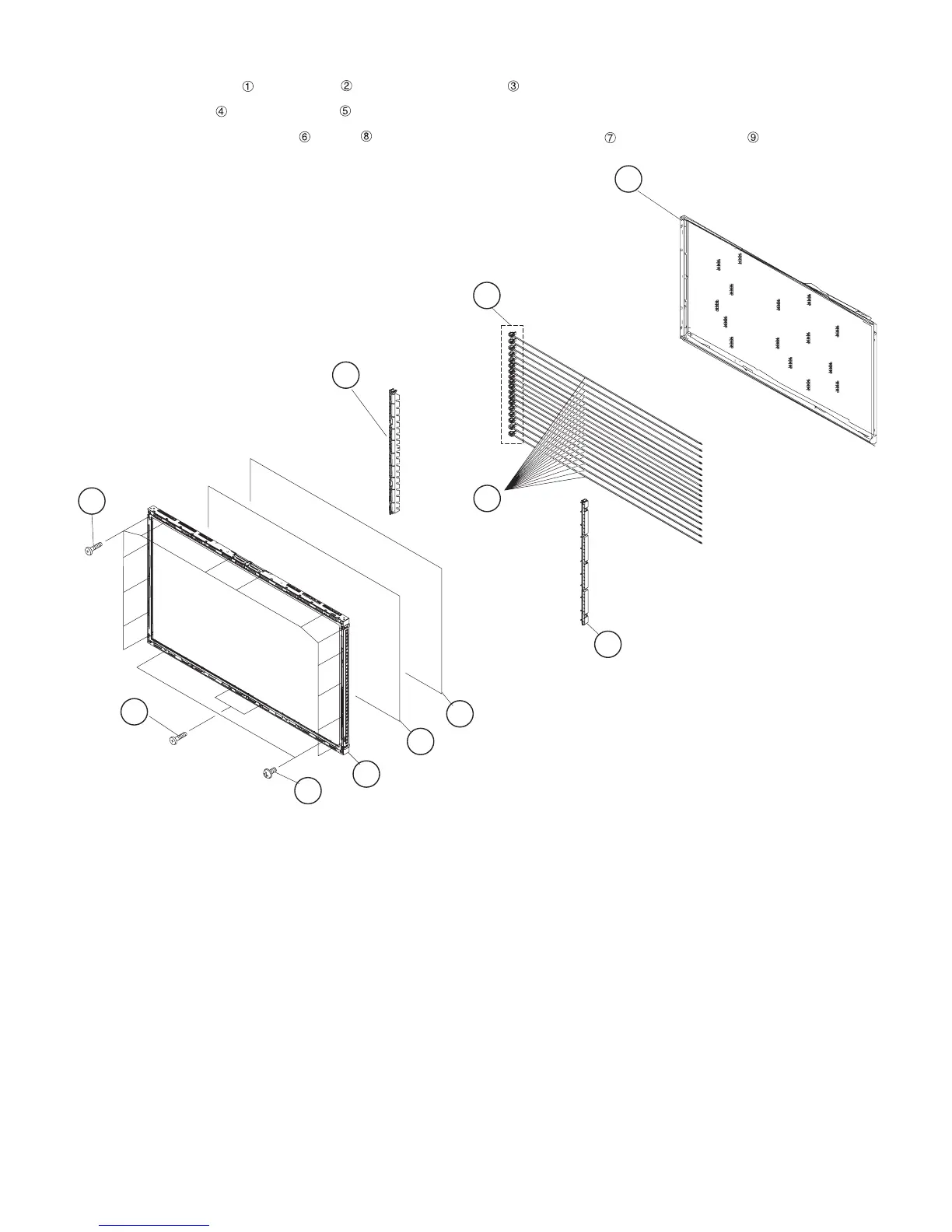

6. Removing of LCD Panel Module.
1. Remove the 16 lock screws , 2 lock screws and detach the Bezel Ass’y .
2. Detach the Lens Sheet and Diffusion Plate .
3. Detach the 2 pieces Lamp Holder Unit , Socket and detach the following 18 pieces Lamp from BL Chassis Ass'y .
3
4
5
1
2
6
8
7
6
9
1
Bezel Ass'y
Lens Sheet
Diffusion Plate
Lamp Holder Unit
Socket
BL Chassis Ass'y
Lamp Holder Unit
Lamp
