Sharp LC-60LE630U User Manual

LC-60LE630U/U(A), LC-70LE735U
3 – 1
LC60LE630U
Service Manual

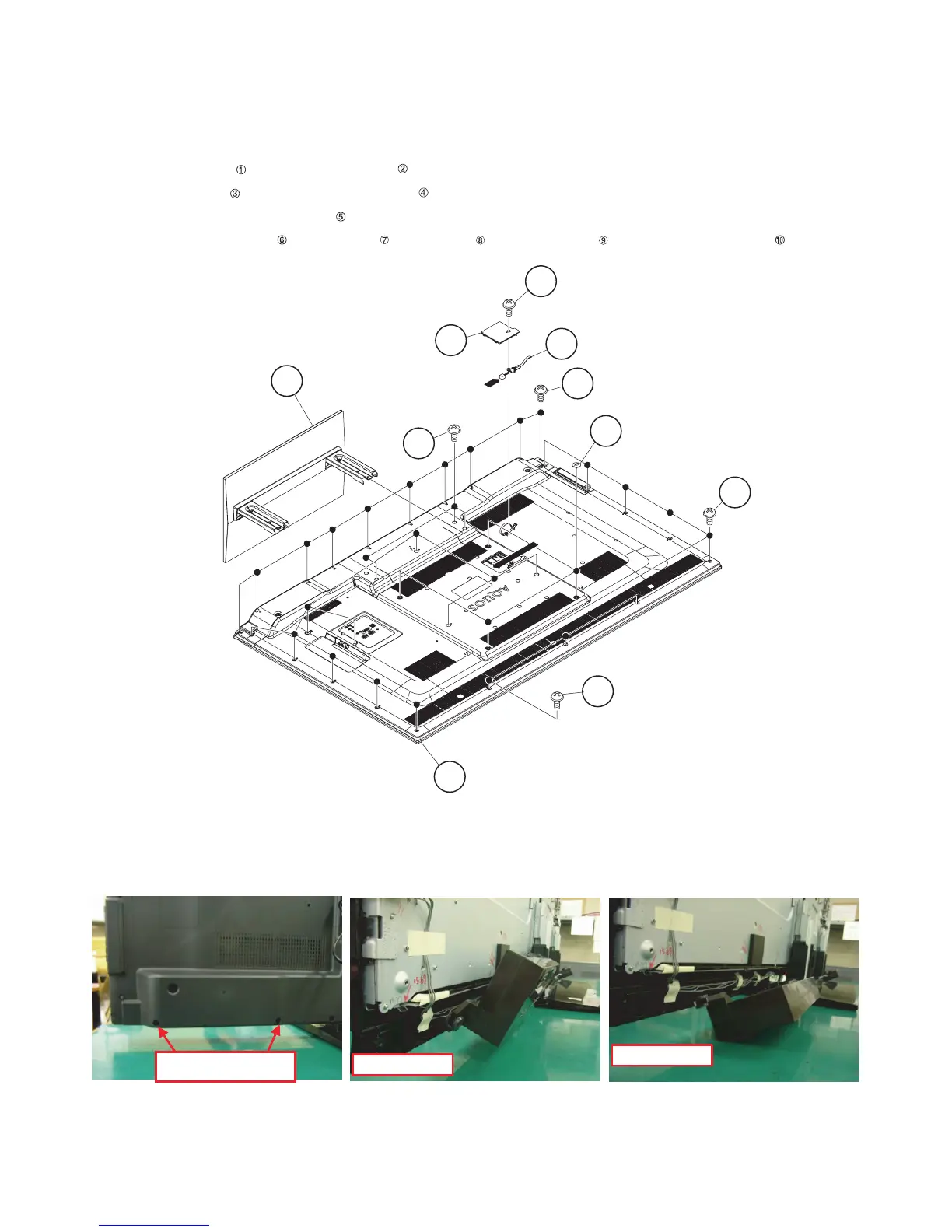

CHAPTER 3. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-60LE630U/U(A))
1. Removing of Stand Unit and Rear Cabinet.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Remove the 1 lock screw and detach the AC Cord Cover .
3. Disconnect AC wire and detach the AC Cord .
4. Remove the 4 VESA Hole Covers , 10 lock screws , 3 lock screws and 15 lock screws and detach the Rear Cabinet .
[Precaution when removing the rear cabinet]
If the rear cabinet is removed with the set upright, the speakers may fall; it results in connector disconnection. Therefore, never remove the rear cab-
inet with the set upright.
Be sure to remove the rear cabinet with the screen side down.
[Precaution when mounting the rear cabinet]
Put the speakers in place with the screen side down, and attach the rear cabinet.
Since the speakers are fixed by the rear cabinet, they cannot be fixed without the rear cabinet.
2Stand Unit
Rear Cabinet
10
4
AC Cord Cover
5
AC Cord
VESA Hole Cover
8
9
7
6
3
1
[AC]
[AC]
Screws for fixing Speaker
and Rear Cabinet
Speaker incline.
Speaker fall down.
