Sharp LC-60LE630U - Removing Speakers, KEY Unit, and Fixing Metal Angle

LC-60LE630U/U(A), LC-70LE735U
3 – 3

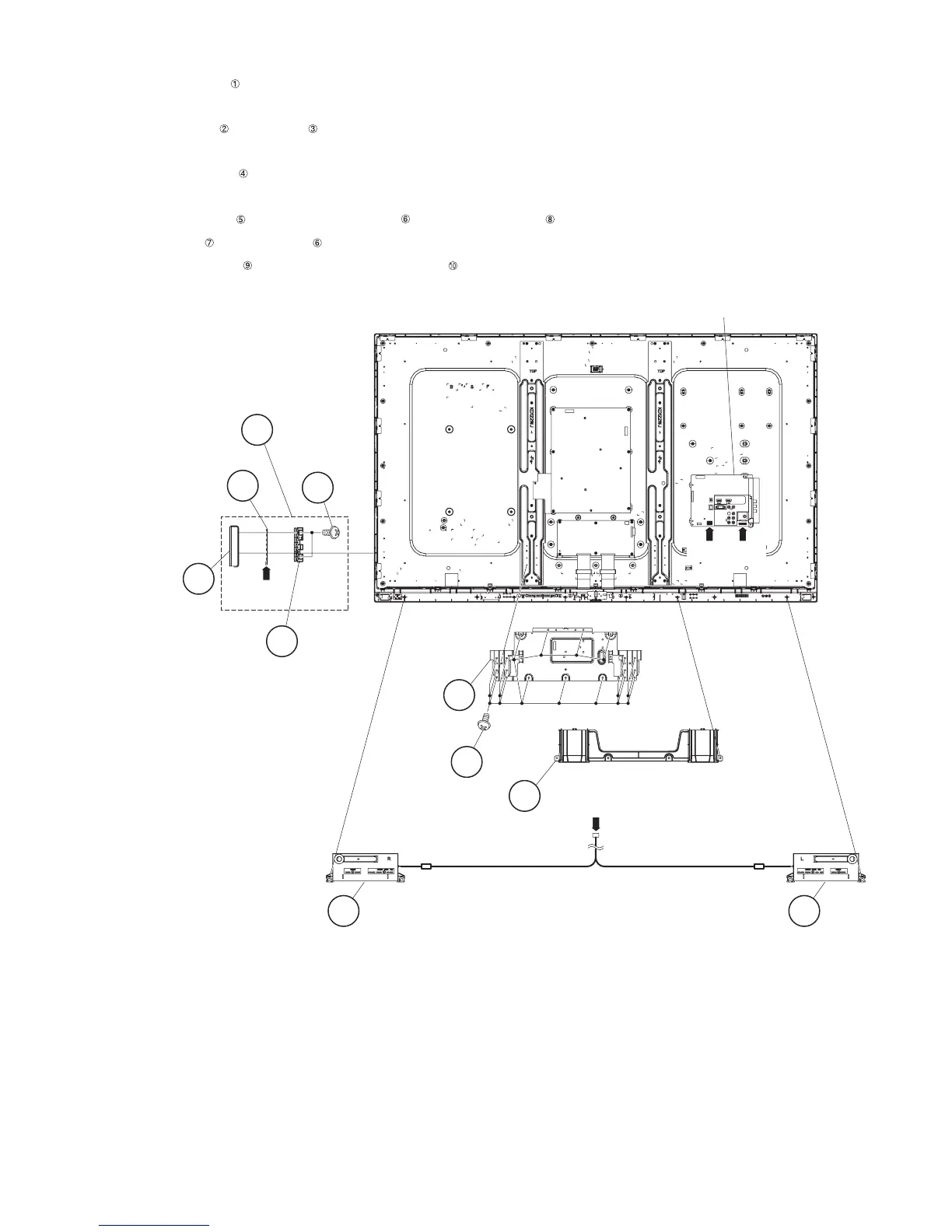

2. Removing of Speaker (L/R), KEY Unit and Fixing Metal Angle.
1. Detach the Bottom Cover
2. Disconnect the SP wire.
3. Detach the Speaker (L) , Speaker (R) .
4. Disconnect the RC wire.
5. Detach the KEY Unit Ass’y .
6. Disconnect the KM wire.
7. Remove the 2 lock screws and detach the Key Button from Key Button Cover .
8. Detach the KEY Unit from Key Button .
9. Remove the 19 lock screws and detach the Fixing Metal Angle .
2Speaker (L)3Speaker (R)
MAIN Unit
[SP] [RC]
[KM]
[SP]
7
5
4
8
6Key Button
10
9
Fixing
Metal
Angle
1Bottom
Cover
KEY Unit
KEY Unit Ass'y
Key Button
Cover
