Sharp LC-60LE630U - Removing Major Internal Units and LCD Panel

LC-60LE630U/U(A), LC-70LE735U
3 – 5

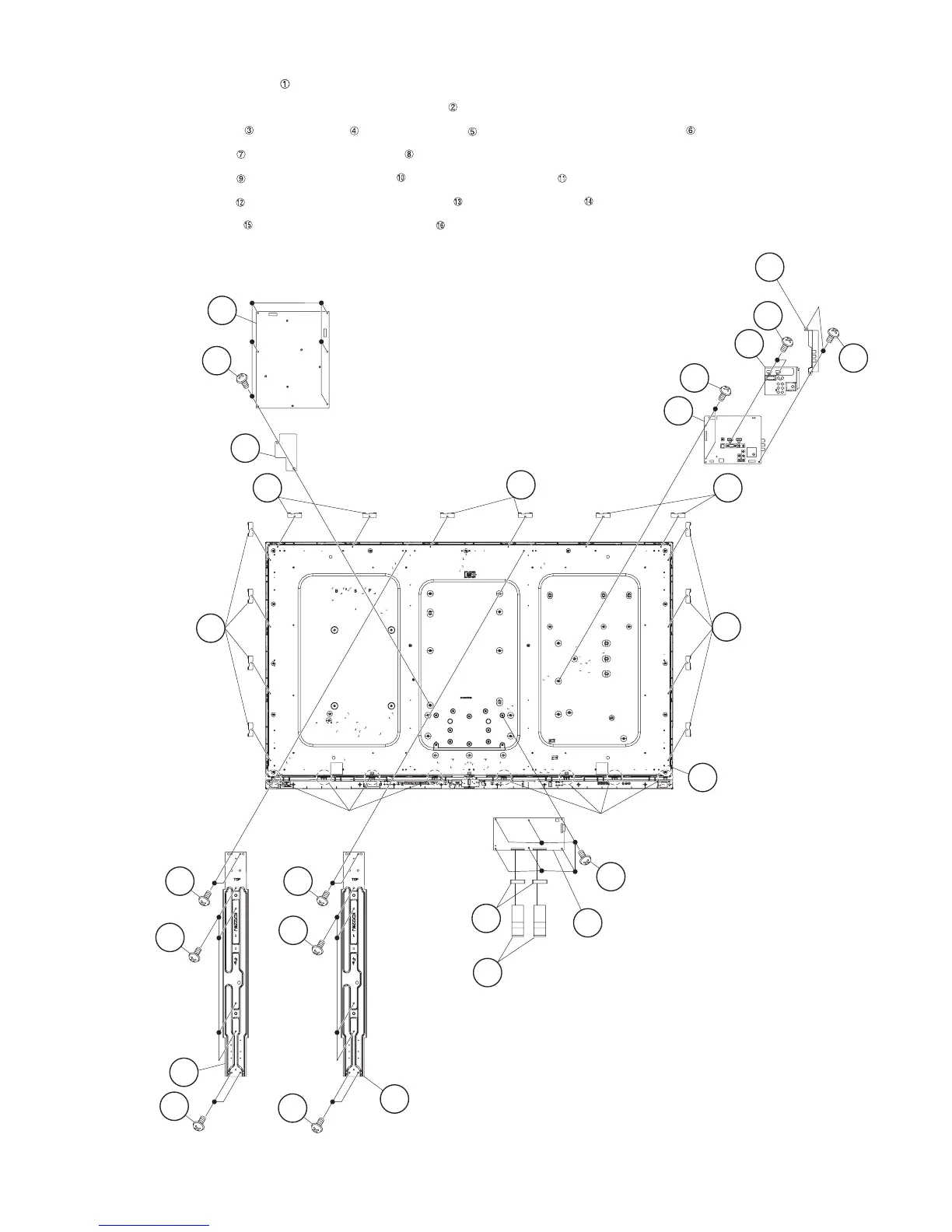

4. Removing of 60” LCD Panel Module Unit, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Detach the 14 Fixing Metal Angles .
2. Remove the 8 Hooks and detach the 60” LCD Panel Module Unit .
3. Remove the 2 FFCs (80pin) , 2 Ferrite Cores and 6 lock screws and detach the LCD CONTROL Unit .
4. Remove the 2 lock screws and detach the Earth Angle .
5. Remove the 4 lock screws and detach the MAIN Unit and Terminal Angle (Side) .
6. Remove the 6 lock screws and detach the POWER/DRIVE Unit and AC Cord Barrier .
7. Remove the 16 lock screws and detach the 2 Center Angles .
60" LCD Panel
Module Unit
2
LCD CONTROL Unit
6
16
Center
Angle
1Fixing Metal
Angle
4Ferrite Core
1 Fixing Metal
Angle
15
15
15
15
16 Center
Angle
15
15
Hook
3 FFC (80pin)
Hook
1Fixing Metal
Angle
14AC Cord Barrier
1 Fixing Metal
Angle
1 Fixing Metal
Angle
13
POWER/DRIVE Unit
12
11Terminal Angle
(Side)
8
Earth Angle
5
7
9
10
9
MAIN Unit
