LC-60LE630U/U(A), LC-70LE735U
5 – 11
1) Power red/green LED

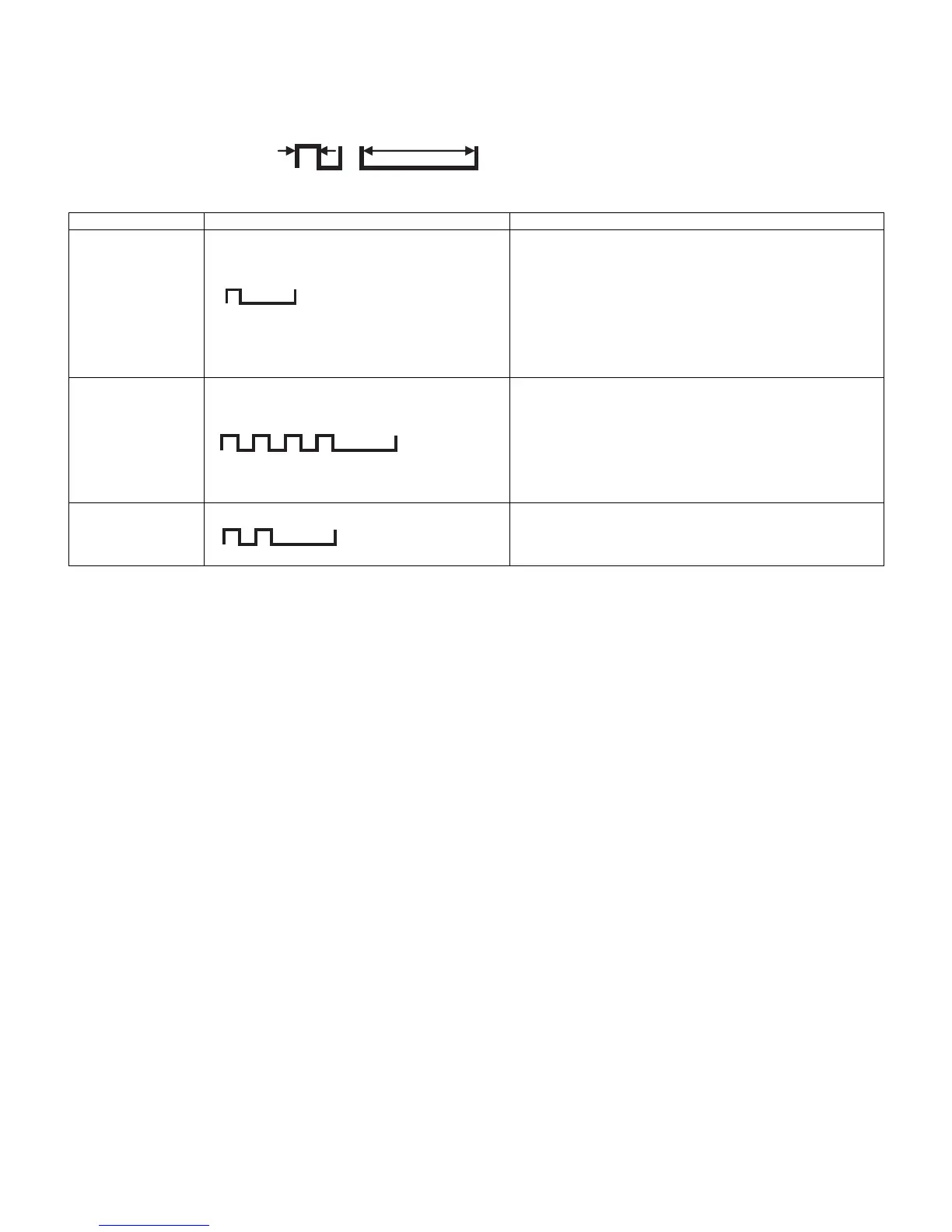

LED flashing timing chart for error notification.
Error type Power red/green LED operation (1 cycle) Pins are microprocessor pins.
Lamp error
Flashes once: Fast
[Power red LED]
H: On
L: Off
Judged by the ERR_PNL port. Confirmed after 10 consecutive
detections at 500 ms intervals (detected only when the backlight is
on).
[Released]
• Execute AC_ON with [INPUT] and [VOL-DOWN] on the unit
down. Then execute the function of “L ERR RESET” in the
adjustment process mode menu.
• Continuous illumination for 15 minutes.
NOTE: After five detection counts, the lamp cannot be activated.
Temperature error
Flashes 4 times
[Power green LED]
H: On
L: Off
Judged by monitoring temperature with the temperature sensor.
When the panel temperature is 58°C or more, caution is dis-
played. If the panel temperature is 60°C or more, error standby is
activated.
[Released]
Reduce the value of TEMP CAUTION (temperature caution
threshold) and TEMP SHUTDOWN (temperature protection
threshold) in the adjustment process mode menu.
Error Type
Panel power error
Flash 2 times
H: On
L: Off
Judged panel power supply by the DET_POW_port.
Conformed after 2 consecutive detections at 16mS intervals.
400ms 1600ms
To Next Page
