LC-60LE635E/636E/638E (1st Edition)
3 – 1
LC60LE635E
Service Manual
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS (LC-60LE635E/636E)

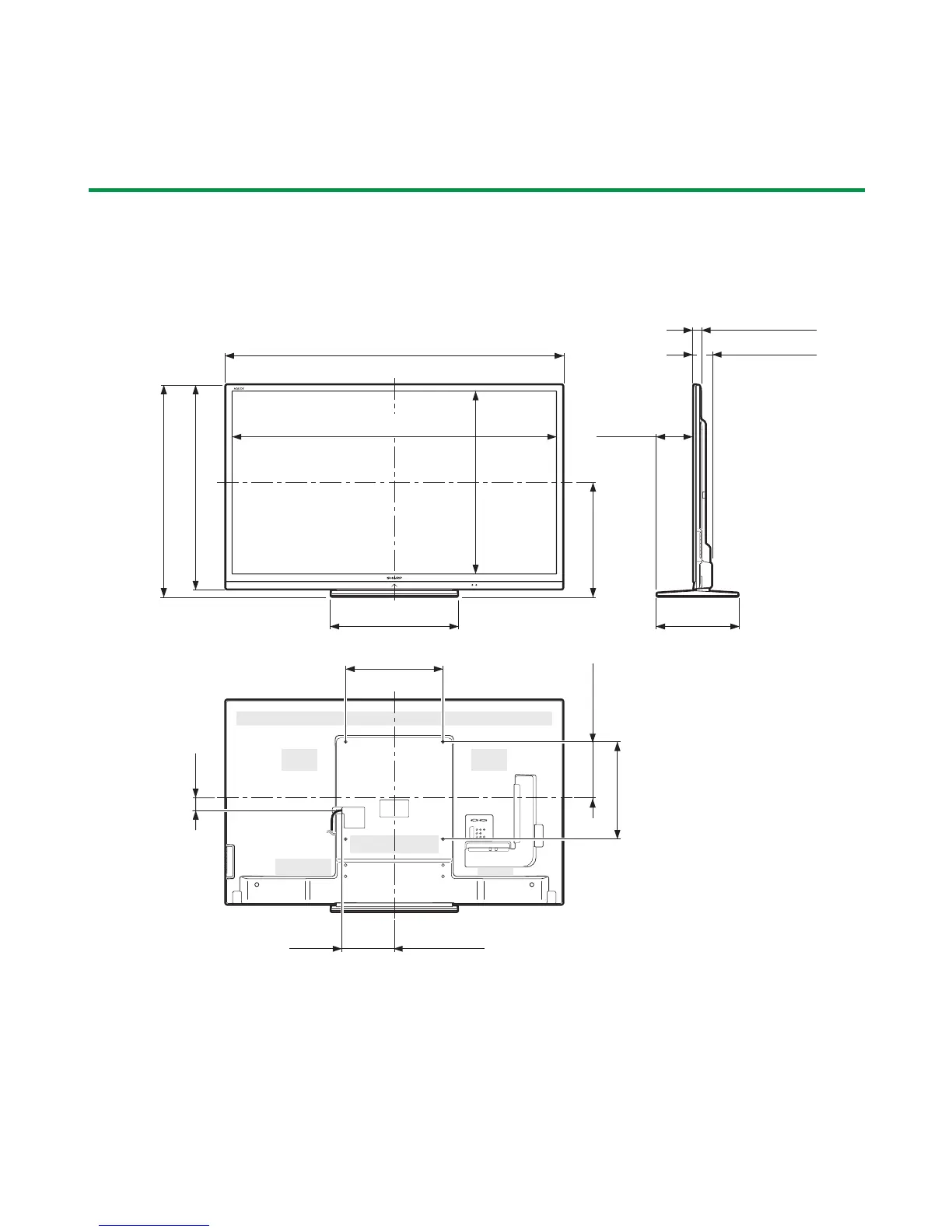

Dimensional drawings
LC-60LE635E
LC-60LE635RU
LC-60LE636E
LC-60LE636S
(1329.12)
*1
(1329,12)
*1
(872)
(839)
(1383)
(747.63)
*1
(747,63)
*1
(536)
(470)
(400)
(52)
(215)
(230)
(400)
(149)
(333)
(72.0) (72,0)
(26.4) (26,4)
*2
Active area
Thinnest part
NOTE
Dimensions do not include protrusions such as screws and some parts.
Unit:mm
*1
*2
