LC-60LE635E/636E/638E (1st Edition)
5 – 17
8.5. ADC adjustment (Component 15K)
8.6. ADC adjustment (Component 33K)
8.7. PC signal adjustment (ANALOG D-Sub 15pin)
8.8. RGB (SCART) adjustment (RGB 15K)

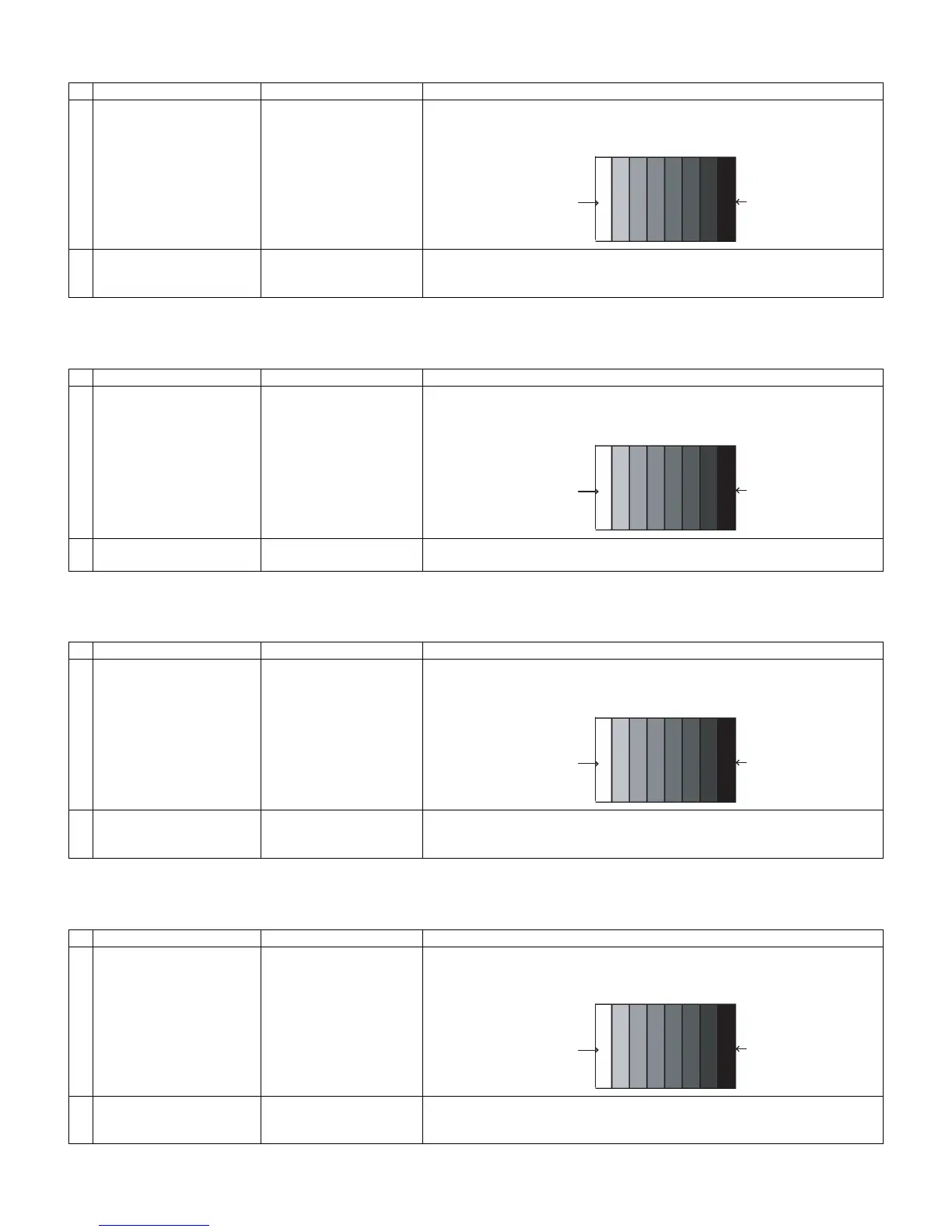

Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP15K, 50Hz
100% Full field colour bar
Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 15K 100% full field colour bar signal (100% colour
saturation) to EXT3 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[COMP15k ALL ADJ]
page 6/24
Bring the cursor on [COMP15k ALL ADJ] and press [OK].
[COMP15K ALL ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP33K, 50Hz
100% Full field colour bar
Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 33K 100% full field colour bar signal (100% colour sat-
uration) to EXT3 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[HDTV ADJ] page 7/20
Bring the cursor on [HDTV ADJ] and press [OK].
[HDTV ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
XGA, 60Hz
100% Full Field Colour Bar
Signal
[Terminal]
PC IN
• Feed the XGA 60Hz 100% full field colour bar signal (100% colour saturation)
to PC IN.
2 Auto adjustment
performance
Adjustment process
[ANALOG PC ADJ] menu
page 8/20
Bring the cursor on [ANALOG PC ADJ] and press [OK].
[ANALOG PC ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
RGB 15K, 50Hz
100% Full field colour bar
signal
[Terminal]
EXT1 SCART RGB IN
• Feed the RGB 15k 50Hz 100% full field colour bar signal (100% colour satura-
tion) to EXT1 SCART IN.
2 Auto adjustment
performance
Adjustment process
[SCART RGB ADJ] menu
page 9/20
Bring the cursor on [SCART RGB ADJ] and press [OK].
[SCART RGB ADJ OK] appears when finished.
To Next Page
