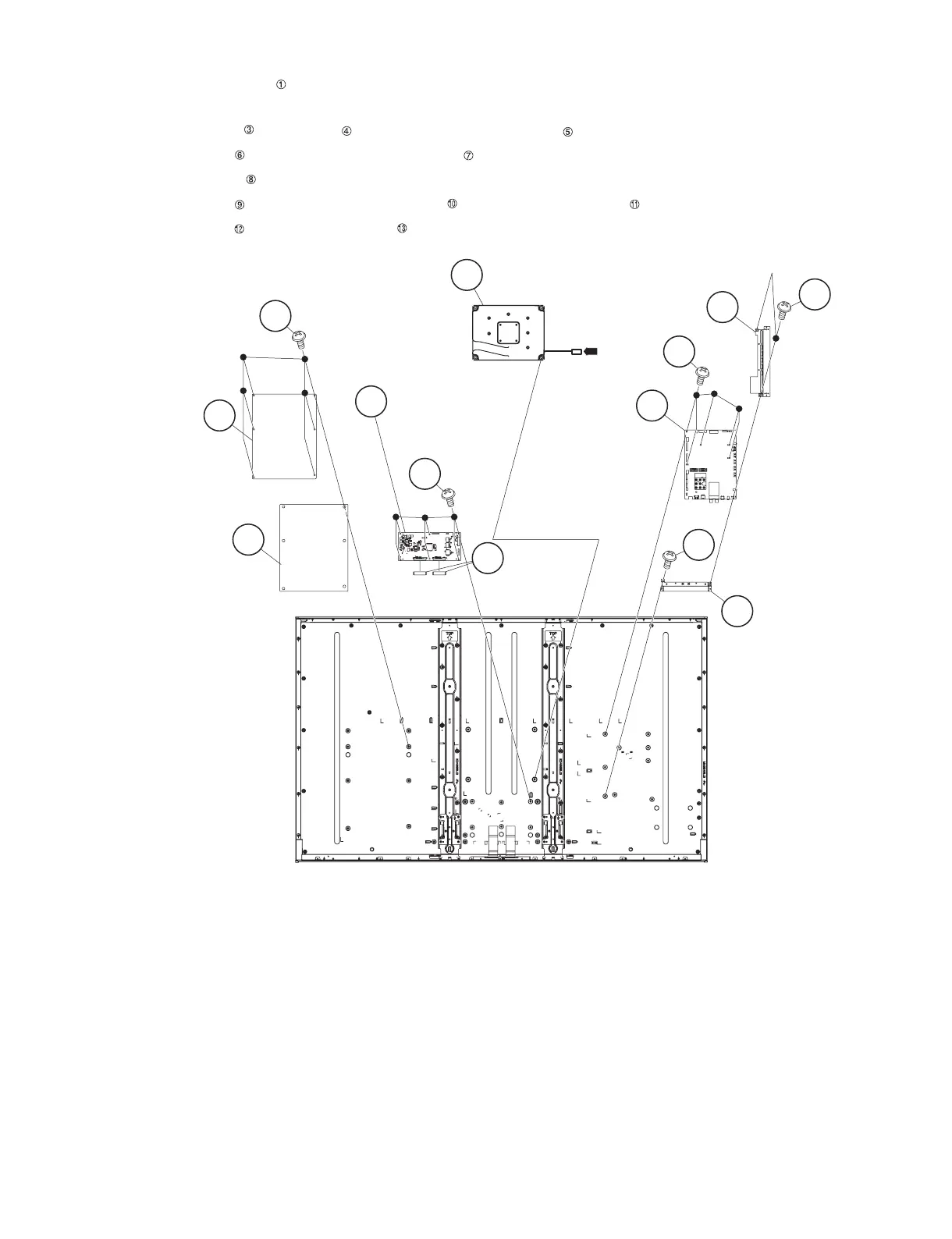

4. Removing of Speaker Unit (Woofer), LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Detach the Speaker Unit (Woofer) .
2. Disconnect the SB wire.
3. Remove the 2 Ferrite Cores , 6 lock screws and detach the LCD CONTROL Unit .
4. Remove the 6 lock screws and detach the POWER/DRIVER Unit .
5. Detach the Power Insulation .
6. Remove the 3 lock screws and detach the side Terminal angle and the Terminal Angle Width .
7. Remove the 5 lock screws and detach the MAIN Unit .
13MAIN Unit
5 LCD
CONTROL
Unit
8Power
Insulation
4
3
Ferrite
Core
12
1Speaker Unit (Woofer)
[SB]
6
7POWER/
DRIVER
Unit
11 Terminal
Angle
Width
9
10
Side Terminal
Angle
9

Sharp LC-60LE745U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	8000000:1
Viewing angle, horizontal	176 °
3D	Yes
3D type	Active
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Electronic Program Guide (EPG)	-
Product color	Black
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	170 W
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	366 mm
Height (with stand)	887 mm
Weight (with stand)	34500 g
Depth (without stand)	55 mm
Width (without stand)	1390 mm
Height (without stand)	838 mm
Weight (without stand)	27500 g
