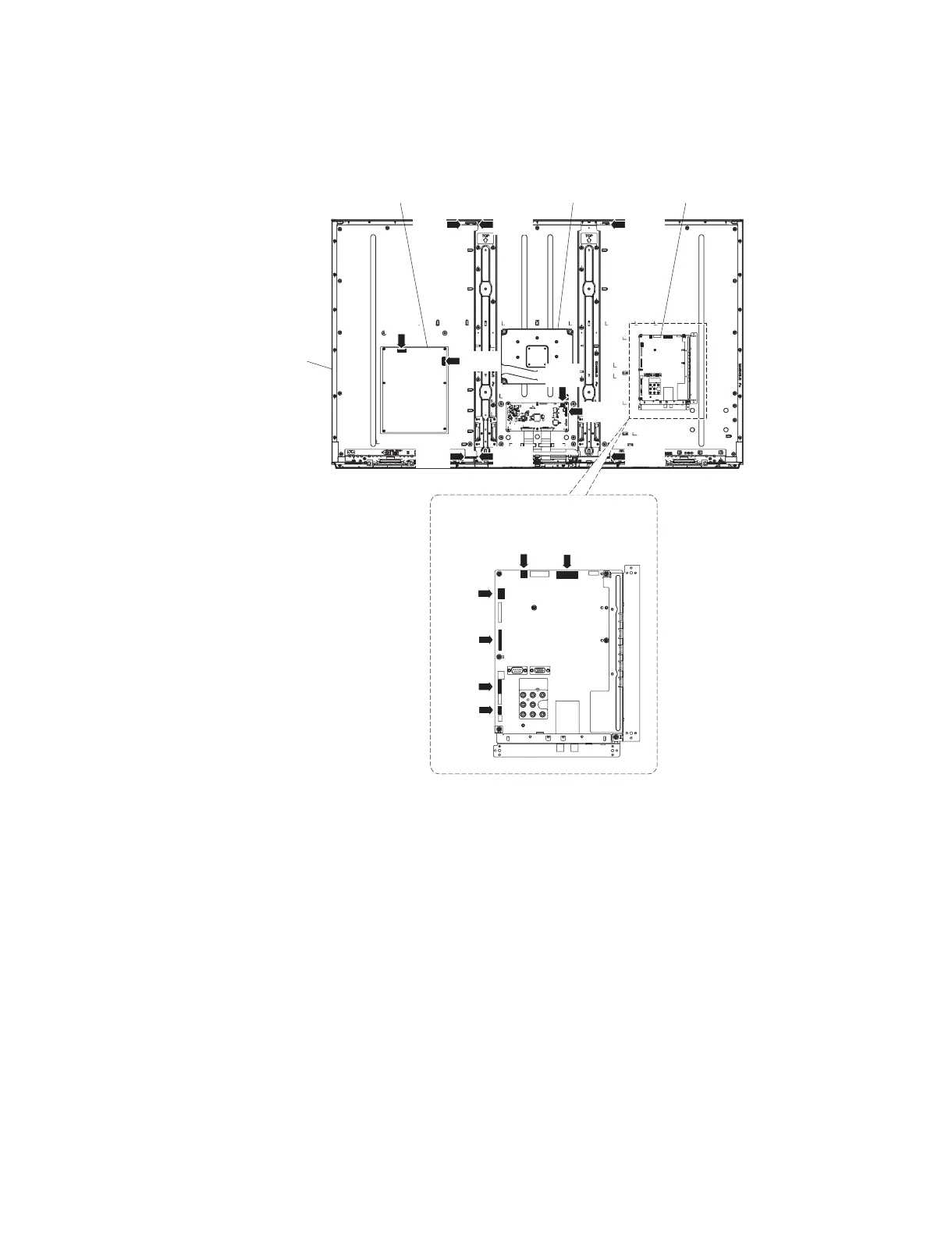

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, SB, SP, LV, RA, UB)
2. Disconnect the following connectors from the LCD CONTROL Unit. (PL, LV)
3. Disconnect the following connectors from the POWER Unit. (PD, L1)
4. Disconnect the following connectors from the S-LED Unit (L1) of LCD Panel Module Unit.
POWER Unit LCD CONTROL Unit
LCD Panel
Module Unit
MAIN Unit
MAIN Unit
[UB]
[RA]
[LV]
[PD]
[SP]
[SB]
[L1]
[L1]
[L1]
[L1]
[L1]
[L1]
[PD]
[L1]
[LV]
[PL]

Sharp LC-60LE745U Specifications

General

Display diagonal	60 \
Native aspect ratio	16:9
Native refresh rate	120 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Contrast ratio (dynamic)	8000000:1
Viewing angle, horizontal	176 °
3D	Yes
3D type	Active
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI port	No
HDMI ports quantity	4
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Electronic Program Guide (EPG)	-
Product color	Black
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	170 W
Power consumption (standby)	- W

Weight and Dimensions

Depth (with stand)	366 mm
Height (with stand)	887 mm
Weight (with stand)	34500 g
Depth (without stand)	55 mm
Width (without stand)	1390 mm
Height (without stand)	838 mm
Weight (without stand)	27500 g
