CONFIDENTIAL – DO NOT COPY
Page 9-4
File No. SG-0000239
Yes
N0
N0
Yes
Yes
Yes
N0
N0

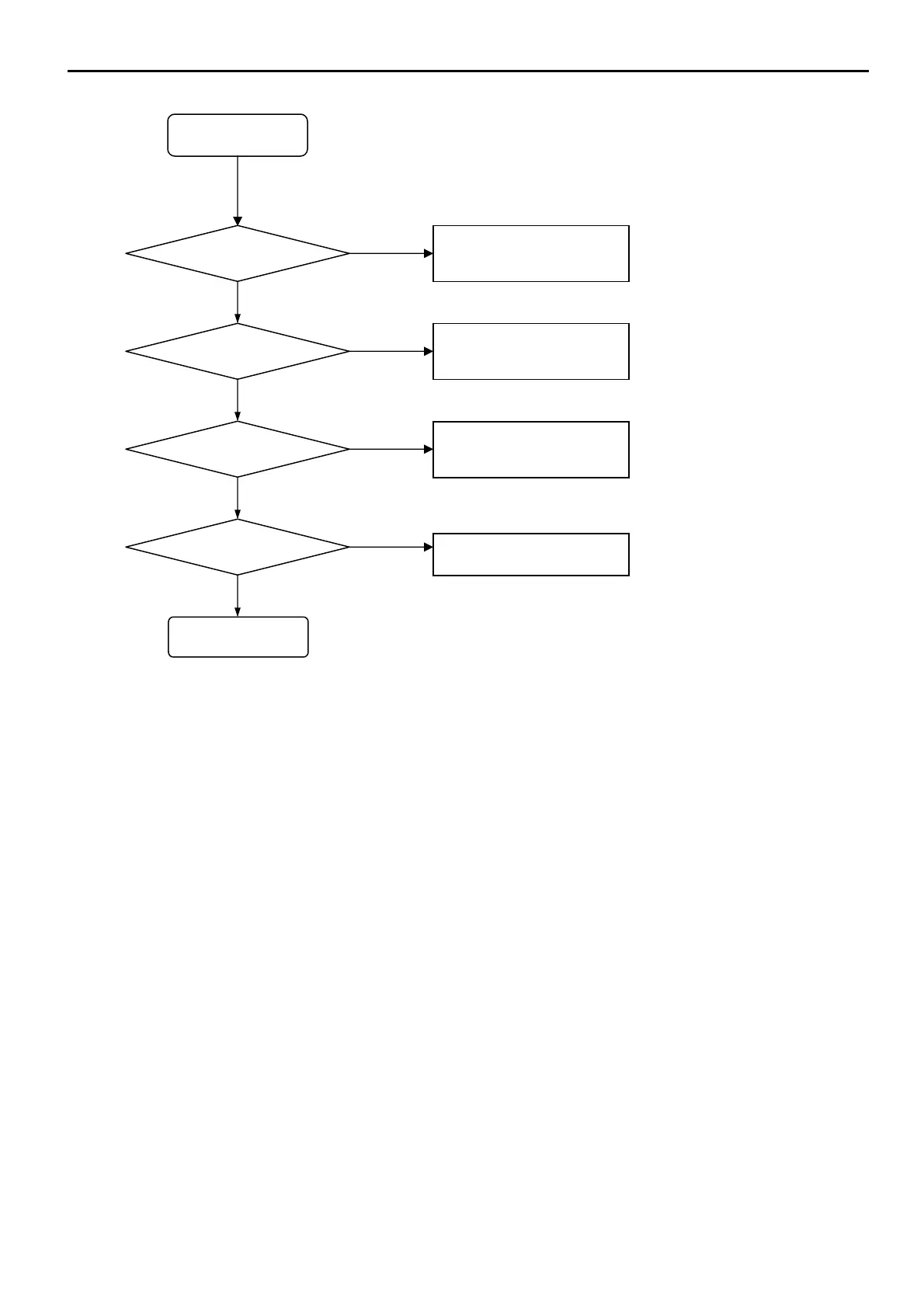

( AUDIO) IS NOT DISPLAY CORRECTLY
Start
Input signal good?
1. Check Audio source
2. Check the player of source
Input correct?
1. Check signal of Main Board
2. Check amplifier (UA1)
Check amplifier OK?
END
Check signal correct?
1. Check MSD8220 audio out,
MSD8220 Pin63~Pin66
1. Check 12V of UA3
.
